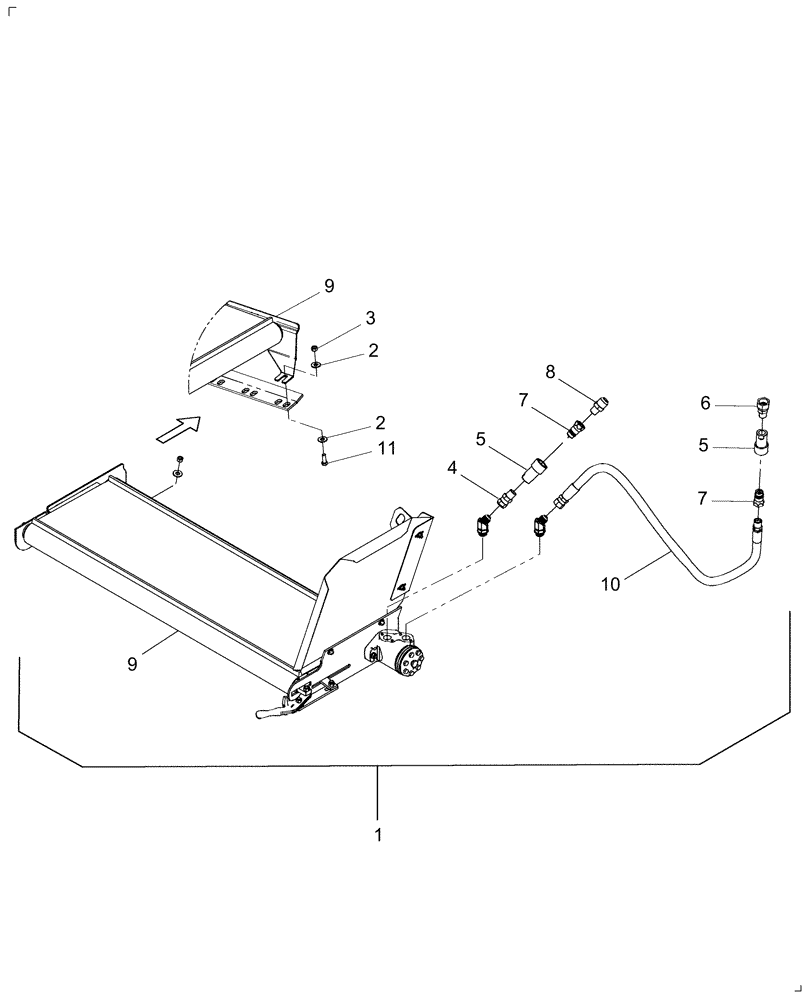

Запчасти Case IH DHX252 (20.02.06[2]) - JUNIOR DECK, DIA KIT (12) - MAIN FRAME

1

87681712

SERVICE KIT

Junior Deck

1шт.

2

80702

WASHER,0.44" ID x 1" OD x 0.08" Thk

2шт.

3

88902

NUT,3/8"-16

1шт.

4

87046617

ADAPTER

1шт.

5

256231

COUPLING, QUICK, FEM

2шт.

6

86620127

FITTING

To Return

1шт.

7

9801618

QUICK MALE COUPLING,1/2" - 14

2шт.

8

86593462

HYD CONNECTOR

From Reel Drive Motor

1шт.

9

87039117

COVER ASSY

1шт.

10

87053582

HYDRAULIC HOSE,0.50" ID x 18.00"

1шт.

11

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.
