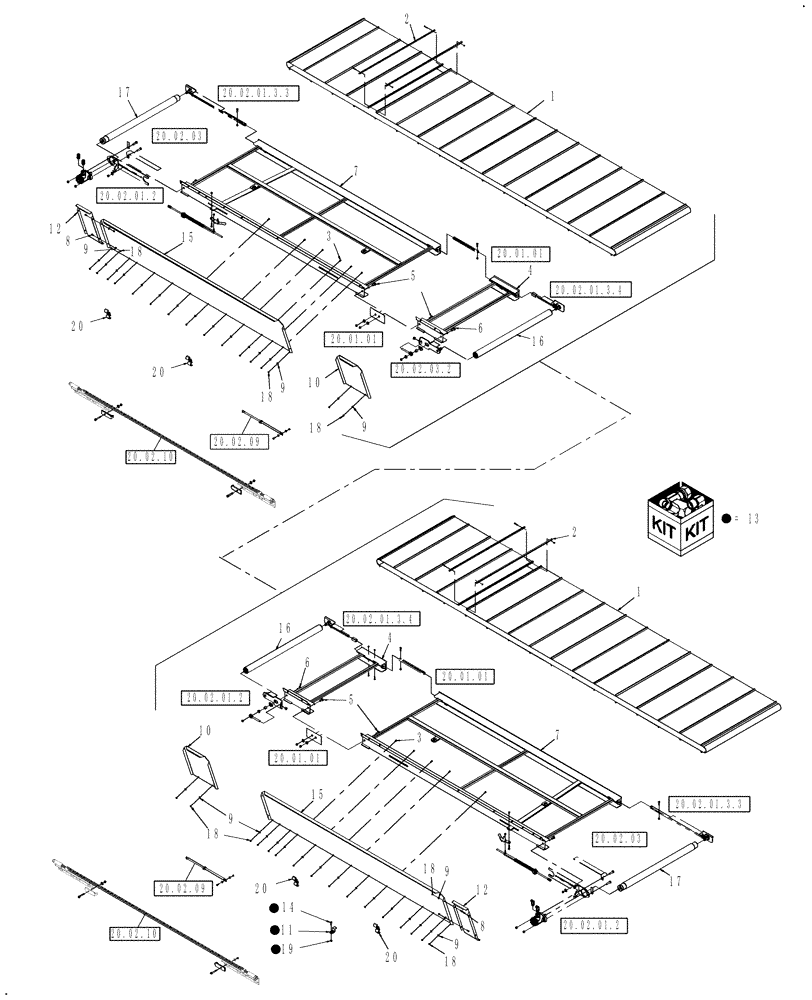

Запчасти Case IH DHX252 (20.02.04[4]) - CANVAS DECK, DHX252 & 302, FROM PIN K01 2005 (12) - MAIN FRAME

1

87038739

CANVAS

42" x 236"

2шт.

DHX252 Only

1шт.

Prior To PIN Y8ZB00545

1шт.

1

87738781

CANVAS

42" x 236", V-Guided, Double Swath

2шт.

DHX252 Only

1шт.

From PIN Y8ZB00545

1шт.

1

84184537

BELT

42" x 236", 24oz., V-Skim, Double Swath

2шт.

DHX252 Only

1шт.

From PIN Y9ZB00735

1шт.

1

84316720

CANVAS

42" x 236", V-FSX, Double Swath

2шт.

DHX252 Only

1шт.

From PIN YAZB00998

1шт.

1

87738782

CANVAS

42" x 208", V-Guided, Single Swath

2шт.

DHX252 Only

1шт.

From PIN Y8ZB00545

1шт.

1

84184536

BELT

42" x 208", 24OZ, V/SKIM, Single Swath

2шт.

DHX252 Only

1шт.

From PIN Y9ZB00735

1шт.

1

84316717

CANVAS

42" x 208", V-FSX, Single Swath

2шт.

DHX252 Only

1шт.

From PIN YAZB00998

1шт.

1

87038811

CANVAS

42" x 300"

2шт.

DHX302 Only

1шт.

Prior To PIN Y8ZB00545

1шт.

1

87738783

CANVAS

42" x 272", V-Guided, Single Swath

2шт.

DHX302 Only

1шт.

From PIN Y8ZB00545

1шт.

1

84184538

BELT

42" x 272", V-Skim, Single Swath

2шт.

DHX302 Only

1шт.

From PIN Y9ZB00735

1шт.

1

84316723

DRAPER,1054.86mm W x 6908.8mm L

40" x 272", V-FSX, Single Swath

2шт.

DHX302 Only

1шт.

From PIN YAZB00998

1шт.

1

87738784

CANVAS

42" x 300", V-Guided, Double Swath

2шт.

DHX302 Only

1шт.

From PIN Y8ZB00545

1шт.

1

84184539

CANVAS

42" x 300", V-Skim, Double Swath

2шт.

From PIN Y9ZB00735

1шт.

DH302 Only

1шт.

1

84316724

CANVAS

42" x 300", V-FSX, Double Swath

2шт.

DHX302 Only

1шт.

From PIN YAZB00998

1шт.

2

86560812

BAR

Canvas Connector

4шт.

3

88832

CARRIAGE BOLT,Sq Nk, 1/4" - 20 x 3/4", Gr 5, Full Thd

1шт.

4

87340300

FRAME

Deck, 14",See Figure Note

2шт.

Prior To PIN Y9ZB00735

1шт.

4

84178217

FRAME

Deck, 14", Built In Groove, See Figure Note

2шт.

From PIN Y9ZB00735

1шт.

4

84386138

FRAME

14", From PIN YAZB01204

2шт.

5

280486

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1", Gr 5, Full Thd

1шт.

6

280420

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 1/2", Gr 5, Full Thd

1шт.

Double Swath Only

1шт.

7

87038709

FRAME

Deck, 84", See Figure Note

2шт.

DHX252 Only

1шт.

Prior To PIN Y9ZB00735

1шт.

7

84136096

FRAME

Deck, 84", Built In Groove, See Figure Note

2шт.

DHX252 Only

1шт.

From PIN Y9ZB00735

1шт.

7

87053502

FRAME

Deck, 118", See Figure Note

2шт.

DHX302 Only

1шт.

Prior To PIN Y9ZB00735

1шт.

7

84136075

ASSEMBLY

Deck, 118", Built In Groove, See Figure Note

2шт.

DHX302 Only

1шт.

From PIN Y9ZB00735

1шт.

8

9707580

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

4шт.

9

80701

WASHER,0.31" ID x 0.73" OD x 0.07" Thk

1шт.

10

86560823

PANEL

2шт.

Double Swath Only

1шт.

11

86560817

CLAMP

1шт.

12

86640026

PANEL

2шт.

Single Swath Units Only

1шт.

13

NLS

NO LONGER SERVICED

1шт.

14

88682

CARRIAGE BOLT,Short Nk, 3/8"-16 x 1", Gr 5

1шт.

15

86640045

PANEL

2шт.

DHX252 Only

1шт.

15

87517407

PANEL

2шт.

DHX302 Only

1шт.

16

87039126

ROLLER

Idler, See 20.02.01[3.1]

2шт.

Prior To PIN Y8ZB00545

1шт.

16

87625000

IDLER

Idler, See 20.02.01[3.1]

2шт.

From PIN Y8ZB00545

1шт.

17

86566165

ROLLER

Drive, See 20.02.01[3.2]

2шт.

Prior To PIN Y8ZB00545

1шт.

17

87624986

ROLLER

Drive, See 20.02.01[3.2]

2шт.

From PIN Y8ZB00545

1шт.

18

280129

NUT,1/4"-20

1шт.

19

88902

NUT,3/8"-16

1шт.
