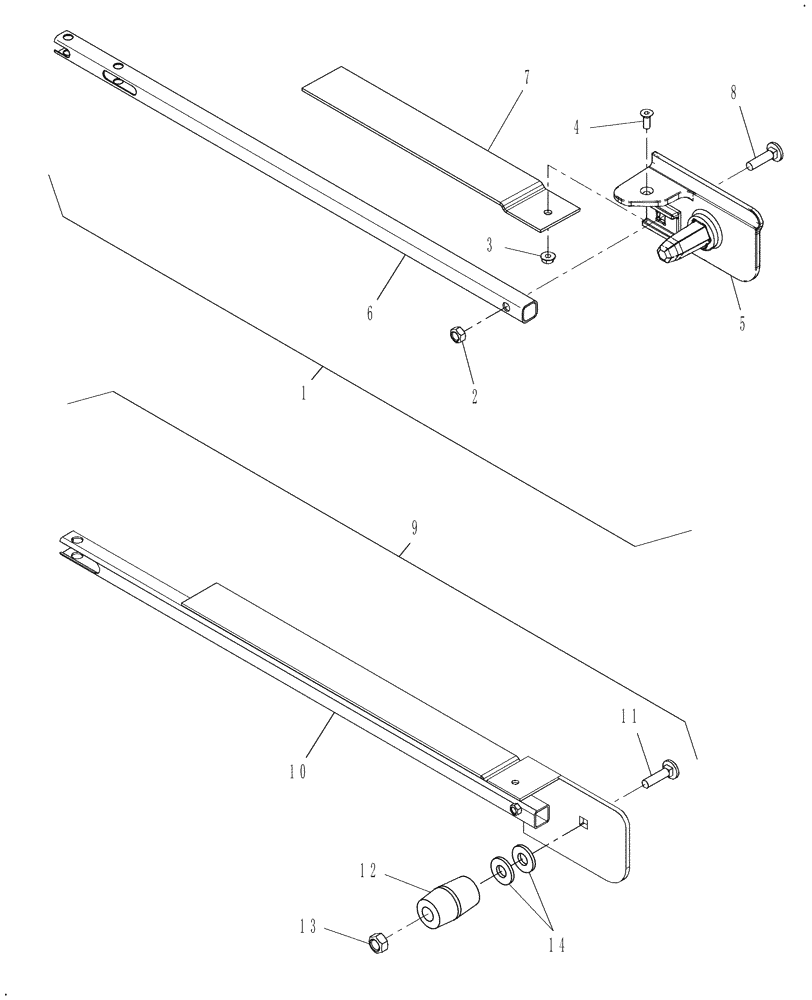

Запчасти Case IH DHX252 (20.02.01[3.3]) - PUSH ROD, ADJUSTABLE (12) - MAIN FRAME

1

87050560

TRUSS ROD

Adjustable, RH

1шт.

Shown

1шт.

Prior To PIN Y8ZB00545

1шт.

1

87050556

TRUSS ROD

Adjustable, LH

1шт.

Prior To PIN Y8ZB00545

1шт.

1

84135790

PUSH ROD

RH, Used W/V-Skim Belt

1шт.

From PIN Y9ZB00735

1шт.

1

84135791

PUSH ROD

LH, Used W/V-Skim Belt

1шт.

Not Shown

1шт.

From PIN Y9ZB00735

1шт.

2

232-4145

LOCK NUT,5/16"-18, GC

1шт.

3

832-46406

NUT,M6 x 1, Cl 8

1шт.

4

86564364

BOLT

M6 x 16

1шт.

5

87050544

IDLER

RH

1шт.

No Longer Serviced Separately

1шт.

Shown

1шт.

5

87050543

IDLER

LH

1шт.

Not Shown

1шт.

No Longer Serviced Separately

1шт.

6

87050547

TUBE,30" L

Adjustable

1шт.

No Longer Serviced Separately

1шт.

7

87050549

RUNNER

Deck

1шт.

No Longer Serviced Separately

1шт.

8

433-520

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 1 1/4", Gr 5

1шт.

9

87629153

PUSH ROD

LH, Used W/V-Guide Belt

1шт.

From PIN Y8ZB00545

1шт.

9

87629169

PUSH ROD

RH, Used W/V-Guide Belt

1шт.

From PIN Y8ZB00545

1шт.

10

87670868

BRACKET

RH

1шт.

10

87670867

BRACKET

LH

1шт.

11

280504

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 2 1/4", Gr 5

1шт.

12

86600612

BOLT

1шт.

13

88871

NUT,1/2"-13, GC

1шт.

14

80700

WASHER,0.56" ID x 1.38" OD x 0.11" Thk

1шт.
