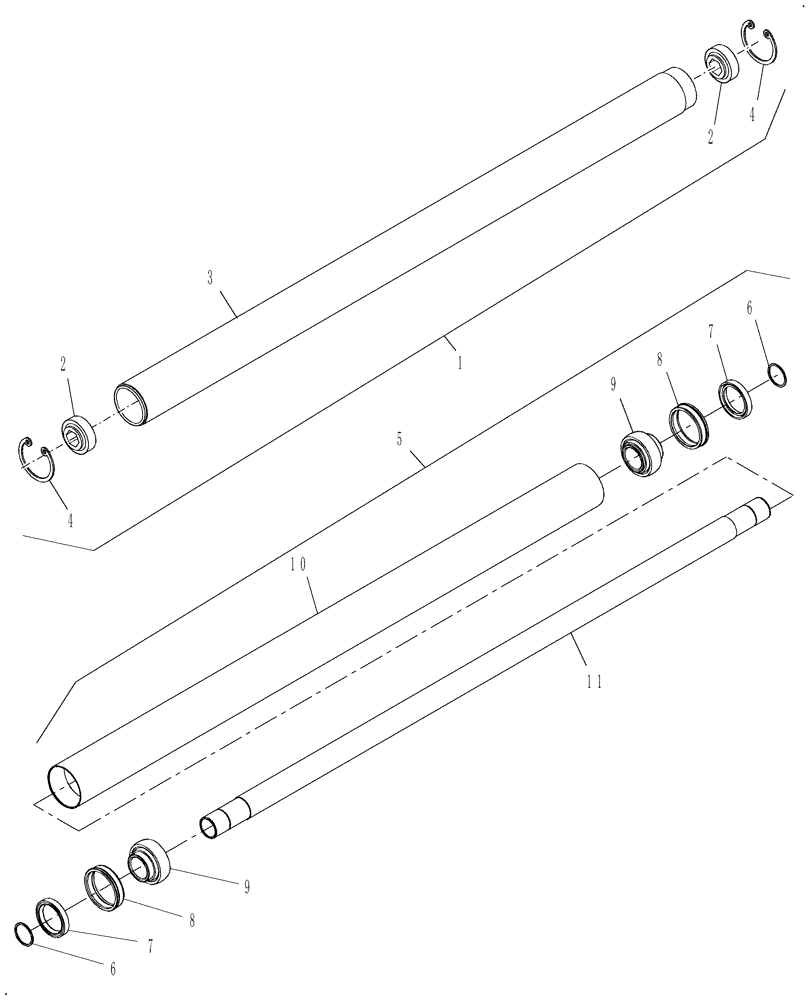

Запчасти Case IH DHX252 (20.02.01[3.1]) - IDLER ROLLER (12) - MAIN FRAME

1

86560835

ROLLER

Idler Assembly, Standard

1шт.

Prior To PIN K01 2007

1шт.

1

87039126

ROLLER

Idler Assembly, Junior Deck

1шт.

Prior To PIN K01 2007

1шт.

2

49436

BALL BEARING,22.25mm Hex x 52mm OD x 25.41mm W

Hex

2шт.

Prior To PIN K01 2007

1шт.

3

86560947

ROLLER

Idler, 41-7/8" L, Used W/86560835

1шт.

Prior To PIN K01 2007

1шт.

3

87039127

IDLER

Roller, Junior Deck, 40-3/4" L

1шт.

Prior To PIN K01 2007

1шт.

4

100-21200

SNAP RING,2", Int, #200

2шт.

Prior To PIN K01 2007

1шт.

5

87625000

IDLER

1шт.

From PIN K01 2007

1шт.

6

102-13150

SNAP RING

2шт.

From PIN K01 2007

1шт.

7

87625076

SEAL

2шт.

From PIN K01 2007

1шт.

8

87625065

SEAL RETAINER

2шт.

From PIN K01 2007

1шт.

9

87625075

ROLLER BEARING,31.75mm ID x 61.91mm OD

2шт.

From PIN K01 2007

1шт.

10

87625064

ROLLER

1шт.

From PIN K01 2007

1шт.

11

87625063

ROLLER

1шт.

From PIN K01 2007

1шт.
