Запчасти Case IH DHX252 (20.01.15) - BALLAST PLATES (12) - MAIN FRAME

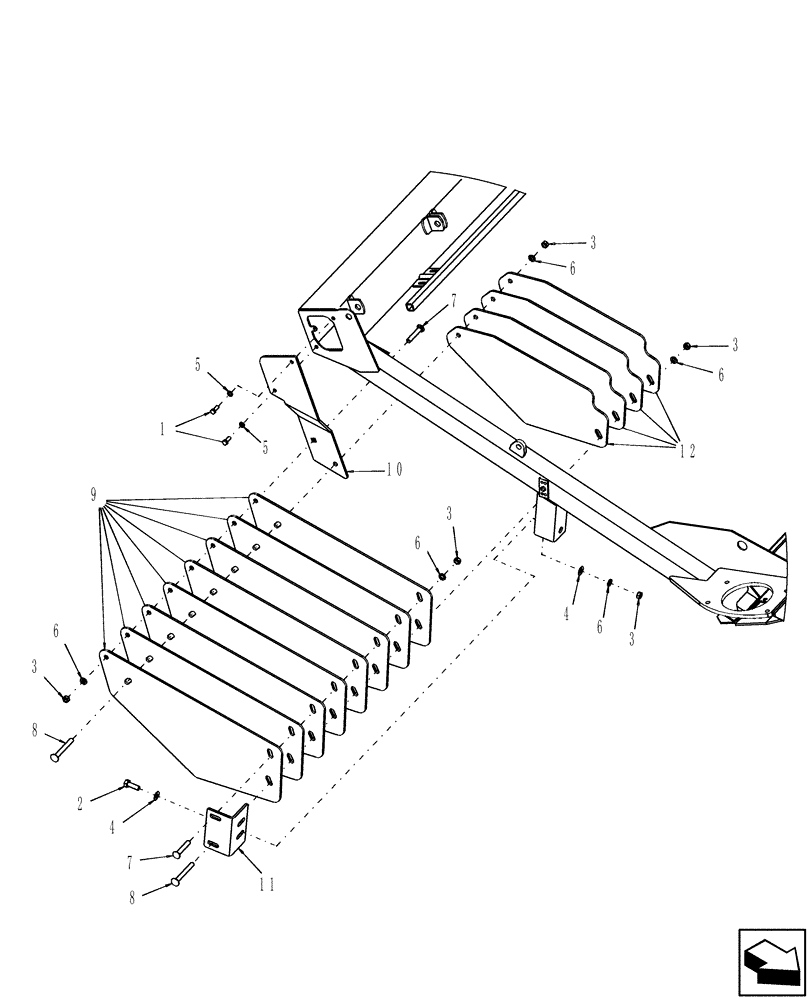

Схема запчастей Case IH DHX252 - (20.01.15) - BALLAST PLATES (12) - MAIN FRAME
6
9
5
3
3
3
12
8
3
7
1
5
2
11
4
3
6
7
4
6
6
8
10
6

Артикул

Название

Примечание

Количество

1

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

2

87689

BOLT,1/2"-13 x 1.813" OAL, Gr 5

1шт.

3

280431

NUT,1/2"-13, G5

5шт.

4

80700

WASHER,0.56" ID x 1.38" OD x 0.11" Thk

2шт.

5

80680

LOCK WASHER,3/8 0.381 CST ZND

2шт.

6

80679

LOCK WASHER,1/20.507 CST ZND

5шт.

7

87868

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 1/4", Gr 5, Full Thd

2шт.

Used W/Single Plate Assembly

1шт.

7

280420

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 1/2", Gr 5, Full Thd

2шт.

Used W/2 Plate Assembly

1шт.

7

88530

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 3/4", Gr 5

2шт.

Used W/3 Plate Assembly

1шт.

7

280185

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 2", Gr 5

2шт.

Used W/4 Plate Assembly

1шт.

7

280818

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 3", Gr 5

2шт.

Used W/8 Or 12 Plate Assembly

1шт.

8

87868

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 1/4", Gr 5, Full Thd

2шт.

Used W/Single Plate Assembly

1шт.

8

280420

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 1/2", Gr 5, Full Thd

2шт.

Used W/2 Plate Assembly

1шт.

8

88530

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 3/4", Gr 5

2шт.

Used W/3 Plate Assembly

1шт.

8

280185

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 2", Gr 5

2шт.

Used W/4 Plate Assembly

1шт.

8

280818

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 3", Gr 5

2шт.

Used W/8 Plate Assembly

1шт.

8

86637561

BOLT

2шт.

Used W/12 Plate Assembly

1шт.

9

87395715

PLATE

Ballast, Outer

1шт.

See Figure Note For Quantity

1шт.

10

87395716

COVER PLATE

End Cap, Ballast

1шт.

11

87395717

BRACKET

1шт.

12

87395724

PLATE

Ballast, Inner

1шт.

(4) Used Only On DHX212 W/Double Swath, Single Knife

1шт.

Выбрано товаров: 34
