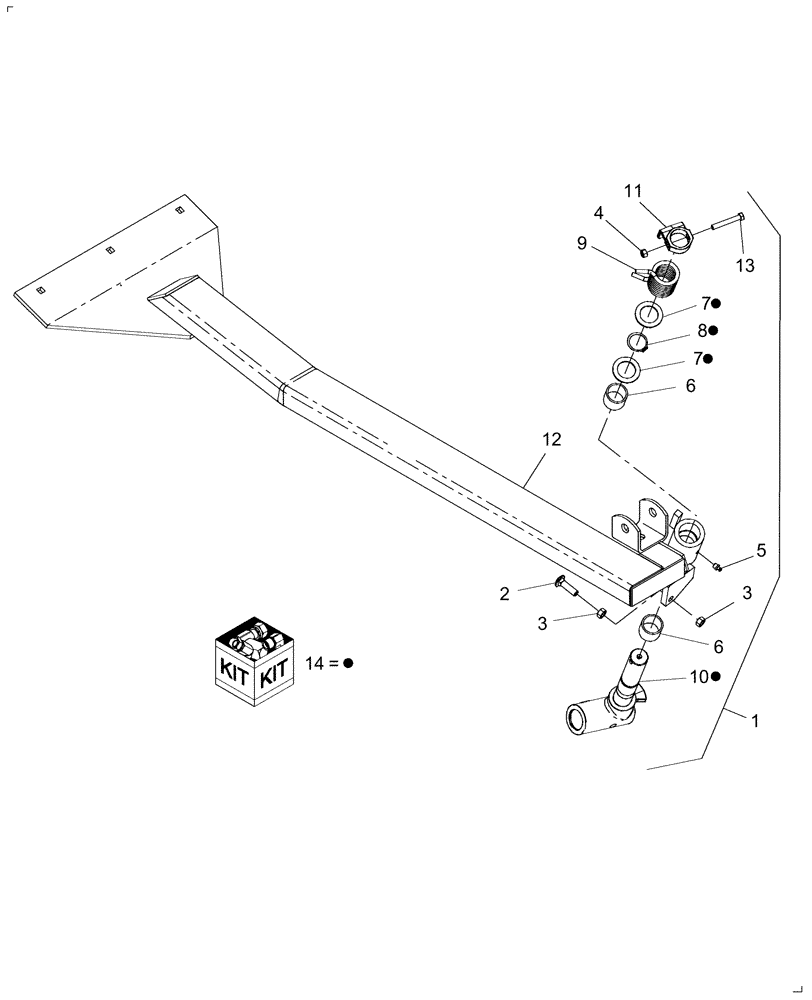

Запчасти Case IH DHX252 (20.03.09[3]) - GAUGE WHEEL, FROM PIN A19 2006 (11) - WHEELS

1

87057527

ARM

Arm, Control, RH; Includes: Ref.s 2 Thru 13

1шт.

For Mounting Hardware, See Fig. 20.03.09[1]

1шт.

Shown

1шт.

1

87057526

ARM

Arm, Control, LH; Includes: Ref.s 2 Thru 13

1шт.

Not Shown

1шт.

For Mounting Hardware, See Fig. 20.03.09[1]

1шт.

2

88530

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 3/4", Gr 5

1шт.

3

280431

NUT,1/2"-13, G5

2шт.

4

88902

NUT,3/8"-16

1шт.

5

80710

LUBE NIPPLE,1/8” – 27 Dryseal PTF

1шт.

6

86565469

BUSHING

2шт.

7

86562072

BUSHING

2шт.

8

133066

SNAP RING,#150, Ext

1шт.

9

86565470

SPRING

1шт.

Used In Assembly 87057527

1шт.

9

86565471

SPRING

1шт.

Used In Assembly 87057526

1шт.

10

87531674

PIN

1шт.

11

87559977

COLLAR

1шт.

12

87057525

ARM ASSY.

RH

1шт.

Used In Assembly 87057527

1шт.

12

87057524

ARM ASSY.

LH

1шт.

Used In Assembly 87057526

1шт.

13

87936

BOLT,Hex, 3/8" - 16 x 2 1/2", Gr 5

1шт.

14

87531674

PIN

Kit, Repair

1шт.
