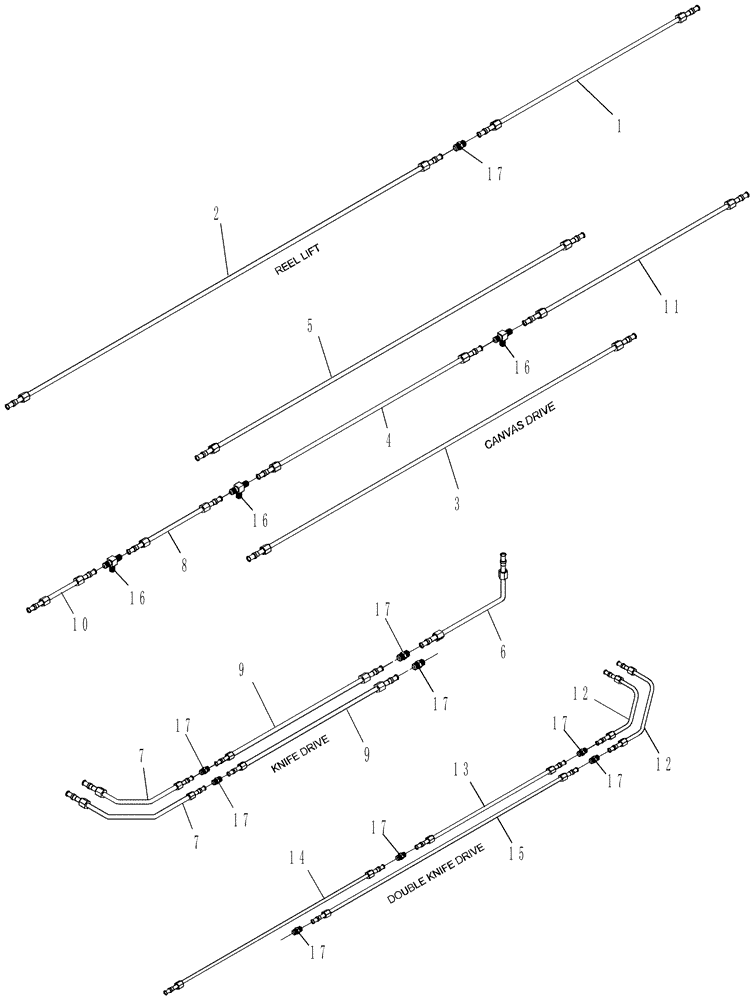

Запчасти Case IH DHX252 (20.07.08[2]) - STEEL LINES, DOUBLE SWATH (07) - HYDRAULICS

1

86563523

HYD TUBE

3/8" x 42"

1шт.

DHX252 Only

1шт.

1

86563811

HYD TUBE,0.375" DIA x 102" L

3/8" x 102"

1шт.

DHX302 Only

1шт.

2

86563832

HYD TUBE,0.375" OD x 234" L

3/8" x 234"

1шт.

DHX212 Only

1шт.

2

86563525

HYD TUBE,0.375" DIA x 240" L

3/8" x 240"

1шт.

DHX252 & DHX302 Only

1шт.

3

86563644

HYD TUBE,0.75" DIA x 126" L

1шт.

4

87052002

HYD TUBE,0.75" DIA x 77" L

3/4" x 77"

1шт.

5

86563555

HYD TUBE,0.75" DIA x 94" L

3/4" x 94"

1шт.

6

86592556

HYD TUBE

3/4" x 21"

1шт.

7

87015356

HYD TUBE,0.75" OD x 44" L

3/4" x 44"

2шт.

8

86976057

HYD TUBE,0.75" ID x 24.00" L

3/4" x 24"

1шт.

9

86563687

HYD TUBE,0.75" DIA x 26" L

3/4" x 26"

2шт.

DHX212 Only

1шт.

9

87015361

HYD TUBE,0.75" OD x 50" L

3/4" x 50"

2шт.

DHX252 Only

1шт.

9

87015357

HYD TUBE,0.75" OD x 80" L

3/4" x 80"

2шт.

DHX302 Only

1шт.

10

87025538

HYD TUBE,0.75" DIA x 14" L

3/4" x 14"

1шт.

11

87052003

HYD TUBE,0.75" DIA x 71" L

3/4" x 71"

1шт.

DHX212 Only

1шт.

11

87058336

HYD TUBE,0.75" DIA x 95" L

3/4" x 95"

1шт.

DHX252 Only

1шт.

11

86563690

HYD TUBE,0.75" DIA x 125" L

3/4" x 125"

1шт.

DHX302 Only

1шт.

12

87030027

HYD TUBE,0.75" OD x 44" L

3/4" x 44"

2шт.

13

87052678

HYD TUBE,0.75" DIA x 28" L

3/4" x 28"

1шт.

DHX302 Only

1шт.

14

87030029

HYD TUBE,0.75" DIA x 216" L

3/4" x 216"

1шт.

DHX212 Only

1шт.

14

86597892

HYD TUBE,0.75" DIA x 240" L

3/4" x 240"

1шт.

DHX252 & DHX302 Only

1шт.

15

87052184

HYD TUBE,0.75" DIA x 180" L

3/4" x 180"

1шт.

DHX212 Only

1шт.

15

87052677

HYD TUBE,0.75" DIA x 202" L

3/4" x 202"

1шт.

DHX252 Only

1шт.

15

86563688

HYD TUBE,0.75" DIA x 236" L

3/4" x 236"

1шт.

DHX302 Only

1шт.

16

80015694

TEE,1 1/16"-12 37 Degree

1шт.

17

86563521

HYD CONNECTOR

1шт.
