Запчасти Case IH DHX252 (20.03.01[2]) - WIRE HARNESS, DOUBLE SWATH (06) - ELECTRICAL

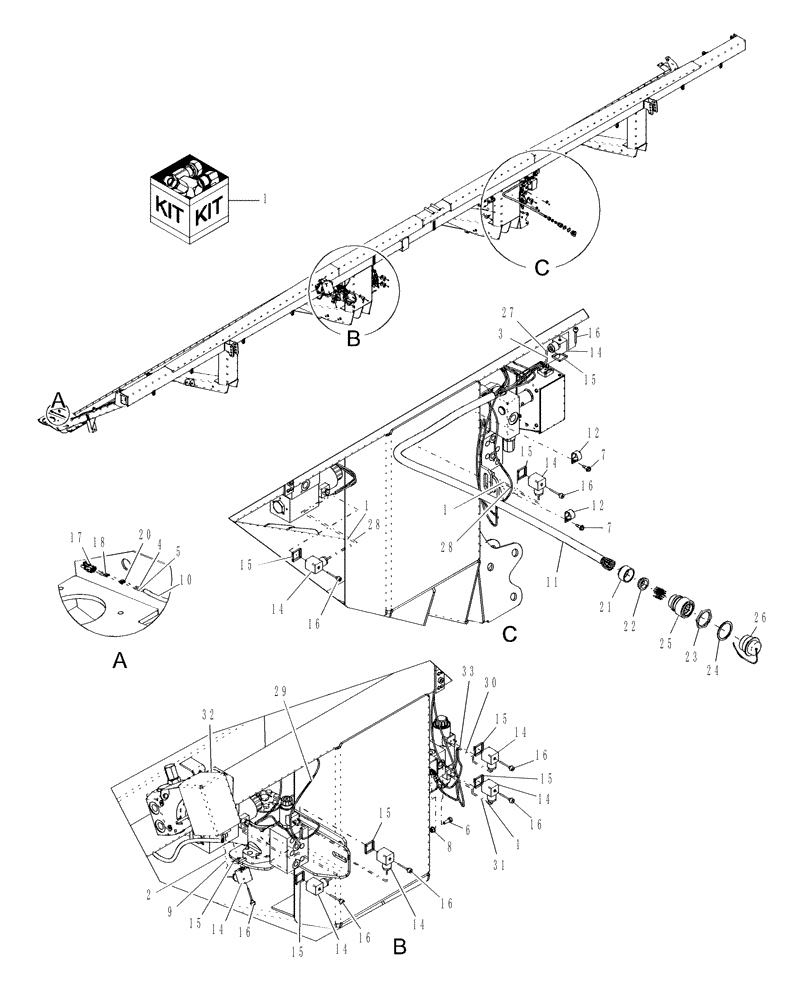

Схема запчастей Case IH DHX252 - (20.03.01[2]) - WIRE HARNESS, DOUBLE SWATH (06) - ELECTRICAL
23
14
9
30
14
12
8
14
17
16
7
26
6
16
2
28
15
16
16
16
15
7
1
16
15
4
1
20
21
15
11
7
18
24
14
10
14
14
33
12
29
5
16
15
27
14
25
32
1
22
1
12
15
15
16
14
28
31
3
15

Артикул

Название

Примечание

Количество

1

87053103

HARNESS

Harness; Includes: Ref.s 2 Thru 33

1шт.

2

NS

NOT SERVICED

Wire, 16GA, 228" (Black)

1шт.

3

NS

NOT SERVICED

Wire, 16GA, 54" (Orange)

1шт.

4

NS

NOT SERVICED

Wire, 16GA, 390" (Blue)

1шт.

5

NS

NOT SERVICED

Wire, 16GA, 390" (Brown)

1шт.

6

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

1шт.

7

590424

SELF-TAP SCREW

HWH, S#2 Pt, #12 x 3/4"

2шт.

8

231-5344

FLANGE NUT,Flg, 1/4"-20

1шт.

9

NS

NOT SERVICED

Wire, 16GA, 228" (Red)

1шт.

10

NS

NOT SERVICED

Loom, Plastic, 3/8" Split, 114"

1шт.

11

87696457

HARNESS

Double Swath Harness

1шт.

12

9706732

CLAMP,19mm ID, 8.7mm Bolt Hole, P Type

2шт.

13

NS

NOT SERVICED

Ring, 1/4, Insu 16-14 V/FL

9шт.

14

86593440

ELEC CONNECTOR

Hirschmann

8шт.

15

86599763

GASKET

Hirschmann

8шт.

16

86599764

SCREW

Hirschmann

8шт.

17

87053923

HYD CONNECTOR

Housing, Male, W/Seal

1шт.

18

87053924

TERMINAL CONNECTOR,Female

16-14 Female

2шт.

19

86634715

ELEC. TERMINAL PIN

Male, Deutsch

13шт.

20

86626320

SEAL

Dust, Green

2шт.

21

86634924

CAP

1шт.

22

86634925

SEAL

Dust

1шт.

23

86619907

NUT,1.6875"-18

Plastic

1шт.

24

636665

LOCK WASHER,43.18mm ID x 52.68mm OD x 1.57mm Thk

1шт.

25

87053926

PLUG

21 Pin, Deutsch

1шт.

26

87053925

CAP COVER

1шт.

27

NS

NOT SERVICED

Wire, 16GA, 54" (Green/Yellow)

1шт.

28

NS

NOT SERVICED

Wire, 16GA, 108" (Gray)

1шт.

29

NS

NOT SERVICED

Wire, 16GA, 204" (Light Blue)

1шт.

30

NS

NOT SERVICED

Wire, 16GA, 174" (Pink)

1шт.

31

NS

NOT SERVICED

Wire, 16GA, 174" (Purple)

1шт.

32

86599760

CONTROL UNIT

Refer To Component Breakdown, Fig. 20.03.05

2шт.

33

NS

NOT SERVICED

Wire, 16GA, 330" (White)

1шт.

Выбрано товаров: 33
