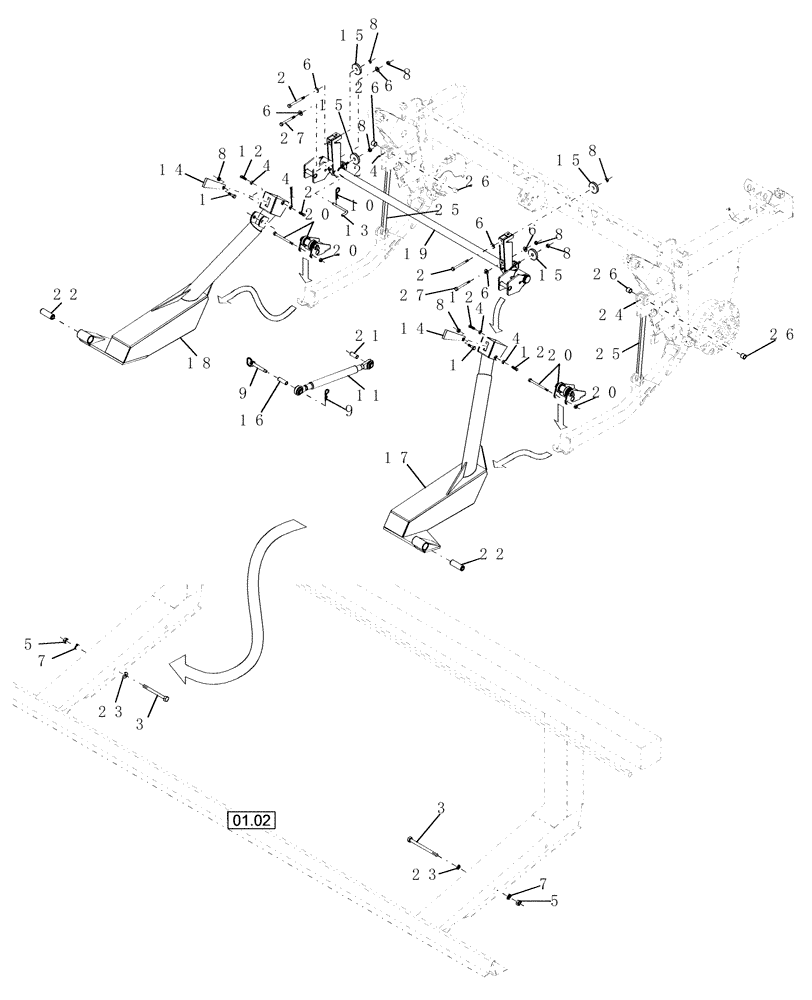

Запчасти Case IH DHX251 (3.04[1]) - LIFT ARM ADAPTION, WINDROW, WDX901 & WDX1101 (13) - REEL

1

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

2шт.

2

413-880

BOLT,Hex, 1/2" - 13 x 5", Gr 5

Cap, HH, G5, 1/2"-13 x 5"

2шт.

3

413-12128

BOLT,Hex, 3/4" - 10 x 8", Gr 5

Cap, HH, G5, 5/8"-11 x 8"

2шт.

4

425-108

NUT,1/2" - 13, Gr 5

4шт.

5

25-1610

NUT,5/8"-11, G5, Hvy

Heavy, G5, 5/8"-11

2шт.

6

495-21056

WASHER,1/2"

6шт.

7

492-11062

BEARING WASHER,5/8"

2шт.

8

232-4148

NUT,1/2"-13, GC

8шт.

9

86563633

PIN

Hitch, 3/4"

1шт.

10

86595671

PIN

Cotter, #9

1шт.

11

86587756

LIFT LINK

Top Assembly

1шт.

12

485-15024

SET SCREW,Sq Hd, 1/2"-13 x 1 1/2"

Set, Sq Hd, Cup Pt, 1/2"-13 x 1-1/2"

4шт.

13

86565138

LOCK PIN

Reel Mount

1шт.

14

86587757

PLATE

Wedge

2шт.

15

86587758

PLATE

Clamp

4шт.

16

86639761

SPACER

2шт.

17

87059597

ARM

Lift, LH; Includes: Ref. 22

1шт.

18

87059598

ARM

Lift, RH; Includes: Ref. 22

1шт.

19

86587762

TORSION BAR

1шт.

20

0C

ORDER COMPONENTS

Roller Assembly, See Figure 3.04A

2шт.

21

86639761

SPACER

1шт.

22

86626024

RUBBER BUSHING

2шт.

23

495-21069

WASHER,5/8"

2шт.

24

219-1

LUBE NIPPLE,1/8" - 27 NPTF

2шт.

25

87013521

LIFT LINK

Straight

2шт.

26

86540300

BUSHING

4шт.

27

413-872

BOLT,Hex, 1/2" - 13 x 4-1/2", Gr 5

Cap, HH, G5, 1/2"-13 x 4-1/2"

2шт.
