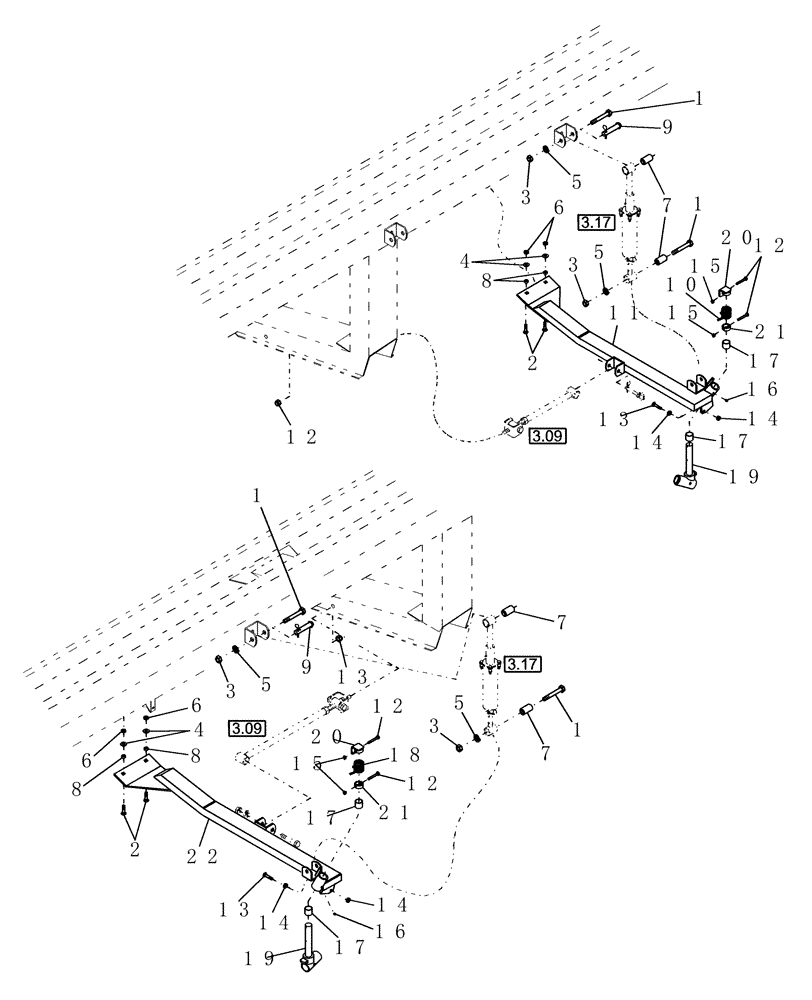

Запчасти Case IH DHX251 (3.10[1]) - GAUGE WHEEL 25 FT, PRODUCTION (11) - WHEELS

1

88007

BOLT,Hex, 3/4" - 10 x 4 1/2", Gr 5

4шт.

BSN H24 2000

1шт.

2

280420

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 1/2", Gr 5, Full Thd

Carriage, G5, 1/2"-13 x 1-1/2"

4шт.

3

280954

NUT,3/4"-10, G5

6шт.

4

80700

WASHER,0.56" ID x 1.38" OD x 0.11" Thk

4шт.

5

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

6шт.

6

88871

NUT,1/2"-13, GC

4шт.

7

86565458

DRIVE BUSHING

4шт.

8

86563235

SPACER

4шт.

9

86563633

PIN

Hitch

2шт.

ASN H24 2000

1шт.

10

86565470

SPRING

Torque, RH

1шт.

11

86565475

ARM

Control, RH

1шт.

12

87936

BOLT,Hex, 3/8" - 16 x 2 1/2", Gr 5

4шт.

13

88530

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 3/4", Gr 5

2шт.

14

280431

NUT,1/2"-13, G5

4шт.

15

88902

NUT,3/8"-16

4шт.

16

80710

LUBE NIPPLE,1/8” – 27 Dryseal PTF

2шт.

17

86565469

BUSHING

Bronze

4шт.

18

86565471

SPRING

Torque, LH

1шт.

19

86565472

PIN

King, Gauge Wheel

2шт.

20

86565473

COLLAR

Torque Spring

2шт.

21

86565474

COLLAR

King Pin

2шт.

22

86565476

ARM

Control, LH

1шт.
