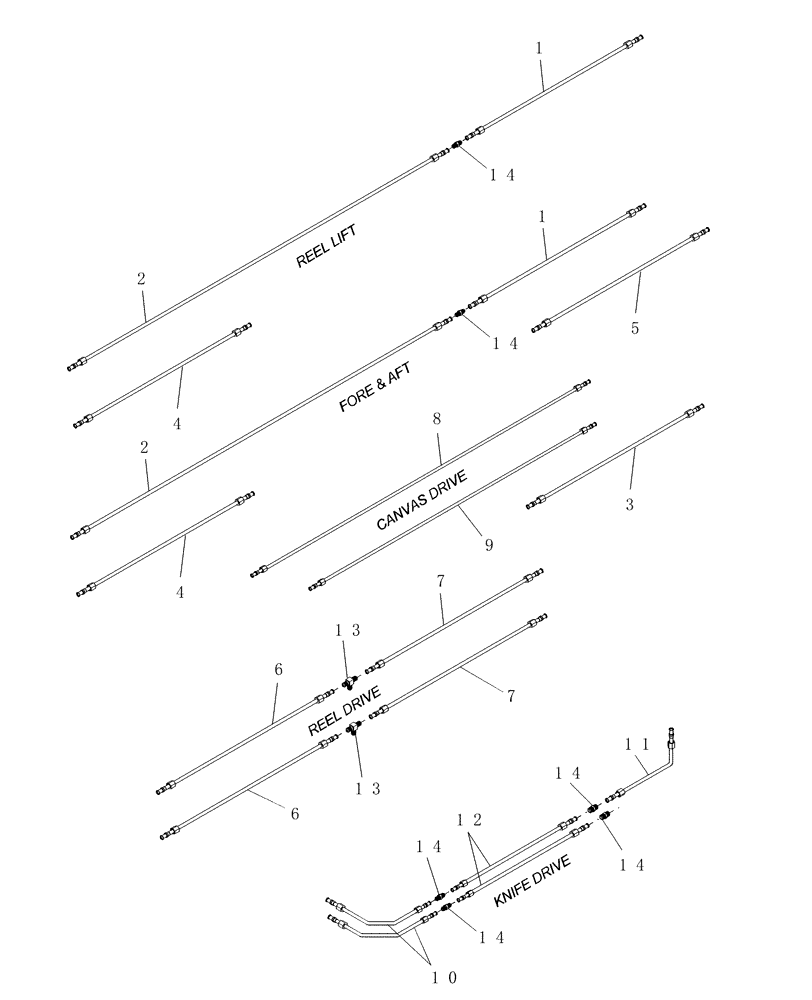

Запчасти Case IH DHX251 (7.09[3.2]) - STEEL LINES, 25 FT, DOUBLE SWATH; FROM PIN K01 2002 (07) - HYDRAULICS

1

86563523

HYD TUBE

3/8" x 42"

2шт.

2

86563525

HYD TUBE,0.375" DIA x 240" L

3/8" x 240"

2шт.

3

86563683

HYD TUBE,0.75" DIA x 120" L

3/4" x 120"

1шт.

4

86563526

HYD TUBE,0.375" DIA x 70" L

2шт.

5

86563529

HYD TUBE,0.375" DIA x 88" L

1шт.

6

86563532

HYD TUBE,0.75" OD x 141" L

2шт.

7

86563533

HYD TUBE,0.75" DIA x 63" L

2шт.

8

86563846

HYD TUBE,0.75" DIA x 93" L

1шт.

Prior To PIN E01 2003

1шт.

8

86976058

HYD TUBE,0.75" x 70" L

1шт.

From PIN E01 2003

1шт.

9

86563690

HYD TUBE,0.75" DIA x 125" L

3/4" x 125"

1шт.

10

87015356

HYD TUBE,0.75" OD x 44" L

3/4" x 44"

2шт.

11

86976059

HYD TUBE,0.75" DIA x 22.87", 2.50" L

1шт.

12

87015361

HYD TUBE,0.75" OD x 50" L

3/4" x 50"

2шт.

13

15694

TEE,1 1/16"-12 37 Degree

2шт.

14

86563521

HYD CONNECTOR

6шт.
