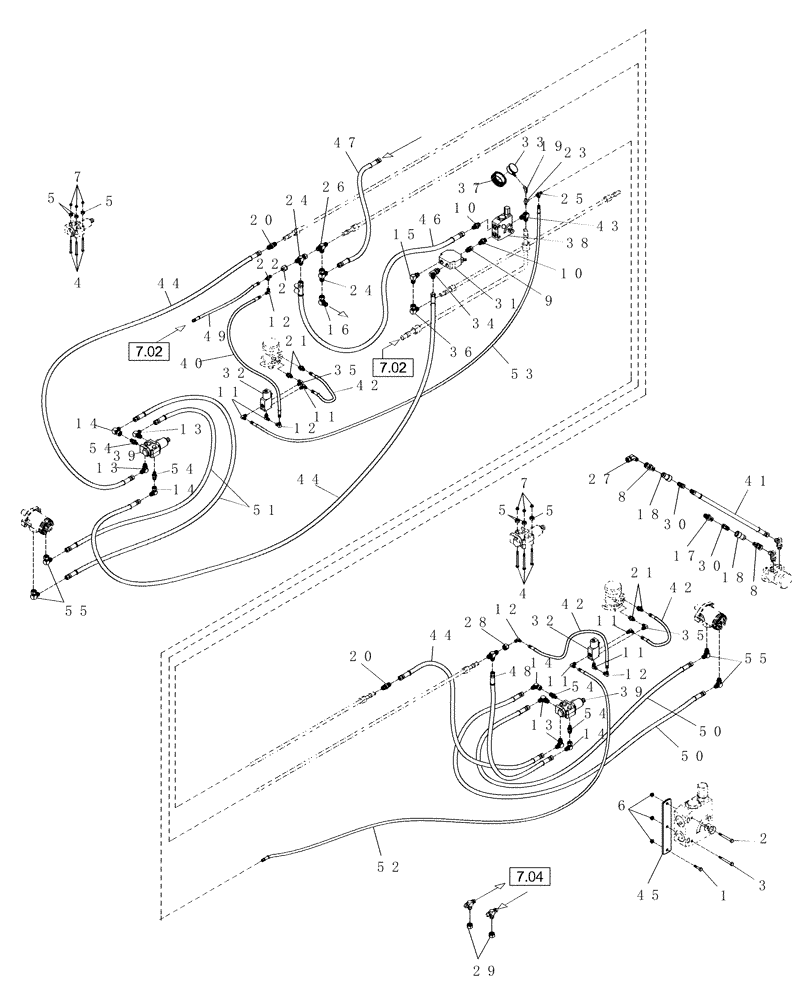

Запчасти Case IH DHX251 (7.07[1.2]) - HYDRAULICS, DOUBLE SWATH, 25 FT, FROM PIN E01 2003 (07) - HYDRAULICS

1

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

1шт.

2

413-436

BOLT,Hex, 1/4" - 20 x 2-1/4", Gr 5

1шт.

3

413-440

BOLT,Hex, 1/4" - 20 x 2-1/2", Gr 5

1шт.

4

413-556

BOLT,Hex, 5/16" - 18 x 3-1/2", Gr 5

Cap, HH, G5, 5/16"-18 x 3-1/2"

6шт.

5

425-108

NUT,1/2" - 13, Gr 5

6шт.

6

231-5344

FLANGE NUT,Flg, 1/4"-20

3шт.

7

231-5345

FLANGE NUT,Flg, 5/16"-18

LOCK, Flg, G5, 5/16"-18

6шт.

8

87046617

ADAPTER

Swivel

2шт.

9

86563540

ADAPTER

1шт.

10

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

Male, 7/8"-14, Flare x 7/8"-14, W/O-Ring

2шт.

10

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

2шт.

11

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

90°, 37°, O-Ring, 3/8" Tube; Includes: O-Ring

6шт.

12

218-980

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree Fem Sw

4шт.

13

218-5120

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 1-1/16" - 12 Male ORB

3/4", 37° Flare, 90° Elbow, Straight Thread O-Ring; Includes: O-Ring

4шт.

13

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

4шт.

14

218-5232

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree Fem Sw

-10 90°, 7/8"-14 Flare Male x Swivel Flare Female

4шт.

15

218-5123

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

90°-12-10, 37-OR

1шт.

15

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

16

218-5231

ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree Fem Sw

1шт.

17

87046619

HYD CONNECTOR

1шт.

18

86564904

COUPLING

Quick Disconnectr, 1/2" Female

2шт.

19

217-1085

ELBOW,45 Degree, 1/4"-18 Female x 1/4"-18 Male

1шт.

20

86563542

HYD CONNECTOR

Nipple

2шт.

21

218-5354

HYD CONNECTOR,9/16"-18, 37 Degree x 7/8"-14, O-Ring

4шт.

21

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

4шт.

22

218-5222

TEE,37 Degree, 9/16"-18, x 9/16"-18, Fem Sw Run

1шт.

23

86566528

3 WAY CONNECTION

1шт.

24

218-5221

TEE,37 Degree, 1 1/16"-12 x 1 1/16"-12, Fem Sw Run

2шт.

25

86639967

TEE

4MP x 6 37° x -6 37°

1шт.

26

218-596

TEE,1 1/16"-12 37 Degree

Tee-12, 37 Union

2шт.

27

86593457

ELBOW

45°

1шт.

28

86563543

ADAPTER

6MJ x 12FJ

2шт.

29

218-335

CAP,37 Degree, 1 1/16"-12

2шт.

30

86564905

COUPLING

Quick, 1/2"

2шт.

31

86563544

DIVIDER

Flow

1шт.

32

86593460

DIVIDER

Flow

2шт.

33

86563546

GAUGE

1шт.

34

218-5137

ELBOW,45 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

45°, 5/8"; Incl. O-Ring

1шт.

34

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

35

87046618

ELBOW

Swivel

2шт.

36

86595627

ELBOW

90°, 12MJO-12FJ SW

1шт.

37

87033323

COVER

Gauge

1шт.

38

87042501

CONTROL

Draper Flow, 20 GPM

1шт.

39

87046543

VALVE

FPS

2шт.

40

86599674

HYDRAULIC HOSE

1шт.

41

87046534

HYDRAULIC HOSE,0.50" ID x 12.00"

1шт.

42

86593472

HOSE

3шт.

43

86563548

ELBOW

C/W Gauge Hole

1шт.

44

86563549

HYDRAULIC HOSE,0.50" ID x 22.00"

3шт.

45

86593486

MOUNTING PLATE

1шт.

46

86563552

HYDRAULIC HOSE,12.70 mm ID x 660.40 mm

2шт.

47

86593478

HOSE

1шт.

48

87045083

HYDRAULIC HOSE,14.00"

1шт.

49

87015268

HOSE,6.35 mm ID x 2895.60 mm

1шт.

50

87025566

HOSE,12.70 mm ID x 3149.60 mm

2шт.

51

87025567

HOSE,114.00"

2шт.

52

87046539

HYDRAULIC HOSE,0.38" ID x 124.00"

1шт.

53

87046540

HYDRAULIC HOSE,0.38" ID x 18.00"

1шт.

54

87046541

FITTING

4шт.

55

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

4шт.

11

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6шт.
