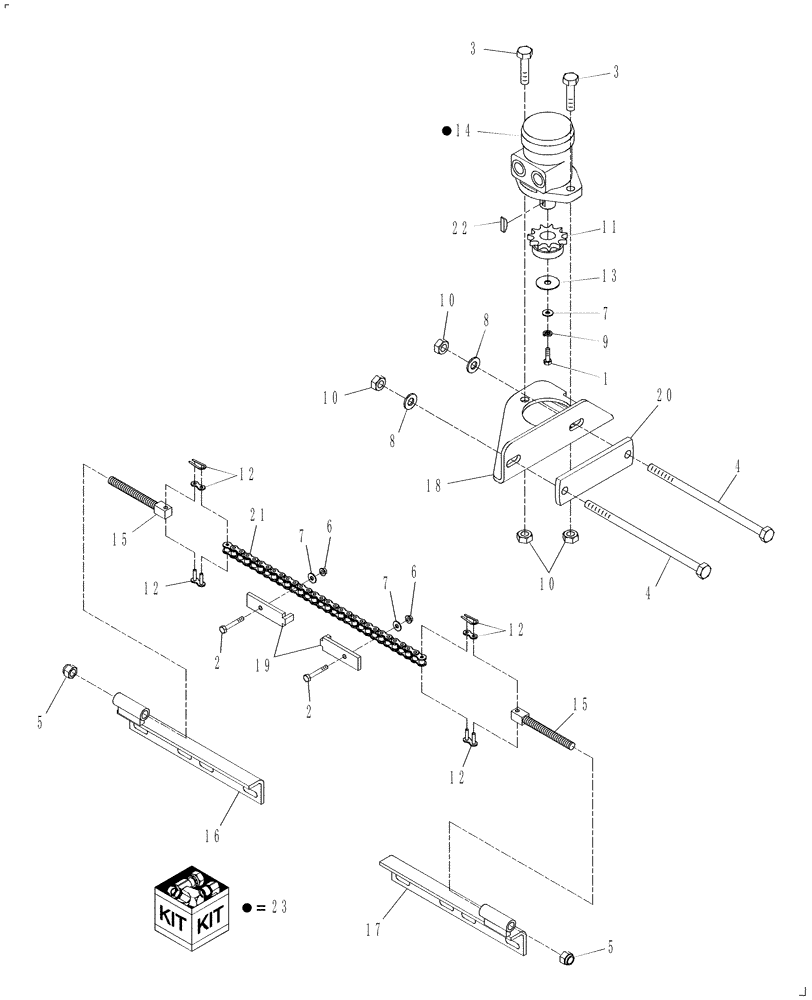

Запчасти Case IH DHX251 (2.10) - HYDRAULIC DECK SHIFT, DOUBLE SWATH, 25 & 30FT (07) - HYDRAULICS

1

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

1шт.

2

413-424

BOLT,Hex, 1/4" - 20 x 1-1/2", Gr 5

2шт.

3

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

2шт.

4

413-8144

BOLT,Hex, 1/2" - 13 x 9", Gr 5

HH, G5, 1/2"-13 x 9"

2шт.

5

80566

NUT

G5, 1/2"-13

2шт.

6

231-5344

FLANGE NUT,Flg, 1/4"-20

2шт.

7

495-21031

WASHER,1/4"

3шт.

8

495-11053

WASHER,1/2", SAE

2шт.

9

492-11025

LOCK WASHER,1/4"

1шт.

10

232-4148

NUT,1/2"-13, GC

4шт.

11

86561222

SPROCKET

1шт.

12

165590

CONNECTING LINK

Roller, RC 60, Spring Style

2шт.

13

86563879

WASHER

Fender, 3/8"

1шт.

14

86561223

HYDRAULIC MOTOR

315cc DANFOSS, Superceding To White 320cc

1шт.

14

84188425

HYDRAULIC MOTOR

320cc DANFOSS, W/Ref 1, 7, 9, 11 & 13

1шт.

15

86561224

ADJUSTER

Chain, Tightener

2шт.

16

86561225

BRACKET

Mount, Chain, LH

1шт.

17

86561226

BRACKET

Mount, Chain, RH

1шт.

18

87053102

MOUNTING PARTS

Mount, Motor

1шт.

Shown

1шт.

RH & LH, 25 & 30 FT; LH, 21 FT

1шт.

18

87053101

MOUNTING PARTS

Bracket, Mount, Motor

1шт.

Not Shown; Vertical Tab Bends In The Opposite Direction

1шт.

RH, 21 FT

1шт.

19

86561228

STOP

2шт.

20

86561229

HYD CONNECTOR

Round Holes, 7-1/2" L

1шт.

BSN K01 2001

1шт.

20

87043439

PLATE

Clamp, Slots, 8-3/8" L

1шт.

ASN K01 2001

1шт.

21

86604561

CHAIN

Roller, RC 60, 115 Pitches, 86.25"

1шт.

30 FT

1шт.

25 FT, Prior To PIN K01 2003

1шт.

21

87053125

CHAIN

Roller, RC 60, 115 Pitches, 92.25"

1шт.

25 FT

1шт.

From PIN K01 2003

1шт.

21

241153

CHAIN

Roller, RC 60, 99 Pitches

1шт.

21 FT

1шт.

22

80768

WOODRUFF KEY,#15, 1/4" x 1"

1шт.

23

87051054

SEAL KIT

1шт.
