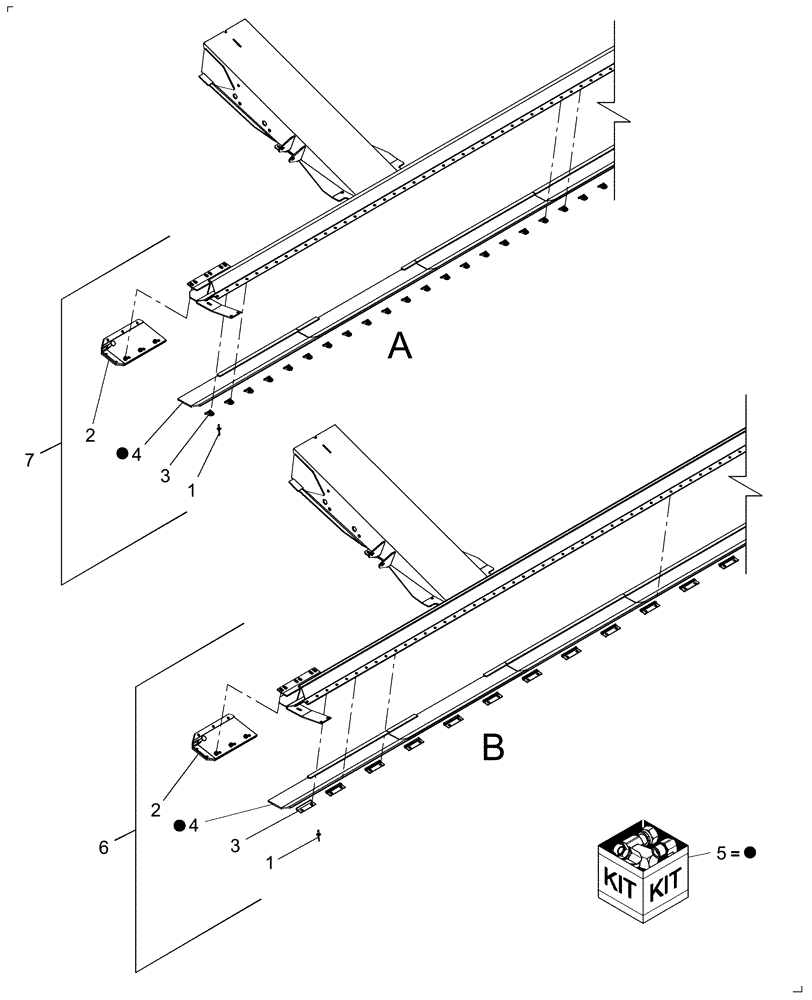

Запчасти Case IH DHX251 (1.08[3]) - CUTTERBAR POLY SKID MOUNT, CLIP METHOD (14) - CROP CUTTING

1

151-562

RIVET,Pop, 3/16" x .700"

10шт.

2

86609618

SKID PLATE

RH, See Figure 1.08[1]

1шт.

Shown

1шт.

2

86609619

SKID PLATE

LH, See Figure 1.08[1]

1шт.

Not Shown

1шт.

3

87368142

WASHER

(36) DHX181, (42) DHX211, (50) DHX251, (60) DHX301, (73) DHX361

1шт.

Schumacher Cutting System

1шт.

4

87393557

SKID/SHOE

L = 60"

1шт.

Replaces One Section; Cut & Notch To Fit

1шт.

5

87379913

KIT

DHX211 Only

1шт.

Replaces Entire Assembly, Ref. 4

1шт.

5

87379914

KIT

DHX251 Only

1шт.

Replaces Entire Assembly, Ref. 4

1шт.

5

87379915

KIT

DHX301 Only

1шт.

Replaces Entire Assembly, Ref. 4

1шт.

5

87379916

KIT

DHX361 nly

1шт.

Replaces Entire Assembly, Ref. 4

1шт.

6

CIH Assemblies, Not Applicable DHX Series 1 Models

1шт.

7

726302006

KIT

DHX181, Schumacher, Ref 1 To 4

1шт.

7

726302016

DIA KIT, ADD PROD

DHX211, Schumacher, Ref 1 To 4

1шт.

7

726302026

DIA KIT, ADD PROD

DHX251, Schumacher, Ref 1 To 4

1шт.

7

726302036

DIA KIT, ADD PROD

DHX301, Schumacher, Ref 1 To 4

1шт.

7

726302046

DIA KIT, ADD PROD

DHX361, Schumacher, Ref 1 To 4

1шт.
