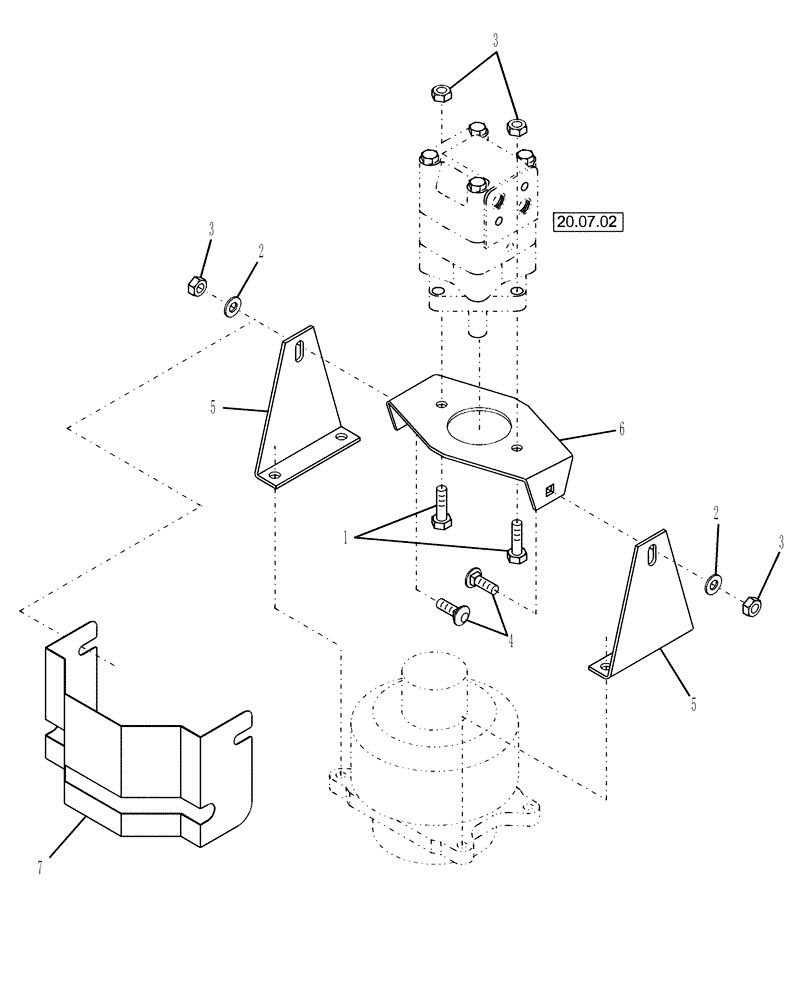

Запчасти Case IH DHX212 (20.04.03) - KNIFE DRIVE, MOTOR MOUNT (14) - CROP CUTTING

1

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

2шт.

2

495-21056

WASHER,1/2"

2шт.

3

232-4148

NUT,1/2"-13, GC

4шт.

4

433-820

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 1/4", Gr 5

2шт.

5

86564374

PLATE, SUPPORT

2шт.

6

86564376

BASE PLATE

1шт.

7

86624346

SHIELD

Knife Drive

1шт.
