Запчасти Case IH DHX211 (6.03) - DECALS (12) - MAIN FRAME

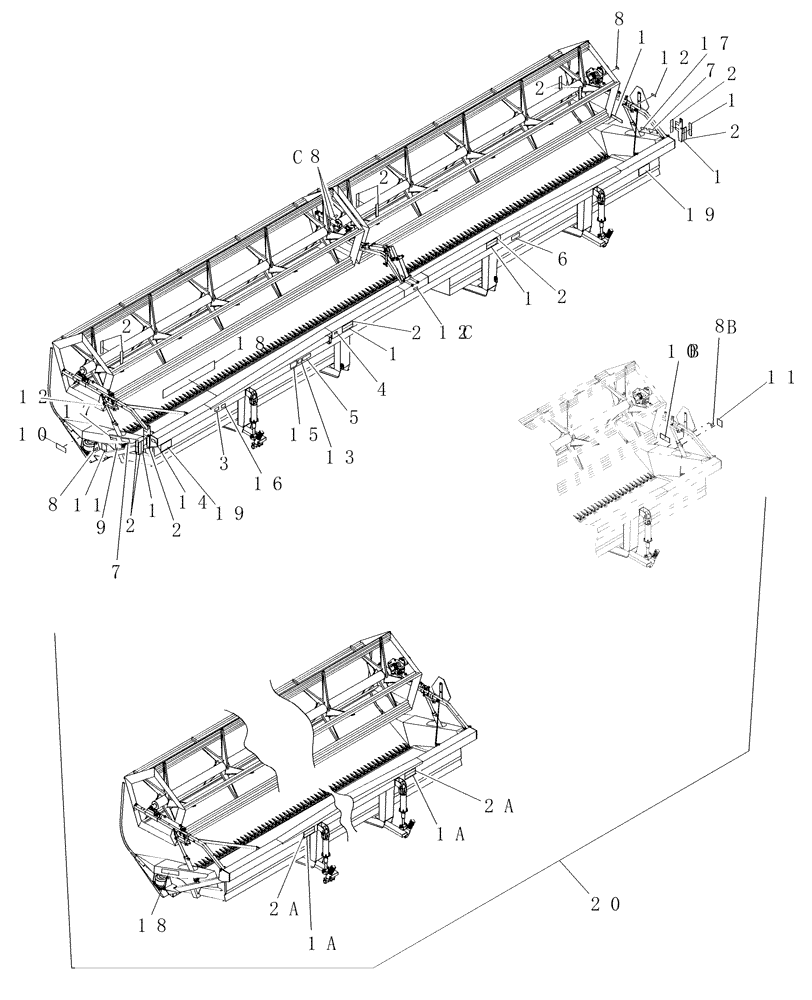

Схема запчастей Case IH DHX211 - (6.03) - DECALS (12) - MAIN FRAME
18
2
11
2a
b
1
12
c
1a
19
b
17
12
6
12
15
3
2a
1
18
2
7
2
10
2
8
2
8
1
1
8
2
1
2
9
2
4
7
5
14
17
1a
16
8
20
11
2
1
13
c
19
10

Артикул

Название

Примечание

Количество

1

86547782

REFLECTOR,YELLOW

Yellow, 2" x 9", Retroreflective

13шт.

2

86547781

REFLECTOR,RED

Red, 2" x 9", Retroreflective

6шт.

3

NSS

NOT SOLD SEPARAT

Plate, Identity

1шт.

4

86564393

DECAL

Canvas Speed

1шт.

5

86564394

DECAL

Warning High Pressure

1шт.

6

86564396

DECAL

Warning Pinch Point

1шт.

7

86564398

DECAL

Danger Rotating Parts

2шт.

8

86564399

DECAL

Grease, 10 Hr

3шт.

9

86564401

DECAL

Warning Transport

1шт.

10

86564403

DECAL

Danger Knife Section

1шт.

11

86564404

DECAL

Knife Drive

1шт.

12

86564405

DECAL

Warning Cylinder Locks

2шт.

13

86564406

DECAL

Warning Before Service

1шт.

14

86564414

DECAL

Attention Secure Reel

1шт.

15

86564425

DECAL

Caution Read Manual

1шт.

16

86564417

DECAL

Product Patent

1шт.

17

86593942

DECAL

Cylinder Lock Warning Large

2шт.

18

86624776

DECAL

CIH Logo

2шт.

19

86564397

DECAL

Canvas Adjust Instructions

2шт.

20

86729745

DECAL KIT

1шт.

a

25, 30 & 36 Ft Only

1шт.

b

Double Knife Only

1шт.

c

36 Ft Only

1шт.

Выбрано товаров: 23
