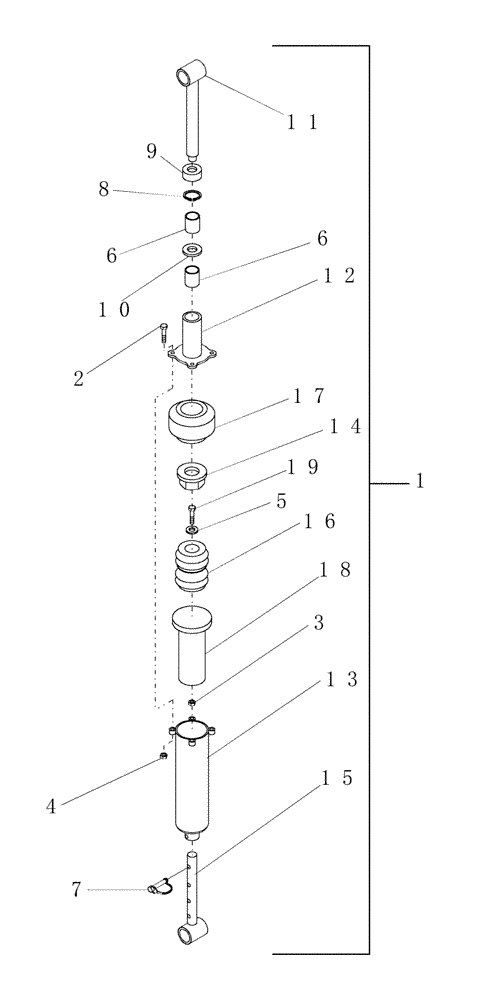

Запчасти Case IH DHX211 (3.17) - RUBBER SPRING FLOAT, SUBASSEMBLY (12) - MAIN FRAME

1

86640619

SPRING

Rubber Float Assembly

1шт.

2

88044

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

4шт.

3

9635082

NUT,5/16" - 18, Gr 5

1шт.

4

88902

NUT,3/8"-16

4шт.

5

495-21044

WASHER,3/8"

1шт.

6

86565483

BUSHING

Bronze

2шт.

7

86559645

LOCK PIN

Wireloc, 3/8" x 1-3/4"

1шт.

8

167111

SNAP RING,1.50", Int, #150

1шт.

9

86565485

SEAL

1шт.

Groove goes to outside. Use locktite.

1шт.

10

86565486

RING

Spacer

1шт.

11

86565487

SHAFT

1шт.

12

86565488

SLEEVE

1шт.

13

86565520

TUBE,12.75" L

Spring

1шт.

14

86565489

NUT

Retainer

1шт.

15

86565490

SHAFT

Adjuster

1шт.

16

86640620

SPRING

Rubber

1шт.

17

86640621

SPRING

Rebound

1шт.

18

86640622

TUBE SPACER

1шт.

19

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

1шт.
