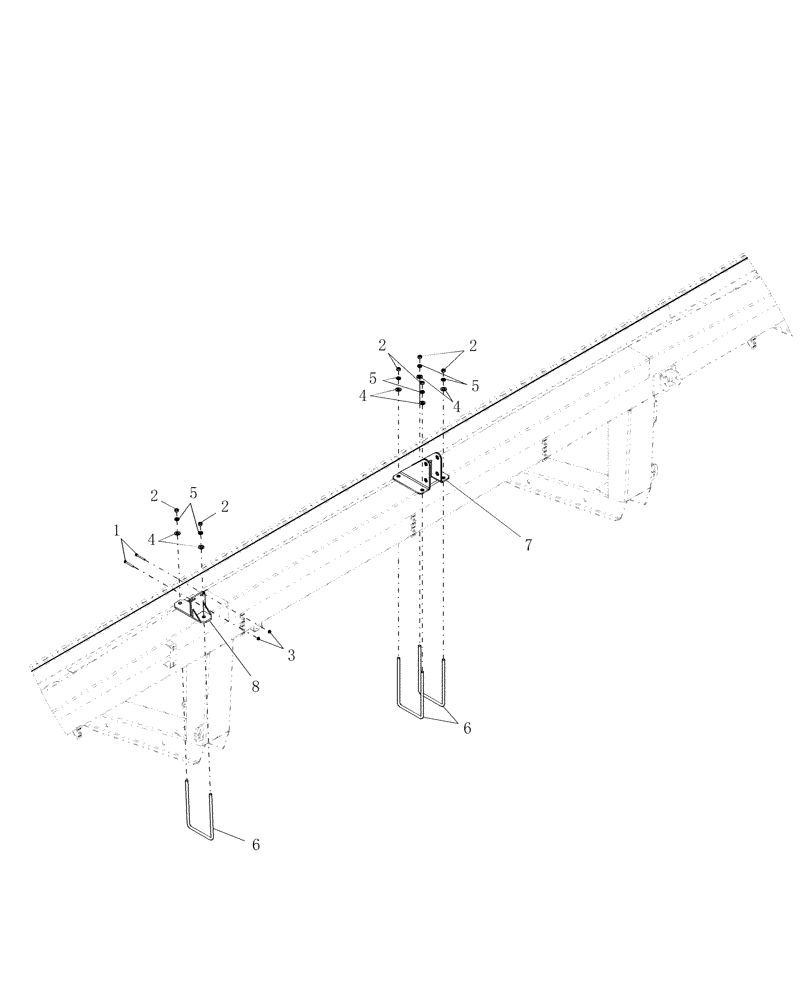

Запчасти Case IH DHX211 (3.12[2.2]) - UPPER LINK & FLOW DIVIDER BRACKETS, WDX1701; FROM PIN K01 2002 (12) - MAIN FRAME

1

413-436

BOLT,Hex, 1/4" - 20 x 2-1/4", Gr 5

2шт.

2

425-108

NUT,1/2" - 13, Gr 5

6шт.

3

231-5344

FLANGE NUT,Flg, 1/4"-20

2шт.

4

495-21056

WASHER,1/2"

6шт.

5

80679

LOCK WASHER,1/20.507 CST ZND

6шт.

6

86566613

U-BOLT

1/2"-13 x 8"

3шт.

DHX181 Thru DHX251

1шт.

6

86566612

U-BOLT

1/2"-13 x 12"

3шт.

DHX301

1шт.

7

86590788

BRACKET

1шт.

8

87038901

PLATE

Mount Tube

1шт.
