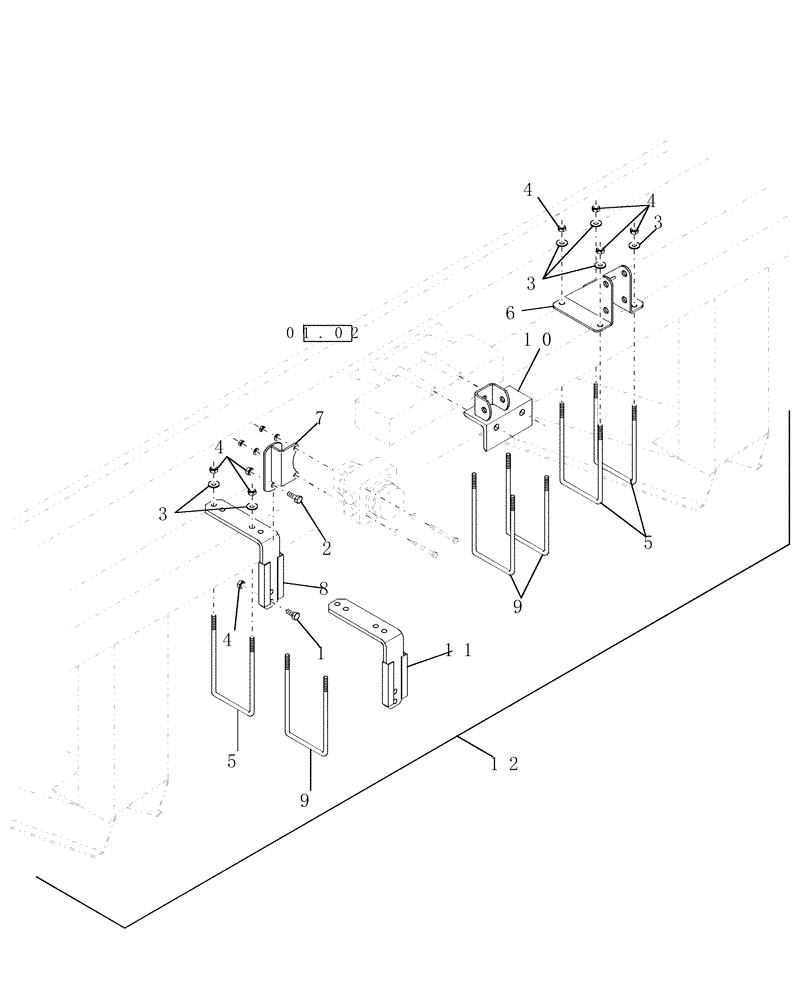

Запчасти Case IH DHX211 (3.12[1]) - UPPER LINK & FLOW DIVIDER BRACKETS, PRIOR TO PIN K01 2002 (12) - MAIN FRAME

1

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

1шт.

2

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

1шт.

3

495-21056

WASHER,1/2"

6шт.

4

232-4148

NUT,1/2"-13, GC

8шт.

5

86566613

U-BOLT

1/2"-13 x 8"; 18', 21' & 25'

3шт.

6

86590788

BRACKET

Upper Link;, Serial Range: 18'-30'

1шт.

7

86590789

SUPPORT

Flow Divider

1шт.

8

87013515

CLAMP

Short, Serial Range: 18'-25'

1шт.

9

86566612

U-BOLT

1/2"-13 x 12"; 30' & 36'

3шт.

10

86633255

LINK

Top, 36'

1шт.

11

87013514

CLAMP

Long, 30' & 36'

1шт.

12

86640239

TUBE

Upper Link/Flow Divider Bracket Assembly

1шт.
