Запчасти Case IH DHX211 (3.05) - HEADER FLOTATION ADAPTION, WDX901, 1101 & 1701 (12) - MAIN FRAME

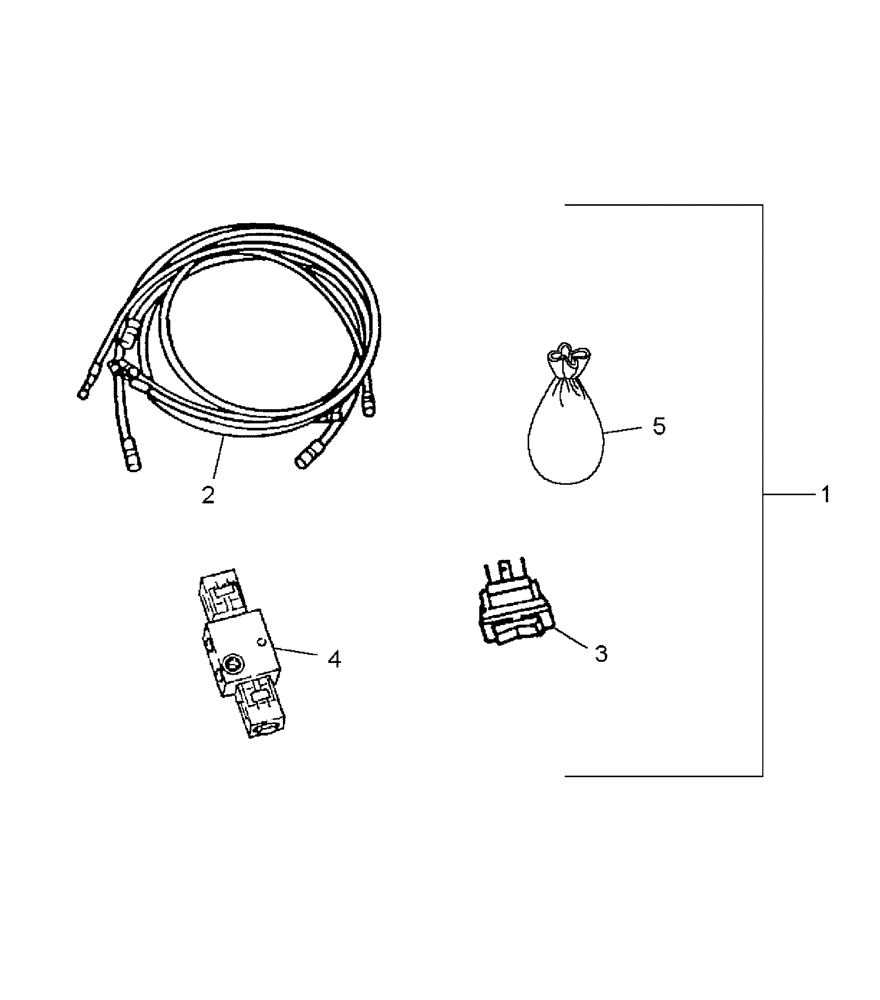

Схема запчастей Case IH DHX211 - (3.05) - HEADER FLOTATION ADAPTION, WDX901, 1101 & 1701 (12) - MAIN FRAME
1
3
5
4
2

Артикул

Название

Примечание

Количество

1

W0

ORDER WHOLEGOODS

Kit, Hydraulic Flotation Control

1шт.

2

9821684

HOSE,9.65 mm ID x 1854.20 mm, SAE 100 R2

Both Ends Straight

2шт.

2

86520437

HOSE

3/8" x 63", Straight x 45°

1шт.

2

86520438

HOSE

3/8" x 105", Straight x 45°

1шт.

3

445632

SWITCH

Rocker

1шт.

4

86503633

CONTROL VALVE

Includes the Following Parts

1шт.

4

86509021

COIL

1шт.

4

86509020

CONTROL VALVE

1шт.

4

590907

NUT

Jam, 1/2"-30

2шт.

4

129998

PLUG,1/2" - 20 ORB

Incl. O-Ring

1шт.

4

86508168

SEAL KIT

[2] O-Rings and [1] Backup Washer

1шт.

5

Miscellaneous Hardware, See the Following Items Below

1шт.

5

85700693

NUT,5/8" - 11, Gr C

4шт.

5

280736

NUT,5/16"-18, GC

1шт.

5

280129

NUT,1/4"-20

2шт.

5

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

90°, 37°, O-Ring, 3/8" Tube

4шт.

5

495-21038

WASHER,5/16"

1шт.

5

495-21031

WASHER,1/4"

2шт.

5

413-540

BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 5

1шт.

5

218-980

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree Fem Sw

1шт.

5

263117

CABLE TIE,292.1mm L, Nylon, Black

CABLE STRAP

4шт.

5

413-428

BOLT,Hex, 1/4" - 20 x 1-3/4", Gr 5

HH, G5, 1/4"-20 x 1-3/4"

2шт.

5

9706732

CLAMP,19mm ID, 8.7mm Bolt Hole, P Type

1шт.

5

86643219

CLAMP,Tube, 3/4"

3/4" Tube

2шт.

5

9846669

HYD CONNECTOR,9/16" - 18 Male x 9/16" - 18 Male

Str Thrd, Includes O-Ring

1шт.

5

218-5243

TEE,9/16" - 18 Male JIC x 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

Includes O-Ring

2шт.

5

218-754

CAP,37 Degree, 9/16"-18

6, Hex

1шт.

4

237-6005

O-RING,0.072" Thk x 0.414" ID, -905, Cl 6, 90 Duro

1шт.

5

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

4шт.

Выбрано товаров: 29
