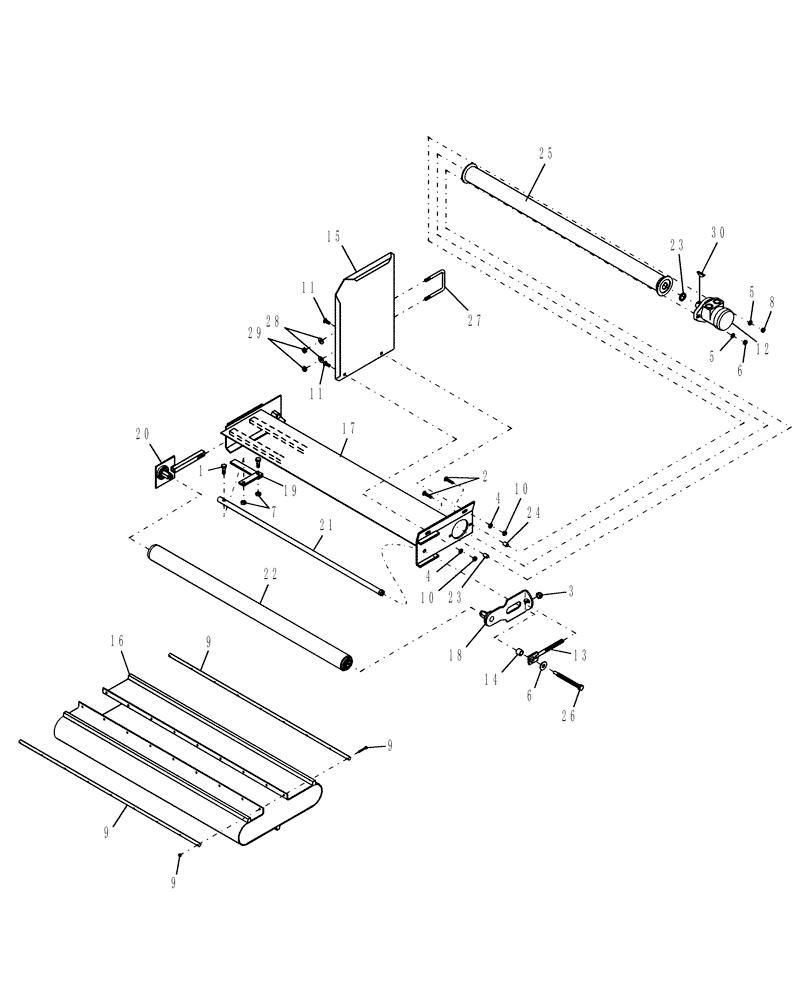

Запчасти Case IH DHX211 (2.06[1]) - JUNIOR DECK, PRIOR TO PIN K01 2002 (12) - MAIN FRAME

1

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

2

433-524

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 1 1/2", Gr 5

G5, 5/16"-18 x 1-1/2"

2шт.

3

80566

NUT

G5, 1/2"-13

1шт.

4

495-21031

WASHER,1/4"

2шт.

5

495-21038

WASHER,5/16"

2шт.

6

495-21056

WASHER,1/2"

1шт.

7

232-4146

NUT,3/8"-16, GC

2шт.

8

280736

NUT,5/16"-18, GC

2шт.

9

86560812

BAR

Connector, Kit, Canvas

1шт.

10

280129

NUT,1/4"-20

2шт.

11

433-412

CARRIAGE BOLT,Sq Nk, 1/4" - 20 x 3/4", Gr 5

2шт.

12

86560844

HYDRAULIC MOTOR

Includes: Ref. 30

1шт.

84136262R

REMAN-HYD MOTOR

DHX181 ,DHX211,DHX251,DHX361,DHX301 All (3/02-3/05) , Reman for New P/N 86560844

1шт.

84136262C

CORE-MOTOR HYDRAULIC

Return Number

1шт.

13

86560834

THREADED ROD

Tightener

1шт.

14

86563188

SPACER

1шт.

15

86617392

PANEL

Back, 12"

1шт.

16

86594347

CANVAS

42", 1 Ply, 24 OZ.

1шт.

17

86631092

CANVAS

Deck, Junior

1шт.

18

86611900

PLATE

Idler

1шт.

19

86594350

ADJUSTER

Crank, Bell

1шт.

20

86611899

ROD

Push

1шт.

21

86594352

ADJUSTER

Idler

1шт.

22

86560835

ROLLER

1шт.

23

86594393

SPACER

Drive Roller

1шт.

24

86594394

SPACER

Motor Mount

2шт.

25

86594392

ROLLER

1шт.

26

86560884

ADJUSTMENT SCREW,Hex, 1/2" x 5 9/16", Gr 5

1шт.

27

86563172

U-BOLT

1шт.

28

80702

WASHER,0.44" ID x 1" OD x 0.08" Thk

2шт.

29

88902

NUT,3/8"-16

2шт.

30

87380339

KEY

Key

1шт.
