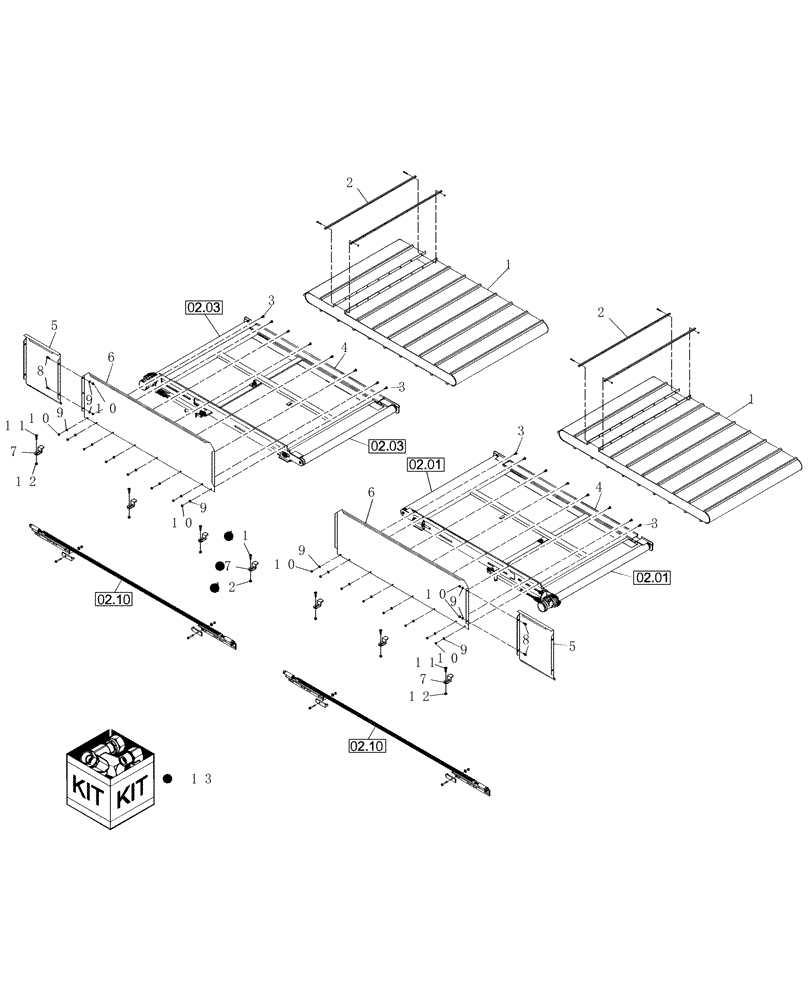

Запчасти Case IH DHX211 (2.04[1]) - CANVAS DECK, 18, 21 & 25 FT, SWATHER (12) - MAIN FRAME

1

87038599

CONVEYOR BELT

42", 1-ply, 24 oz.,160"; 18' Swather

2шт.

1

86561665

CANVAS

42", 1-ply, 24oz., 190"; 21' Swather

2шт.

Prior To PIN C20 2003

1шт.

1

87038708

CANVAS

42", 1-ply, 24oz., 190"; 21' Swather

2шт.

From PIN C20 2003

1шт.

1

87038739

CANVAS

42", 1-ply, 240z., 236"; 25' Swather

2шт.

2

86560812

BAR

Connector, Kit

2шт.

3

433-412

CARRIAGE BOLT,Sq Nk, 1/4" - 20 x 3/4", Gr 5

1шт.

4

87038595

FRAME

Deck, 58"; 18' Swather

2шт.

4

86563487

FRAME

Deck, 84"; 21' Swather

2шт.

Prior To PIN C20 2003

1шт.

4

87038709

FRAME

Deck, , 84"; 21' Swather

2шт.

From PIN C20 2003

1шт.

4

86560820

FRAME

Deck, 96"; 25' Swather

2шт.

Prior To PIN C20 2003

1шт.

4

87038742

FRAME

Deck, 102", 25' Swather

2шт.

From PIN C20 2003

1шт.

5

86640034

PANEL

16"; 18', 25' Swather LH & RH

2шт.

5

86640027

PANEL

8"; 21' Swather LH & RH

2шт.

6

86640039

PANEL

Back, 58"; 18'

2шт.

6

86640045

PANEL

Back, 84"; 21'

2шт.

6

87038741

PANEL

Back, 96"; 25'

2шт.

7

86560817

CLAMP

Back Panel, Hold Down

1шт.

8

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

4шт.

9

495-21031

WASHER,1/4"

1шт.

10

86532

LOCK NUT

Nylon, 1/4"

1шт.

11

88682

CARRIAGE BOLT,Short Nk, 3/8"-16 x 1", Gr 5

1шт.

12

232-4146

NUT,3/8"-16, GC

1шт.

13

86643457

KIT

Hold Down, 18', 7 Pc's Of Each Indicated

1шт.

13

86643458

KIT

Hold Down, 21' & 25', 9 Pc's Of Each Indicated

1шт.
