Запчасти Case IH DHX211 (2.03[3]) - DECK, LH, 21, 25, 30, & 36 FT, FROM PIN K01 2002 (12) - MAIN FRAME

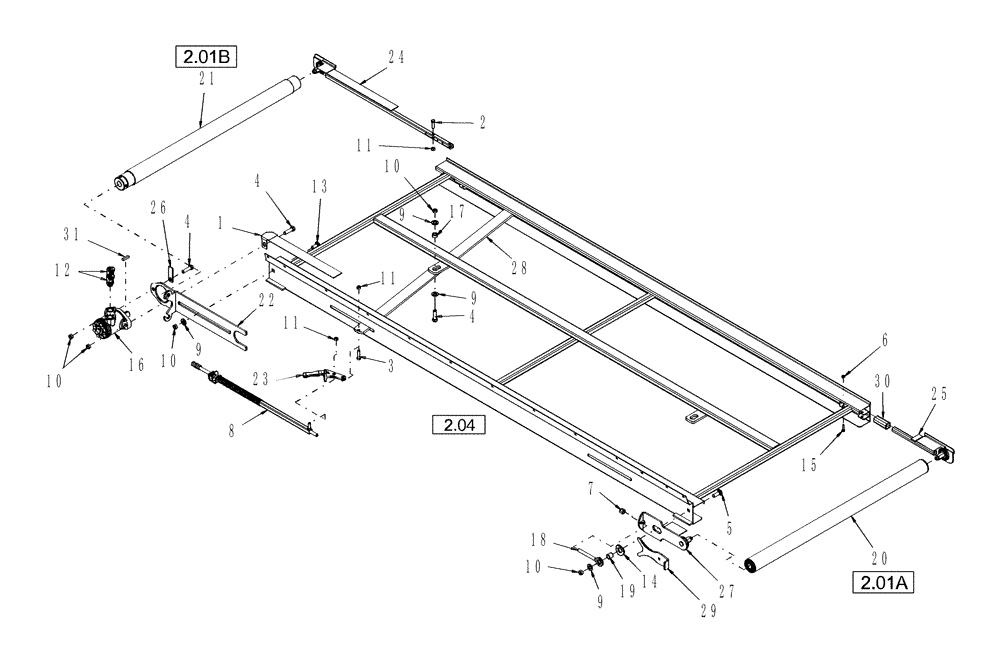

Схема запчастей Case IH DHX211 - (2.03[3]) - DECK, LH, 21, 25, 30, & 36 FT, FROM PIN K01 2002 (12) - MAIN FRAME
3
20
4
9
6
8
29
23
4
25
30
10
22
16
18
11
4
10
2
11
12
13
11
9
24
9
15
28
10
5
21
14
31
9
10
26
1
19
17
27
7

Артикул

Название

Примечание

Количество

1

87038597

PLATE

1шт.

2

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

1шт.

3

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

1шт.

4

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

3шт.

5

433-824

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 1/2", Gr 5

1шт.

6

86532

LOCK NUT

Nylon, 1/4"

15шт.

7

80566

NUT

G5, 1/2"-13

1шт.

8

87038706

TENSIONER

Short, 21 & 36 FT (All) & 25 FT & 30 FT (From PIN XXX 2004); See Fig. 2.02[3]

1шт.

8

87038585

TENSIONER

Long, 25 FT; See Fig. 2.02[2]

1шт.

Prior To PIN K01 2003

1шт.

8

87038935

ROD

Tensioner, Short, 30 FT; See Fig. 2.02[3]

1шт.

Prior To PIN K01 2003

1шт.

9

495-21056

WASHER,1/2"

4шт.

10

232-4148

NUT,1/2"-13, GC

5шт.

11

232-4146

NUT,3/8"-16, GC

3шт.

12

218-5137

ELBOW,45 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

45°, 5/8"; Incl. O-Ring

2шт.

12

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

Incl. O-Ring

2шт.

12

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

2шт.

13

433-820

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 1/4", Gr 5

1шт.

14

87038603

SPRING WASHER

1шт.

15

280687

CARRIAGE BOLT,Sq Nk, 1/4" - 20 x 1 1/4", Gr 5

1шт.

16

86560844

HYDRAULIC MOTOR

Includes: Ref. 31

1шт.

84136262R

REMAN-HYD MOTOR

DHX181 ,DHX211,DHX251,DHX361,DHX301 All (3/02-3/05) , Reman for New P/N 86560844

1шт.

84136262C

CORE-MOTOR HYDRAULIC

Return Number

1шт.

17

86563235

SPACER

1шт.

18

86560834

THREADED ROD

1шт.

19

86563188

SPACER

1шт.

20

86560835

ROLLER

Idler; See Fig. 2.01A

1шт.

21

86566165

ROLLER

Drive; See Fig. 2.01B

1шт.

22

87397822

MOUNTING PLATE

Plate

1шт.

23

87038598

PUSH-PULL COUPLING

1шт.

24

87050556

TRUSS ROD

Adjustable; Refer To Component Breakdown, Fig. 2.01C

1шт.

21 FT Double Swath Only

1шт.

24

86560838

ADJUSTMENT ROD

Components NSS

1шт.

25

87050554

TRUSS ROD

Rod, Push, Fixed; Refer To Component Breakdown, Fig. 2.01D

1шт.

21 FT Double Swath Only

1шт.

25

86560839

ROD

Push, Fixed; Components NSS

1шт.

25

87050553

SPACER

1шт.

Not Shown

1шт.

21 FT Double Swath Only

1шт.

26

86578677

CONNECTING LINK

1шт.

27

87355279

PLATE

1шт.

28

86560841

STABILIZER BAR

1шт.

29

87397821

STOP

Stop, Deck, 25 & 30 Ft. Only

1шт.

From PIN K01 2002

1шт.

30

87050553

SPACER

1шт.

From PIN K012003

1шт.

31

87380339

KEY

Key

1шт.
