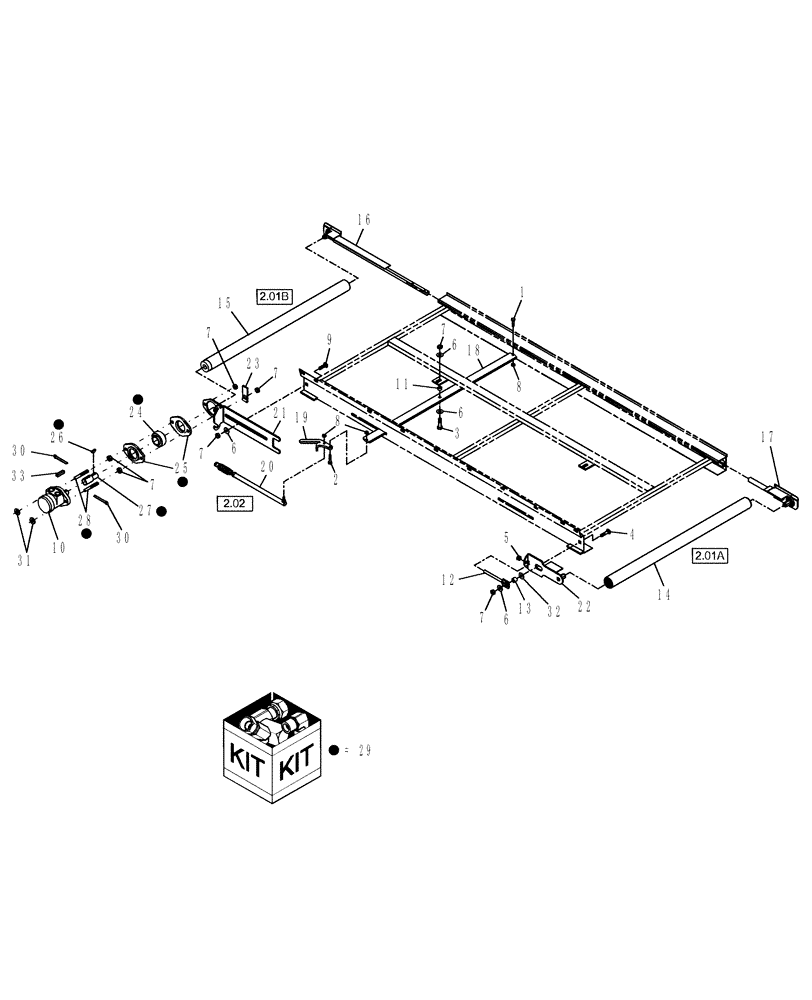

Запчасти Case IH DHX211 (2.03[1]) - DECK, LH, PRIOR TO PIN K01 2002 (12) - MAIN FRAME

1

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

1шт.

2

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

1шт.

3

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

1шт.

4

433-824

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 1/2", Gr 5

1шт.

5

80566

NUT

G5, 1/2"-13

1шт.

6

495-21056

WASHER,1/2"

4шт.

7

232-4148

NUT,1/2"-13, GC

7шт.

8

232-4146

NUT,3/8"-16, GC

3шт.

9

433-820

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 1/4", Gr 5

1шт.

10

86560844

HYDRAULIC MOTOR

Includes: Ref. 33

1шт.

84136262R

REMAN-HYD MOTOR

DHX181 ,DHX211,DHX251,DHX361,DHX301 All (3/02-3/05) , Reman for New P/N 86560844

1шт.

84136262C

CORE-MOTOR HYDRAULIC

Return Number

1шт.

11

86563235

SPACER

1шт.

12

86560834

THREADED ROD

Tightener

1шт.

13

86563188

SPACER

1шт.

14

86560835

ROLLER

Idler Assembly, Standard

1шт.

15

86566165

ROLLER

Drive Assembly, Vulcanized

1шт.

16

86560838

ADJUSTMENT ROD

Push, LH

1шт.

17

86560839

ROD

Push, Fixed, RH

1шт.

18

86560841

STABILIZER BAR

Sway, Canvas Deck

1шт.

19

86560842

BRACKET

Quick Release, LH

1шт.

20

86560848

ADJUSTER

Tube Assembly, Short

1шт.

20

86560843

ADJUSTER

Tube Assembly, Long

1шт.

21

87397822

MOUNTING PLATE

Motor, Canvas Deck

1шт.

22

87355279

PLATE

Idler, Fixed

1шт.

23

86578677

CONNECTING LINK

Restrainer, Tab Extension

1шт.

24

86563508

SPHERICAL BEARING,31.75mm ID x 62mm OD x 18mm W

Spherical, 3 Seal

1шт.

25

86578675

BEARING HOUSING

Bearing

2шт.

26

126-24

WOODRUFF KEY,#15, 1/4" x 1"

Woodruff, 1/2"

1шт.

27

86578674

COUPLING

1шт.

28

86578676

THREADED ROD

G8, 1/2"-13 x 3-15/16"

2шт.

29

86578673

KIT

Service, Drive Coupler

1шт.

30

432-816

COTTER PIN,1/8" x 1"

2шт.

31

495-11053

WASHER,1/2", SAE

2шт.

32

495-11094

WASHER,7/8", SAE

7/8"

1шт.

33

87380339

KEY

Key

1шт.
