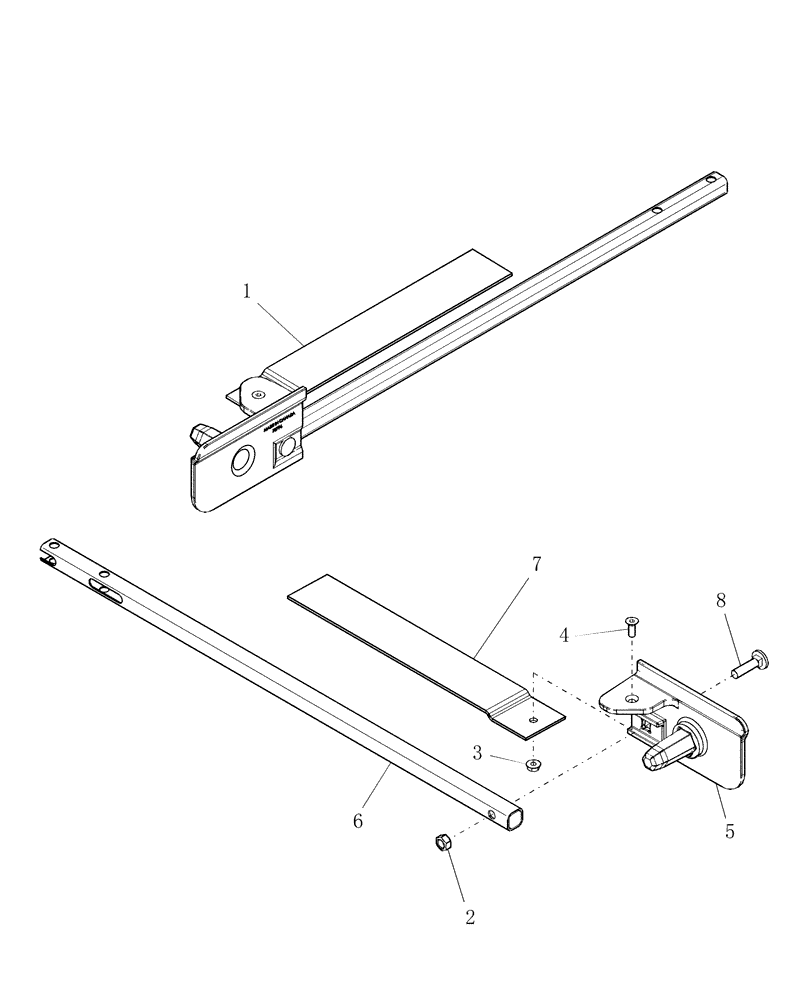

Запчасти Case IH DHX211 (2.01C) - PUSH ROD, ADJUSTABLE (12) - MAIN FRAME

1

87050560

TRUSS ROD

Adjustable, RH

1шт.

Shown

1шт.

21 FT Double Swath Only

1шт.

1

87050556

TRUSS ROD

Adjustable, LH

1шт.

Not Shown

1шт.

21 FT Double Swath Only

1шт.

2

232-4145

LOCK NUT,5/16"-18, GC

1шт.

3

832-46406

NUT,M6 x 1, Cl 8

CL 9, M6 x 1

1шт.

4

86564364

BOLT

M6 x 16

1шт.

5

87050544

IDLER

RH

1шт.

Shown

1шт.

No Longer Serviced Separately

1шт.

5

87050543

IDLER

LH

1шт.

Not Shown

1шт.

No Longer Serviced Separately

1шт.

6

87050547

TUBE,30" L

Adjustable

1шт.

No Longer Serviced Separately

1шт.

7

87050549

RUNNER

Deck

1шт.

No Longer Serviced Separately

1шт.

8

433-520

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 1 1/4", Gr 5

Carriage, G5, 5/16"-18 x 1-1/4"

1шт.
