Запчасти Case IH DHX211 (2.01[3]) - DECK, RH, 21, 25, 30, & 36 FT, FROM PIN K01 2002 (12) - MAIN FRAME

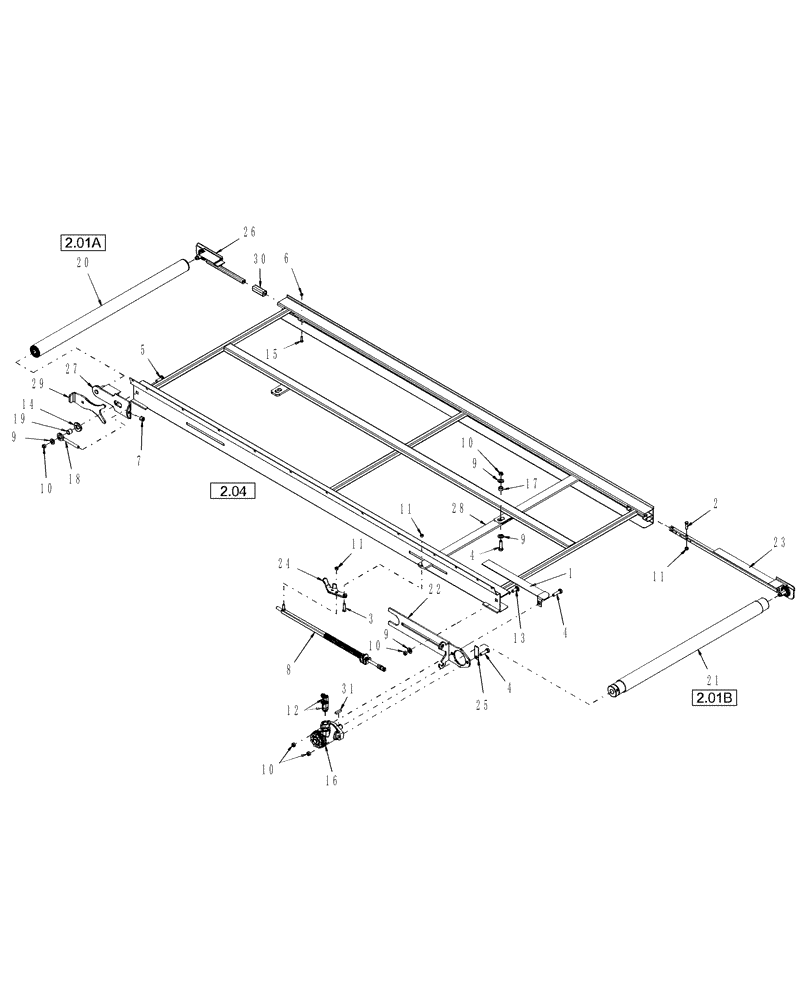

Схема запчастей Case IH DHX211 - (2.01[3]) - DECK, RH, 21, 25, 30, & 36 FT, FROM PIN K01 2002 (12) - MAIN FRAME
25
11
3
10
24
1
23
20
6
9
14
17
21
10
5
4
9
9
15
18
27
16
11
12
8
31
2
13
10
29
9
7
30
4
26
28
10
4
19
22
11

Артикул

Название

Примечание

Количество

1

87038596

PLATE

1шт.

2

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

1шт.

3

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

1шт.

4

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

3шт.

5

433-824

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 1/2", Gr 5

1шт.

6

86532

LOCK NUT

Nylon, 1/4"

15шт.

7

80566

NUT

Plastic, G5, 1/2"-13

1шт.

8

87038706

TENSIONER

Short, 21 & 36 FT (All) & 25 FT & 30 FT (From PIN K01 2003); See Fig. 2.02[3]

1шт.

8

87038585

TENSIONER

Long, 25 FT; See Fig. 2.02[2]

1шт.

Prior To PIN K01 2003

1шт.

8

87038935

ROD

Tensioner, Short, 30 FT; See Fig. 2.02[3]

1шт.

Prior To PIN K01 2003

1шт.

9

495-21056

WASHER,1/2"

4шт.

10

232-4148

NUT,1/2"-13, GC

5шт.

11

232-4146

NUT,3/8"-16, GC

3шт.

12

218-5137

ELBOW,45 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

45°, 5/8"; Incl. O-Ring

2шт.

12

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

Incl. O-Ring

2шт.

12

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

2шт.

13

433-820

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 1/4", Gr 5

1шт.

14

87038603

SPRING WASHER

1шт.

15

280687

CARRIAGE BOLT,Sq Nk, 1/4" - 20 x 1 1/4", Gr 5

1шт.

16

86560844

HYDRAULIC MOTOR

Includes: Ref. 31

1шт.

84136262R

REMAN-HYD MOTOR

DHX181 ,DHX211,DHX251,DHX361,DHX301 All (3/02-3/05) , Reman for New P/N 86560844

1шт.

84136262C

CORE-MOTOR HYDRAULIC

Return Number

1шт.

17

86563235

SPACER

1шт.

18

86560834

THREADED ROD

1шт.

19

86563188

SPACER

1шт.

20

86560835

ROLLER

Idler; See Fig. 2.01A

1шт.

21

86566165

ROLLER

Drive; See Fig. 2.01B

1шт.

22

87397822

MOUNTING PLATE

1шт.

23

87050560

TRUSS ROD

Adjustable; Refer To Component Breakdown, Fig. 2.01C

1шт.

21 FT Double Swath & All (From PIN K01 2003)

1шт.

23

86560845

ROD

Push, Adjustable; Components NSS

1шт.

Prior To PIN K01 2003

1шт.

24

87038598

PUSH-PULL COUPLING

1шт.

25

86578677

CONNECTING LINK

1шт.

26

87050558

TRUSS ROD

Fixed; Refer To Component Breakdown, Fig. 2.01D

1шт.

21 FT Double Swath & All (From PIN K01 2003)

1шт.

26

86560846

ROD

Push, Fixed; Components NSS

1шт.

Prior To PIN K01 2003

1шт.

27

87355279

PLATE

1шт.

28

86560841

STABILIZER BAR

1шт.

29

87397821

STOP

Stop, Deck, 25 & 30 Ft. Only

1шт.

From PIN K012003

1шт.

30

87050553

SPACER

1шт.

From PIN K012003

1шт.

31

87380339

KEY

Key

1шт.

Выбрано товаров: 47
