Запчасти Case IH DHX211 (1.20) - TUBE SHIELD, 18, 21, 25, 30, 36 FT (12) - MAIN FRAME

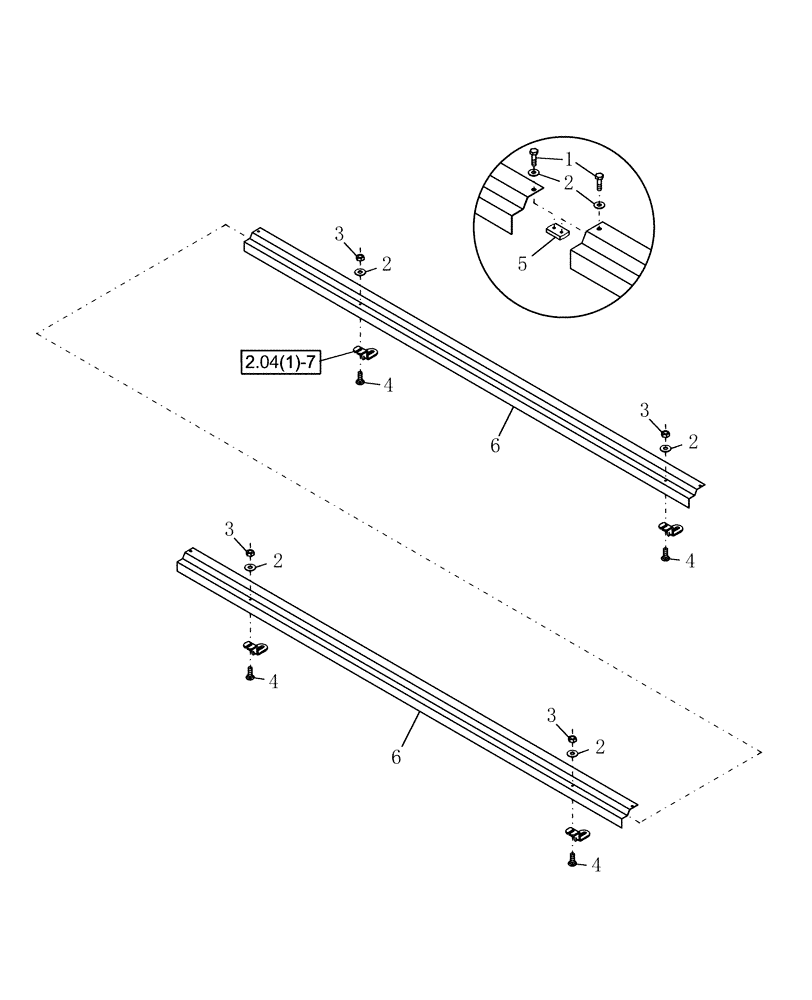

Схема запчастей Case IH DHX211 - (1.20) - TUBE SHIELD, 18, 21, 25, 30, 36 FT (12) - MAIN FRAME
4
2
2
2
2
4
3
4
4
2
3
6
6
5
3
3
1

Артикул

Название

Примечание

Количество

1

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

1шт.

2

495-21031

WASHER,1/4"

1шт.

3

280129

NUT,1/4"-20

1шт.

4

433-412

CARRIAGE BOLT,Sq Nk, 1/4" - 20 x 3/4", Gr 5

1шт.

5

86560957

PLATE

Connector, Tube Shield

1шт.

6

86640032

SHIELD

Tube Cover, 120", Serial Range: 21'-36'

2шт.

6

86640033

SHIELD

Tube Cover, 18'

2шт.

6

86640056

SHIELD

Tube Cover, 50", 25'

1шт.

6

86640033

SHIELD

Tube Cover, 103-3/4", 30'

1шт.

6

86643813

SHIELD

Tube Cover, 88", 36'

2шт.

Выбрано товаров: 10
