Запчасти Case IH DHX211 (1.06[2]) - CROP DEFLECTOR, RH, DRIVE & NON-DRIVE, FROM PIN K01 2002 (12) - MAIN FRAME

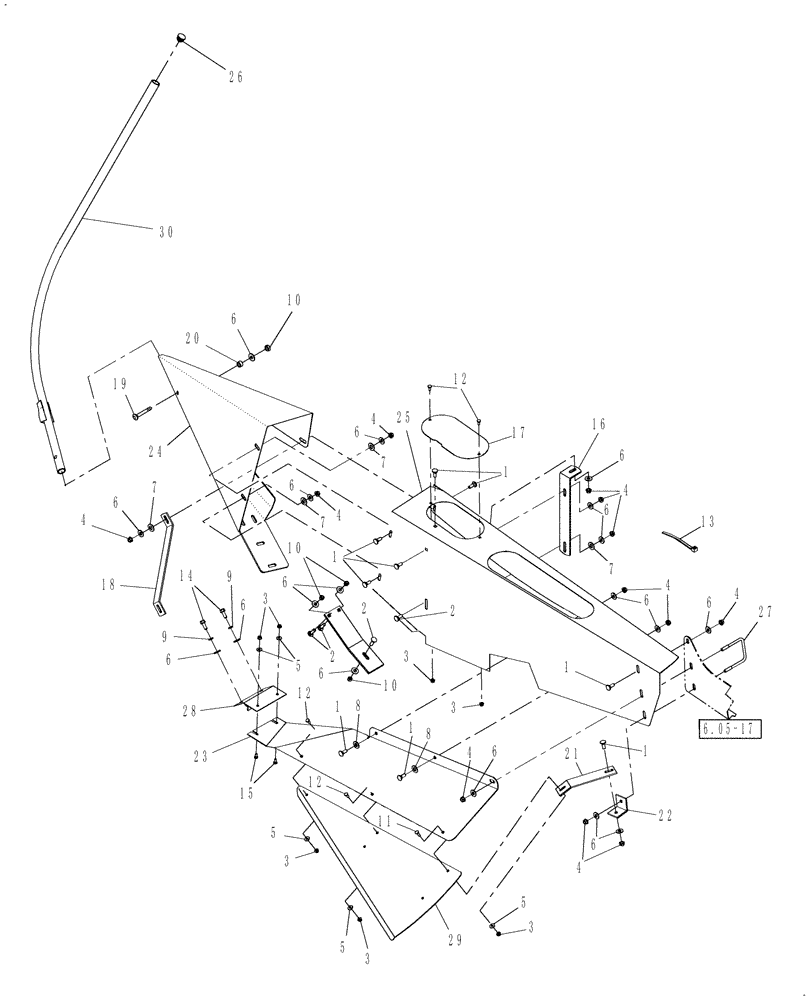

Схема запчастей Case IH DHX211 - (1.06[2]) - CROP DEFLECTOR, RH, DRIVE & NON-DRIVE, FROM PIN K01 2002 (12) - MAIN FRAME
1
26
2
4
6
11
2
6
10
1
3
3
9
12
12
16
6
23
5
7
6
18
12
3
4
6
1
6
4
6
2
19
30
29
6
15
7
28
20
14
7
1
3
13
4
4
27
25
10
8
6
1
17
8
6
9
4
6.05-17
21
22
7
10
6
3
4
6
5
3
24
5
6
6
4
5
1

Артикул

Название

Примечание

Количество

1

88682

CARRIAGE BOLT,Short Nk, 3/8"-16 x 1", Gr 5

9шт.

2

433-620

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 1/4", Gr 5

4шт.

3

231-5344

FLANGE NUT,Flg, 1/4"-20

7шт.

4

231-5346

FLANGE NUT,Flg, 3/8"-16

GF

12шт.

5

495-21031

WASHER,1/4"

5шт.

6

495-21044

WASHER,3/8"

18шт.

7

495-21056

WASHER,1/2"

4шт.

8

495-11053

WASHER,1/2", SAE

2шт.

9

492-11038

LOCK WASHER,3/8"

2шт.

10

232-4146

NUT,3/8"-16, GC

4шт.

11

86508769

CARRIAGE BOLT,Sq Nk, 1/4" - 20 x 1", Gr 5

1шт.

12

433-412

CARRIAGE BOLT,Sq Nk, 1/4" - 20 x 3/4", Gr 5

4шт.

13

263117

CABLE TIE,292.1mm L, Nylon, Black

CABLE STRAP

1шт.

Used To Support Light Harness

1шт.

14

280476

SELF-TAP SCREW,HWH, 3/8"-16 x 1"

2шт.

15

88715

CARRIAGE BOLT,Sq Nk, 1/4" - 20 x 1/2", Gr 5, Full Thd

2шт.

16

86640061

DEFLECTOR

1шт.

17

86640062

DEFLECTOR

1шт.

18

87577277

BAR

Brace

1шт.

Shown

1шт.

Single Knife Drive

1шт.

18

86622037

SUPPORT

1шт.

Not Shown

1шт.

Double Knife Drive

1шт.

19

433-632

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 2", Gr 5

1шт.

20

86563171

SPACER

1шт.

21

87051901

BRACE

Deflector Extension

1шт.

22

87051900

DEFLECTOR

Bracket, Extension Mount

1шт.

23

87051899

DEFLECTOR

Extension, Upper

1шт.

23

87014346

PLASTIC PLUG

1шт.

24

86640053

DIVIDER

1шт.

25

87051886

DEFLECTOR

Crop Forage

1шт.

26

87014346

PLASTIC PLUG

1шт.

27

87051806

U-BOLT

3/8" x 4" x 3-1/8"

1шт.

28

87051897

GUARD

1шт.

29

87051909

DEFLECTOR

Extension, Lower

1шт.

Used W/Double Swath Only

1шт.

30

87049508

PIPE

Pipe

1шт.

Выбрано товаров: 38
