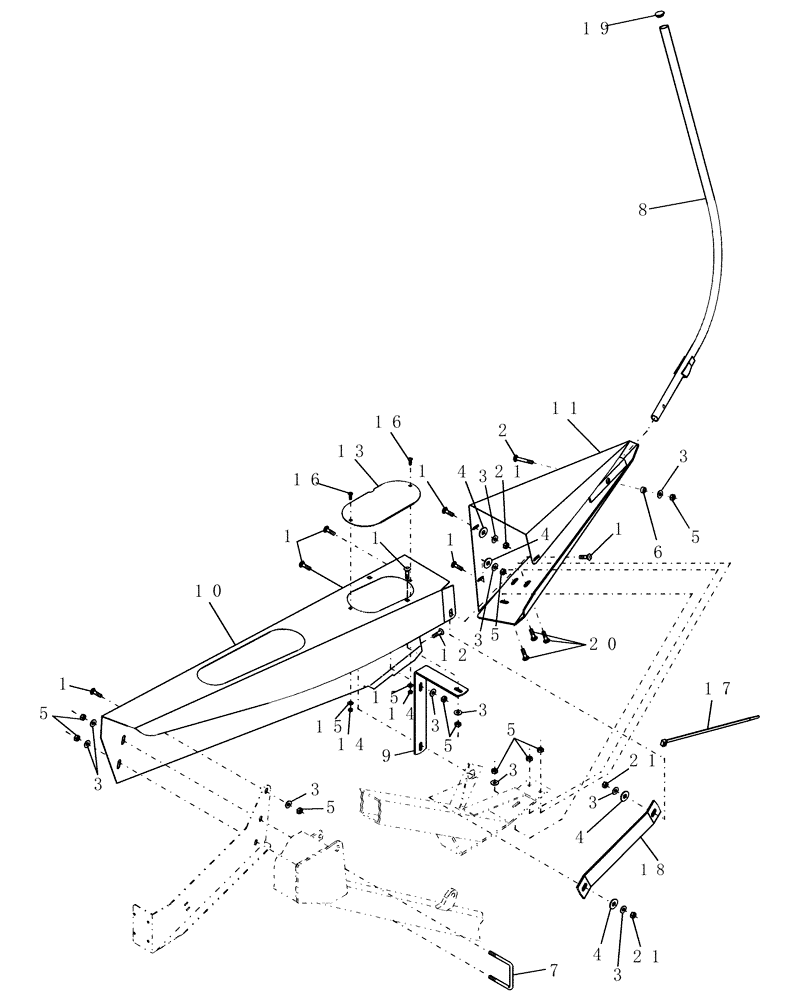

Запчасти Case IH DHX211 (1.04) - CROP DEFLECTOR, RH, NON-DRIVE, PRIOR TO PIN K01 2002 (12) - MAIN FRAME

1

88682

CARRIAGE BOLT,Short Nk, 3/8"-16 x 1", Gr 5

6шт.

2

433-632

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 2", Gr 5

1шт.

3

495-21044

WASHER,3/8"

11шт.

4

495-21056

WASHER,1/2"

4шт.

5

232-4146

NUT,3/8"-16, GC

10шт.

6

86563171

SPACER

Divider Rubber

1шт.

7

86563172

U-BOLT

G5, 3/8"-16 x 3-3/4"

1шт.

8

87049508

PIPE

Crop

1шт.

9

86640061

DEFLECTOR

Strap, Crop

1шт.

10

86640048

DEFLECTOR

Crop Right Hand

1шт.

11

86640053

DIVIDER

RH

1шт.

12

590424

SELF-TAP SCREW

HWH, S#2 Pt, #12 x 3/4"

1шт.

13

86640062

DEFLECTOR

1шт.

14

280129

NUT,1/4"-20

2шт.

15

495-21031

WASHER,1/4"

1шт.

16

433-412

CARRIAGE BOLT,Sq Nk, 1/4" - 20 x 3/4", Gr 5

2шт.

17

263117

CABLE TIE,292.1mm L, Nylon, Black

CABLE STRAP

1шт.

18

87577277

BAR

Brace, RH

1шт.

19

87014346

PLASTIC PLUG

1шт.

20

433-620

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 1/4", Gr 5

3шт.

21

231-5346

FLANGE NUT,Flg, 3/8"-16

GF

3шт.
