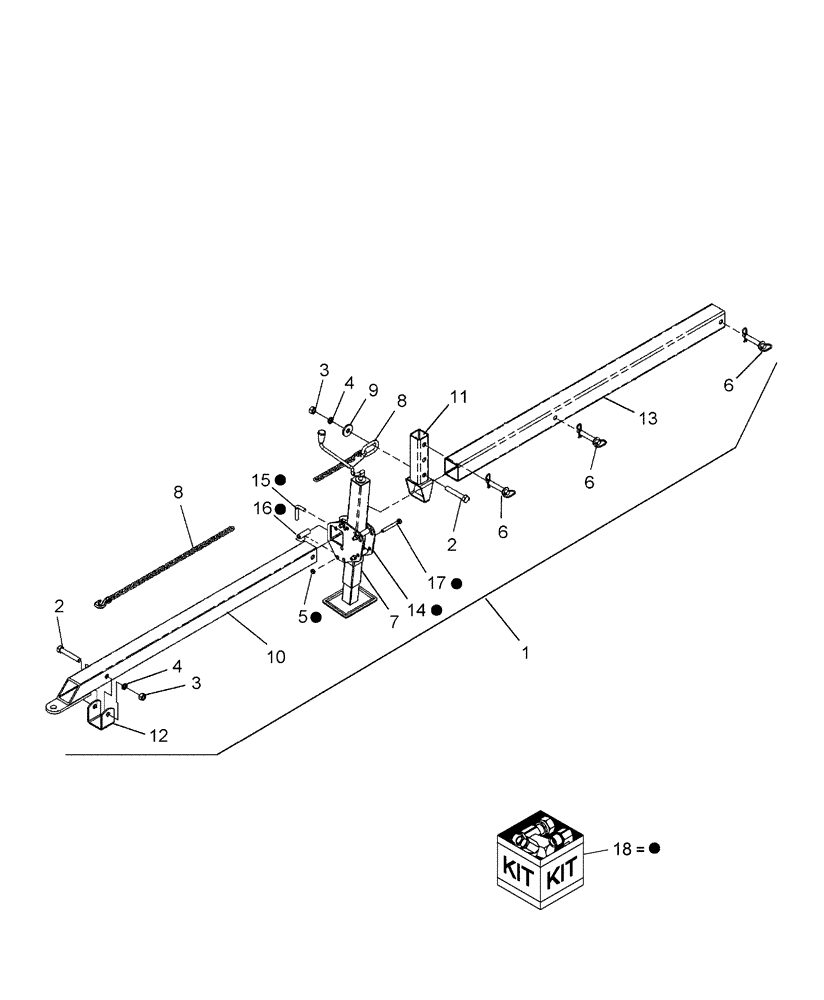

Запчасти Case IH DHX211 (1.03[2]) - HITCH, 18 TO 36 FT, FROM PIN D04 2003 (12) - MAIN FRAME

1

0C

ORDER COMPONENTS

Hitch, 21 FT

1шт.

1

0C

ORDER COMPONENTS

Hitch, 18 & 30 FT

1шт.

1

0C

ORDER COMPONENTS

Hitch, 25 FT

1шт.

1

0C

ORDER COMPONENTS

Hitch, 36 FT

1шт.

2

413-1272

BOLT,Hex, 3/4" - 10 x 4-1/2", Gr 5

Cap, HH, 3/4"-10 x 4-1/2"

2шт.

3

425-1012

NUT,3/4"-10, G5

2шт.

4

492-11075

LOCK WASHER,3/4"

3/4"

2шт.

5

232-4148

NUT,1/2"-13, GC

4шт.

6

86563633

PIN

Hitch, 3/4"

3шт.

7

86564356

JACK

1шт.

8

86564357

CHAIN

Safety

1шт.

9

86564358

WASHER

Safety Chain

1шт.

10

86560979

HITCH

1шт.

11

86560980

BRACKET

1шт.

12

86560981

CLEVIS

1шт.

13

86564370

BRACKET

21 FT

1шт.

13

86564371

BRACKET

25 FT

1шт.

13

86560982

BRACKET

30 FT

1шт.

13

86564372

BRACKET

36 FT

1шт.

14

87038998

BRACKET

Adjustable Jack Mount

1шт.

15

87038999

LOCK PIN

1шт.

16

87039000

SPACER

Sleeve

1шт.

17

86505993

BOLT,Hex, 1/2" - 13 x 4", Gr 5

4шт.

17

86637561

BOLT

Carriage, G5, 1/2" x 5", Ref 14 Supersedes To Mount W/Square Holes

4шт.

18

87346221

KIT

Includes: Ref.s 5 & 14 Thru 17 (9637417)

1шт.
