Запчасти Case IH DHX211 (1.03[1]) - HITCH, 18 TO 36 FT, PRIOR TO PIN D04 2003 (12) - MAIN FRAME

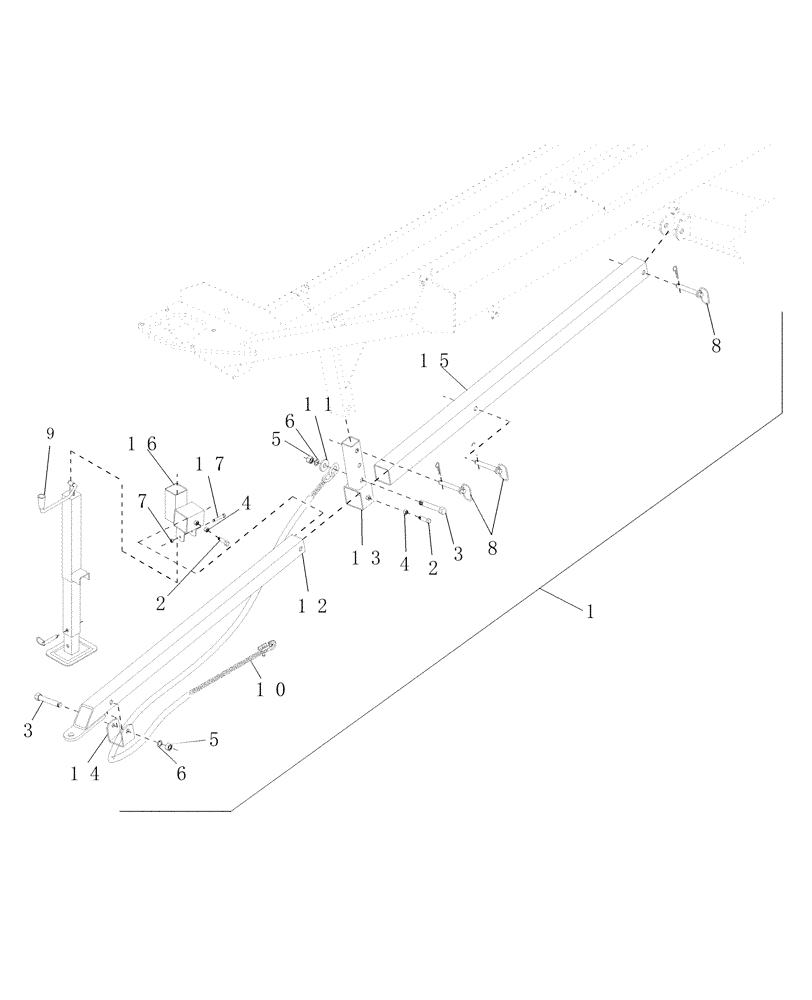

Схема запчастей Case IH DHX211 - (1.03[1]) - HITCH, 18 TO 36 FT, PRIOR TO PIN D04 2003 (12) - MAIN FRAME
3
12
7
8
17
3
11
5
4
2
16
14
1
9
5
8
10
15
13
6
6
2
4

Артикул

Название

Примечание

Количество

1

86559752

HITCH

Assembly, 21 FT

1шт.

1

86559753

HITCH

Assembly, 25 FT

1шт.

1

86559754

HITCH

Assembly, 18 & 30 FT

1шт.

1

86559755

HITCH

Assembly, 36 FT

1шт.

2

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

2шт.

3

413-1272

BOLT,Hex, 3/4" - 10 x 4-1/2", Gr 5

HH, G5, 3/4"-10 x 4-1/2"

2шт.

4

425-108

NUT,1/2" - 13, Gr 5

2шт.

5

425-1012

NUT,3/4"-10, G5

2шт.

6

492-11075

LOCK WASHER,3/4"

3/4"

2шт.

7

232-4146

NUT,3/8"-16, GC

1шт.

8

86563633

PIN

Hitch, 3/4"

3шт.

9

86564356

JACK

7000 LB

1шт.

10

86564357

CHAIN

Safety

1шт.

11

86564358

WASHER

Safety Chain

1шт.

12

86560979

HITCH

1шт.

13

86560980

BRACKET

Hitch, Slide

1шт.

14

86560981

CLEVIS

Safety Chain

1шт.

15

86564370

BRACKET

Tube, Hitch, 21FT

1шт.

15

86564371

BRACKET

Tube, Hitch, 25FT

1шт.

15

86560982

BRACKET

Tube, Hitch, 18 and 30FT

1шт.

15

86564372

BRACKET

Tube, Hitch, 36FT

1шт.

16

86560983

BRACKET

Jack

1шт.

17

413-656

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5

Cap, HH, G5, 3/8"-16 x 3-1/2"

1шт.

Выбрано товаров: 23
