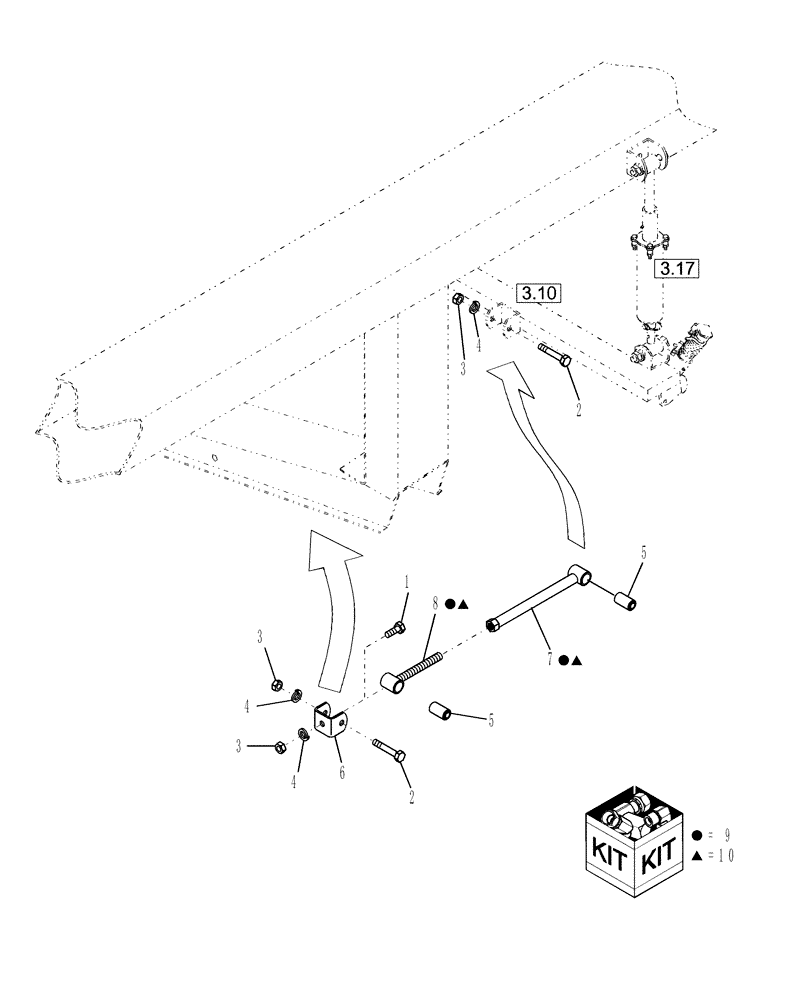

Запчасти Case IH DHX211 (3.09) - GAUGE WHEEL STABILIZER LH & RH (11) - WHEELS

1

88725

BOLT,Hex, 3/4" - 10 x 1 3/4", Gr 5, Full Thd

1шт.

2

88007

BOLT,Hex, 3/4" - 10 x 4 1/2", Gr 5

2шт.

3

280954

NUT,3/4"-10, G5

3шт.

4

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

3шт.

5

86565458

DRIVE BUSHING

2шт.

6

86565477

CLEVIS

1шт.

7

86565479

SPACER

RH Stabilizer

1шт.

7

86565478

SPACER

LH Stabilizer

1шт.

8

86565480

BOLT

Adjuster - Stabilizer

1шт.

9

86640669

KIT

Gauge Wheel Stabilizer, RH

1шт.

10

86640670

KIT

Gauge Wheel Stabilizer, LH

1шт.
