(1.10[2]) - GAUGE WHEEL AND MOUNT, FROM PIN K01 2005

Запчасти Case IH DHX211 (1.10[2]) - GAUGE WHEEL AND MOUNT, FROM PIN K01 2005 (11) - WHEELS

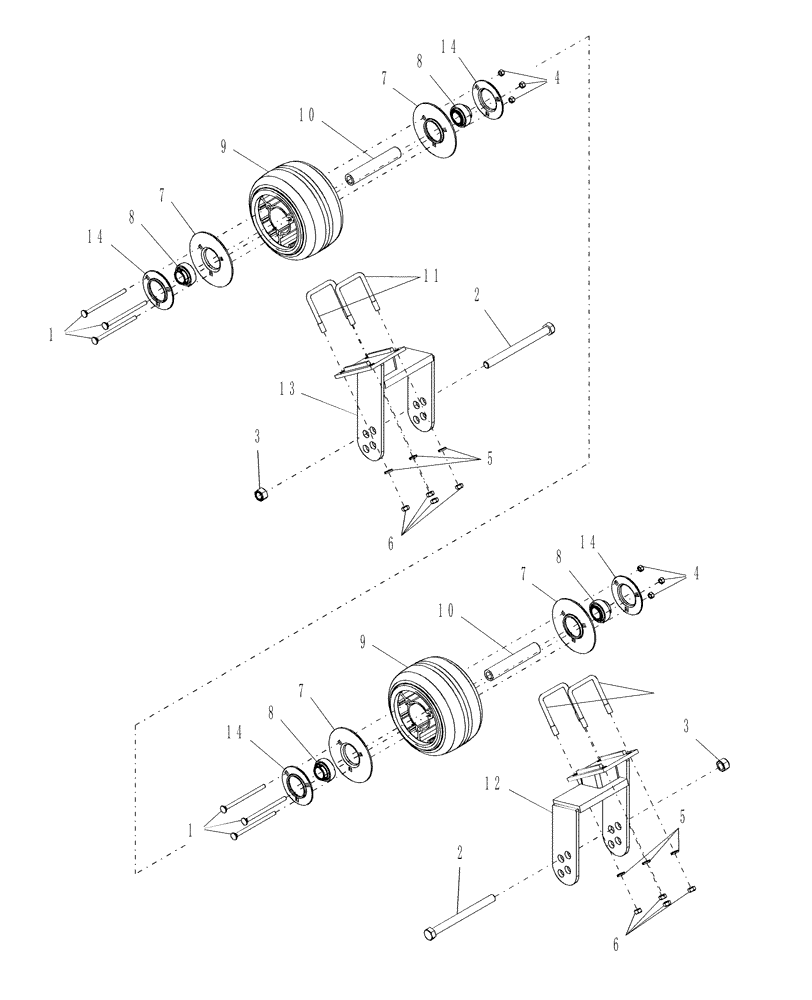

Схема запчастей Case IH DHX211 - (1.10[2]) - GAUGE WHEEL AND MOUNT, FROM PIN K01 2005 (11) - WHEELS
8
5
11
13
9
12
3
1
7
6
10
4
14
8
14
7
14
14
1
3
10
9
8
5
2
4
7
6
7
2
8
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

280555

PLOW BOLT,Sq Nk, 3/8" - 16 x 6", Gr 5

3/8" x 6"

6шт.

2

413-12144

BOLT,Hex, 3/4" - 10 x 9", Gr 5

2шт.

3

231-14412

LOCK NUT,3/4"-10, GB

2шт.

4

88902

NUT,3/8"-16

6шт.

5

80679

LOCK WASHER,1/20.507 CST ZND

8шт.

6

88871

NUT,1/2"-13, GC

8шт.

7

87520779

FLANGE

Flange, 6-1/4" O.D.

4шт.

8

86563508

SPHERICAL BEARING,31.75mm ID x 62mm OD x 18mm W

4шт.

9

87520778

WHEEL ASSY

Rubber W/Hub

2шт.

10

87035786

SLEEVE

2шт.

11

87035785

U-BOLT

4шт.

12

87035784

MOUNTING PARTS

RH

1шт.

13

87035783

MOUNTING PARTS

LH

1шт.

14

269491

FLANGE

4шт.
