Запчасти Case IH DHX211 (1.10[1]) - GAUGE WHEEL AND MOUNT, PRIOR TO PIN K01 2005 (11) - WHEELS

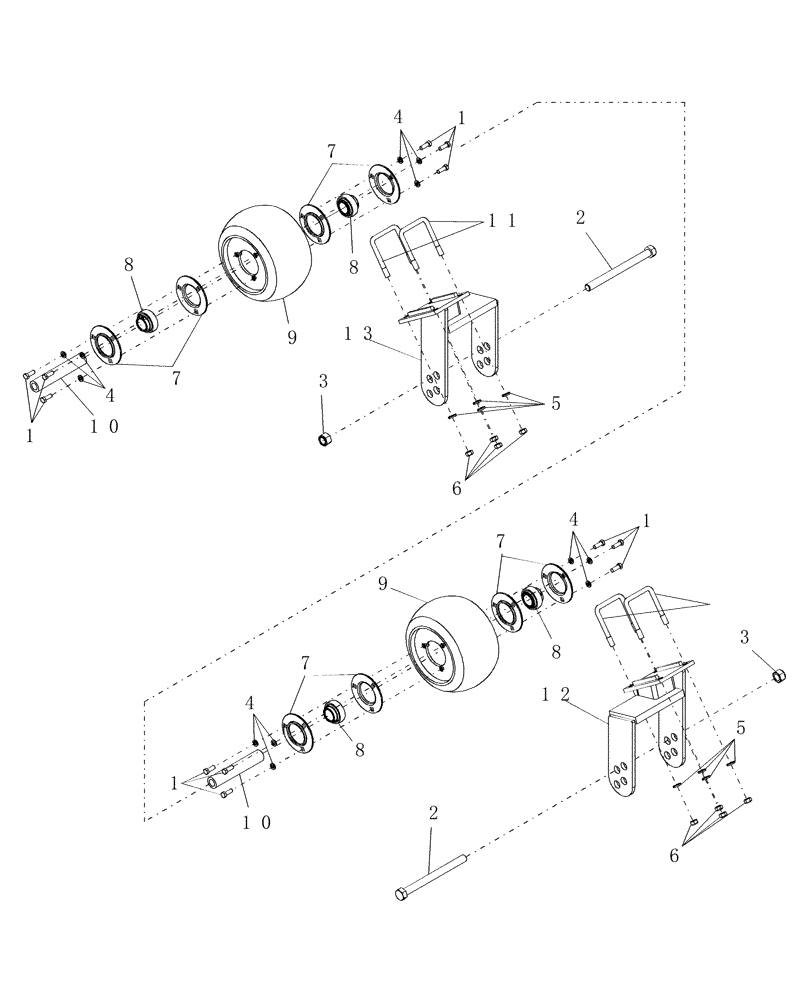

Схема запчастей Case IH DHX211 - (1.10[1]) - GAUGE WHEEL AND MOUNT, PRIOR TO PIN K01 2005 (11) - WHEELS
7
7
5
10
1
3
2
11
7
1
1
7
1
9
6
4
8
10
8
6
4
1
3
2
8
4
12
8
5
4
9
13

Артикул

Название

Примечание

Количество

1

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

12шт.

2

413-12144

BOLT,Hex, 3/4" - 10 x 9", Gr 5

HH, G5, 3/4"-10 x 9"

2шт.

3

231-14412

LOCK NUT,3/4"-10, GB

2шт.

4

492-11038

LOCK WASHER,3/8"

12шт.

5

80679

LOCK WASHER,1/20.507 CST ZND

8шт.

6

232-4148

NUT,1/2"-13, GC

8шт.

7

269491

FLANGE

8шт.

8

86563508

SPHERICAL BEARING,31.75mm ID x 62mm OD x 18mm W

4шт.

9

87035787

FURROW WHEEL

Poly Tire & Hub

2шт.

10

87035786

SLEEVE

2шт.

11

87035785

U-BOLT

1/2" x 4" x 3-1/8"

4шт.

12

87035784

MOUNTING PARTS

Wheel, RH

1шт.

13

87035783

MOUNTING PARTS

Wheel, LH

1шт.

Выбрано товаров: 13
