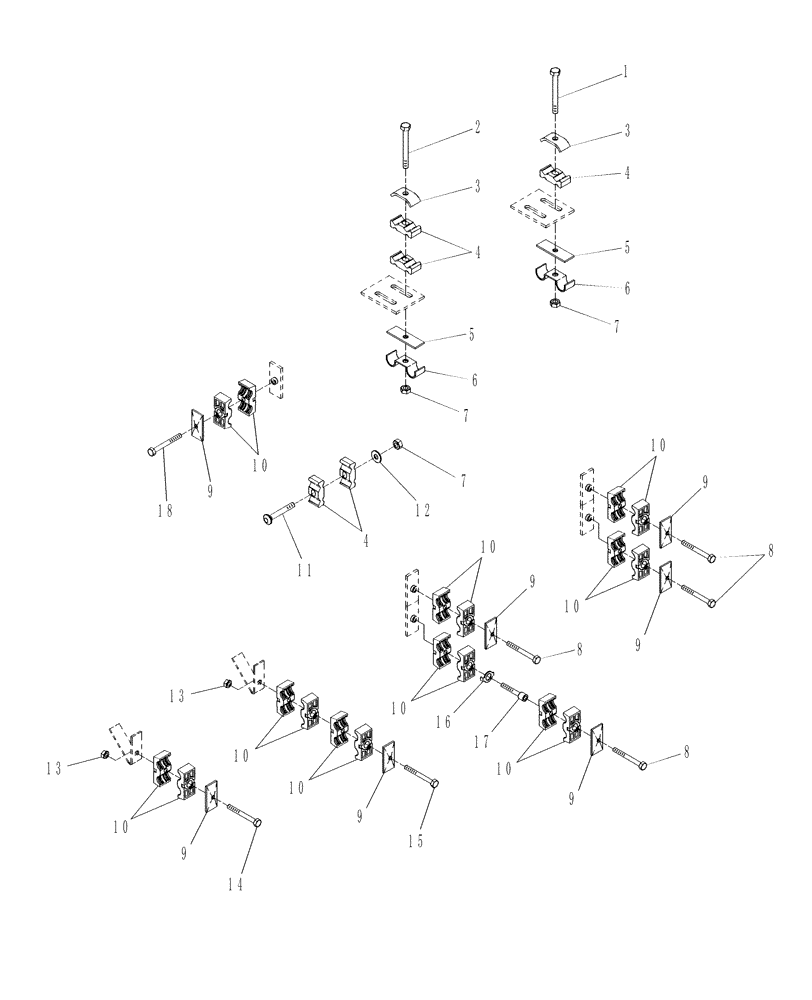

Запчасти Case IH DHX211 (7.20) - HYDRAULIC HOSE CLAMPS (07) - HYDRAULICS

1

413-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

1шт.

2

413-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

1шт.

2

413-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

1шт.

3

86593204

HOSE CLIP

Tab, Mount

1шт.

4

86593203

HOSE CLIP

Plastic

1шт.

5

86563607

INSULATOR

1шт.

6

86563519

CLAMP

Tube, 3/4"

1шт.

7

232-4146

NUT,3/8"-16, GC

1шт.

8

413-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

1шт.

9

790242

COVER

Plate

1шт.

10

86563609

CLAMP

Tube

1шт.

11

433-632

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 2", Gr 5

1шт.

12

495-21044

WASHER,3/8"

1шт.

13

280736

NUT,5/16"-18, GC

1шт.

14

413-540

BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 5

1шт.

15

413-564

BOLT,Hex, 5/16" - 18 x 4", Gr 5

HH, G5, 5/16"-18 x 4"

1шт.

16

86564909

WASHER

1шт.

17

86564908

BOLT

Twin Stacking

1шт.

18

413-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

1шт.

18

413-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

1шт.
