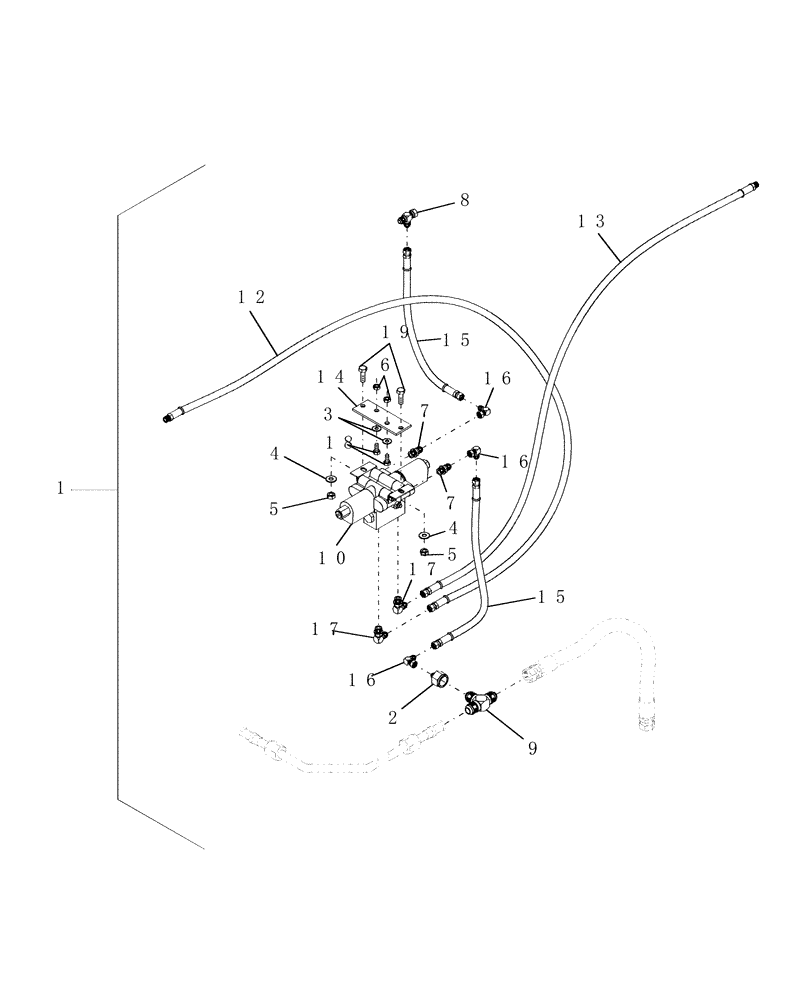

Запчасти Case IH DHX211 (7.11) - HOSE KIT, FORE/AFT, GLEANER (07) - HYDRAULICS

1

86606559

HOSE KIT

Fore/Aft, Gleaner

1шт.

2

86563543

ADAPTER

6MJ x 12FJ

1шт.

3

495-21038

WASHER,5/16"

2шт.

4

495-21044

WASHER,3/8"

2шт.

5

232-4146

NUT,3/8"-16, GC

2шт.

6

232-4145

LOCK NUT,5/16"-18, GC

2шт.

7

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

3/8"

2шт.

8

218-5222

TEE,37 Degree, 9/16"-18, x 9/16"-18, Fem Sw Run

1шт.

9

218-596

TEE,1 1/16"-12 37 Degree

Tee-12, 37Union

1шт.

10

86566523

HYDRAULIC VALVE

1шт.

11

86566524

HYDRAULIC HOSE,0.75" ID x 30.00"

2шт.

12

86566416

HYDRAULIC HOSE,6.35 mm ID x 863.30 mm

1шт.

13

86606904

HYDRAULIC HOSE,6.35 mm ID x 3657.60 mm

1шт.

14

86566525

PLATE

Clamp

1шт.

15

86566524

HYDRAULIC HOSE,0.75" ID x 30.00"

2шт.

16

218-980

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree Fem Sw

3шт.

17

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

90°, Male, 37° Flare, Male, Includes: O-Ring, 3/8" Tube, Includes: O-Ring

2шт.

18

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

19

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

7

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

2шт.

17

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

2шт.
