Запчасти Case IH DHX211 (7.10[1]) - FORE/AFT, 18 TO 30 FT, FROM PIN K01 2002 (07) - HYDRAULICS

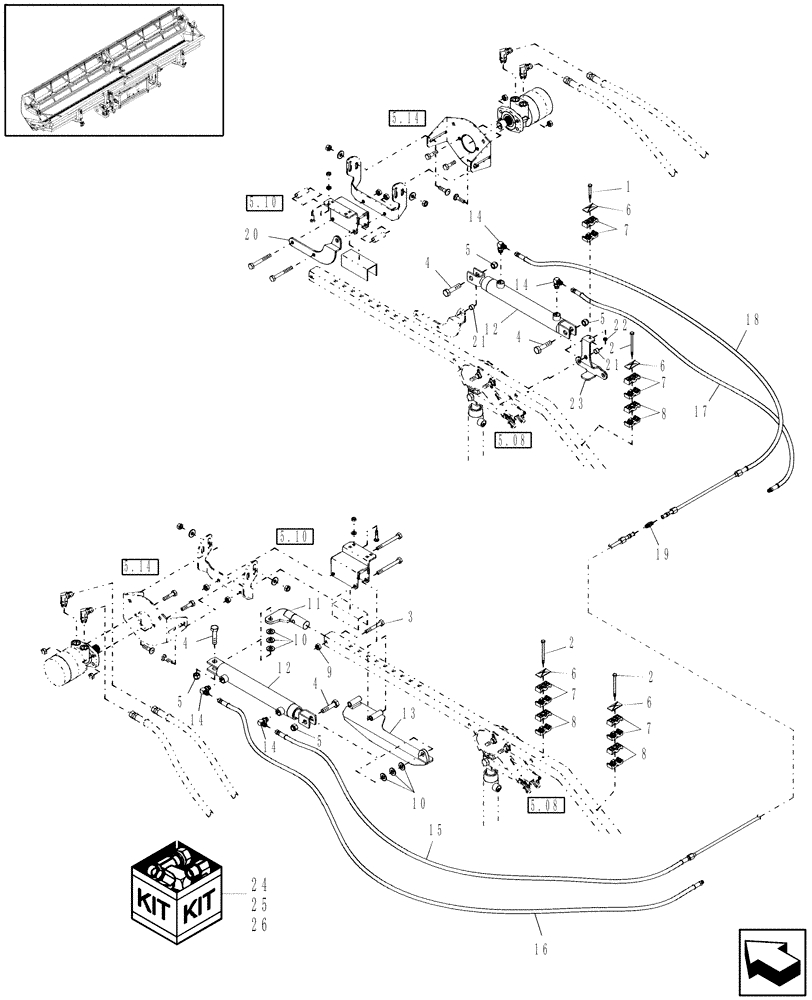

Схема запчастей Case IH DHX211 - (7.10[1]) - FORE/AFT, 18 TO 30 FT, FROM PIN K01 2002 (07) - HYDRAULICS
8
2
14
5.14
6
10
1
6
7
14
8
2
15
6
8
5.08
10
12
16
23
12
5.10
4
14
7
18
5.10
5
6
13
11
5.08
3
7
5.14
21
5
5
4
19
26
7
21
4
9
4
2
17
22
25
24
5
14
20

Артикул

Название

Примечание

Количество

1

413-540

BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 5

1шт.

2

413-564

BOLT,Hex, 5/16" - 18 x 4", Gr 5

Cap, HH, G5, 5/16"-18 x 4"

3шт.

3

413-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5

Cap, HH, G5, 1/2"-13 x 2-1/2"

1шт.

4

413-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5

Cap, HH, G5, 5/8"-11 x 2-1/4"

4шт.

5

231-14110

LOCK NUT,5/8"-11, GB

4шт.

6

790242

COVER

4шт.

7

86563609

CLAMP

Tube

8шт.

8

790240

CLAMP

Half

6шт.

9

232-4148

NUT,1/2"-13, GC

1шт.

10

495-11066

WASHER,5/8", SAE

6шт.

11

87019683

LUG

Front, F/A

1шт.

12

87551260

HYDRAULIC CYLINDER,Double Acting, 406.4mm Stroke

Cylinder, Hydraulic, See Also Ref 24 & 26

2шт.

13

87019682

LUG

Rear, F/A

1шт.

14

218-5283

ELBOW,90 Degree, 7/16"-20, 37 Degree x 9/16"-18, O-Ring

90°, 37°/O-Ring

4шт.

14

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

4шт.

15

87019391

HOSE,6.35 mm ID x 1676.40 mm

1шт.

16

86561669

HYDRAULIC HOSE,6.35 mm ID x 2133.60 mm

1шт.

17

87019680

HOSE,6.35 mm ID x 863.60 mm

1шт.

18

87019681

HOSE,6.35 mm ID x 1270.00 mm

1шт.

19

86563528

HYD CONNECTOR

25 & 30 FT Only

1шт.

20

87019633

LUG

Front, F/A

1шт.

21

86561940

SPACER

F/A

2шт.

22

232-4145

LOCK NUT,5/16"-18, GC

1шт.

23

87019390

LUG

Rear, F/A

1шт.

24

87553545

SEAL KIT

Kit, Seal; Services Ref 12, See Figure Note

1шт.

25

W0

ORDER WHOLEGOODS

Hydraulic Reel Fore/Aft Kit, 18 To 30 Ft.; Includes: Fig.'s 3.03[1], 7.10[1], & 7.11

1шт.

26

87553549

SEAL KIT

Kit, Piston & Seal; Services Ref. 12, See Figure Note

1шт.

Выбрано товаров: 27
