Запчасти Case IH DHX211 (7.09A[1]) - STEEL LINES, DOUBLE KNIFE DRIVE (07) - HYDRAULICS

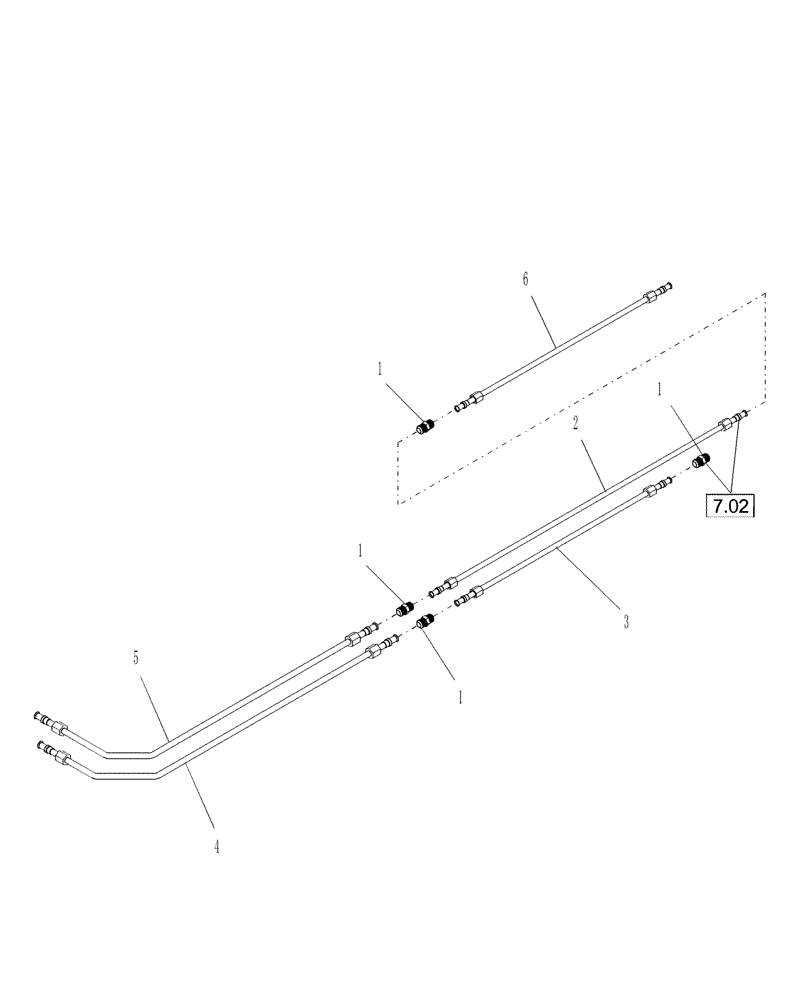

Схема запчастей Case IH DHX211 - (7.09A[1]) - STEEL LINES, DOUBLE KNIFE DRIVE (07) - HYDRAULICS
4
1
1
5
3
2
6
1
1

Артикул

Название

Примечание

Количество

1

86563521

HYD CONNECTOR

Nipple, 12MJO x 12MJO

3шт.

2

87030029

HYD TUBE,0.75" DIA x 216" L

21FT, Double Knife Drive, 3/4" x 216"

1шт.

2

86597892

HYD TUBE,0.75" DIA x 240" L

25FT, Double Knife Drive, 3/4" x 240"

1шт.

2

86597358

HYD TUBE

3/4" x 187", 30FT, Double Knife Drive

1шт.

Prior To PIN K01 2003

1шт.

2

87052678

HYD TUBE,0.75" DIA x 28" L

3/4" x 28", 30FT, Double Knife Drive

1шт.

From PIN K01 2003

1шт.

3

87030028

HYD TUBE,0.75" DIA x 169" L

21FT, Double Knife Drive

1шт.

3

87015275

HYD TUBE,0.75" DIA x 192" L

25FT, Double Knife Drive

1шт.

3

86597359

HYD TUBE

3/4" x 142", 30FT, Double Knife Drive

1шт.

Prior To PIN K01 2003

1шт.

3

87342648

3/4" x 223", 30FT, Double Knife Drive

1шт.

From PIN K01 2003

1шт.

4

87030027

HYD TUBE,0.75" OD x 44" L

21 & 25FT, Double Knife Drive, 3/4" x 44"

1шт.

4

86593219

HYD TUBE

3/4" x 125", 30FT, Double Knife Drive

1шт.

5

87030027

HYD TUBE,0.75" OD x 44" L

21 & 25FT, Double Knife Drive, 3/4" x 44"

1шт.

5

86593220

HYD TUBE

3/4" x 126", 30FT, Double Knife Drive

1шт.

6

86597892

HYD TUBE,0.75" DIA x 240" L

30FT, Double Knife Drive, 3/4" x 240"

1шт.

From PIN K01 2003

1шт.

Выбрано товаров: 19
