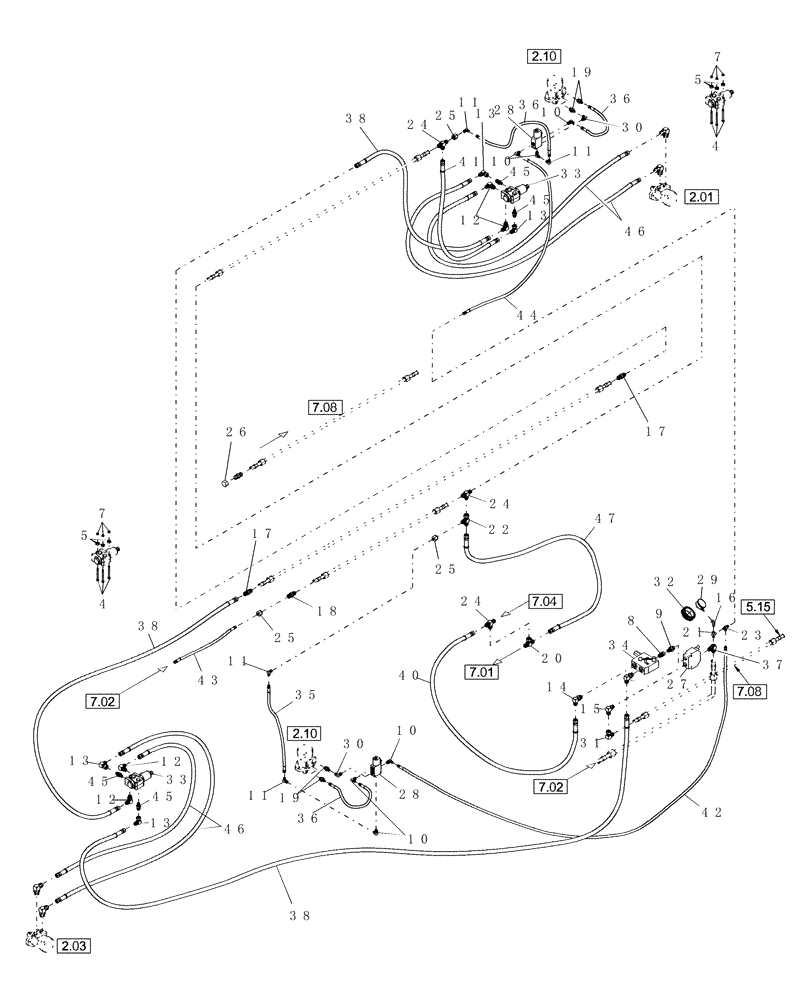

Запчасти Case IH DHX211 (7.07[2]) - HYDRAULICS, DOUBLE SWATH, 21 FT (07) - HYDRAULICS

1

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

1шт.

2

413-436

BOLT,Hex, 1/4" - 20 x 2-1/4", Gr 5

1шт.

3

413-440

BOLT,Hex, 1/4" - 20 x 2-1/2", Gr 5

1шт.

4

413-556

BOLT,Hex, 5/16" - 18 x 3-1/2", Gr 5

HH, 5/16 NC x 3-1/2"

6шт.

5

425-108

NUT,1/2" - 13, Gr 5

6шт.

6

231-5344

FLANGE NUT,Flg, 1/4"-20

3шт.

7

231-5345

FLANGE NUT,Flg, 5/16"-18

Lock, Flg, G5, 5/16"-18

6шт.

8

86563540

ADAPTER

Swivel, 10MB x 10FJX

1шт.

9

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

Male, 7/8"-14, Flare x 7/8"-14; Includes: O-Ring

1шт.

9

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

10

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

90°, 37°, O-Ring, 3/8" Tube; Includes: O-Ring

6шт.

11

218-980

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree Fem Sw

4шт.

12

218-5120

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 1-1/16" - 12 Male ORB

3/4", 37° Flare, 90°, Straight Thread O-Ring; Includes O-Ring

4шт.

12

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

4шт.

13

218-5232

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree Fem Sw

-10 90°, 7/8"-14 Flare Male x Swivel Flare Female

4шт.

14

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

Incl. O-Ring

2шт.

14

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

2шт.

15

218-5123

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

Elbow, 90°, 12 x 10, 37° x OR; Includes: O-Ring

1шт.

15

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

16

217-1085

ELBOW,45 Degree, 1/4"-18 Female x 1/4"-18 Male

1шт.

17

86563542

HYD CONNECTOR

10MJO X 12MJO

2шт.

18

86563521

HYD CONNECTOR

1шт.

19

218-5354

HYD CONNECTOR,9/16"-18, 37 Degree x 7/8"-14, O-Ring

10, Includes O-Ring

4шт.

19

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

4шт.

20

218-837

TEE,37 Degree, 1 1/16"-12 x 1 1/16"-12, Fem Sw Br

Connector, 12, 37°, 37° Swivel

1шт.

21

86566528

3 WAY CONNECTION

4MP x 4FP x 4FP

1шт.

22

218-5221

TEE,37 Degree, 1 1/16"-12 x 1 1/16"-12, Fem Sw Run

1шт.

23

86639967

TEE

4MP x 6MJ x 6MJ

1шт.

24

218-596

TEE,1 1/16"-12 37 Degree

Connector, Tee-12, 37 Union

3шт.

25

86563543

ADAPTER

6MJ x 12FJ

3шт.

26

219606

CAP,1-1/16" - 12 JIC

1шт.

27

86563544

DIVIDER

Flow, RD510

1шт.

28

86593460

DIVIDER

Flow

2шт.

29

86563546

GAUGE

Pressure

1шт.

30

87046618

ELBOW

Swivel

2шт.

31

86595627

ELBOW

90°, 12MJO-12FJ SW

1шт.

32

87033323

COVER

1шт.

33

87046543

VALVE

1шт.

34

87051017

FLOW DIVIDER

Valve, 10 GPM

1шт.

35

87050564

HYDRAULIC HOSE,0.38" ID x 20.00"

1шт.

36

86593472

HOSE

3шт.

37

86563548

ELBOW

1шт.

38

86563549

HYDRAULIC HOSE,0.50" ID x 22.00"

3шт.

39

86593486

MOUNTING PLATE

1шт.

40

87050565

HYDRAULIC HOSE,0.50" ID x 22.00"

1шт.

41

87045083

HYDRAULIC HOSE,14.00"

1шт.

42

87050567

HYDRAULIC HOSE,0.38" ID x 40.00"

1шт.

43

87015267

HOSE,6.35 mm ID x 2336.80 mm

Knife Drain

1шт.

44

87046539

HYDRAULIC HOSE,0.38" ID x 124.00"

1шт.

45

87046541

FITTING

Nipple, 8MB - 10MJ

4шт.

46

87050568

HYDRAULIC HOSE,0.50" ID x 100.00"

4шт.

47

87050569

HYDRAULIC HOSE,0.50" ID x 29.00"

1шт.

10

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6шт.
