Запчасти Case IH DHX211 (7.05) - HYDRAULICS, STANDARD, 18 FT & 21 FT (07) - HYDRAULICS

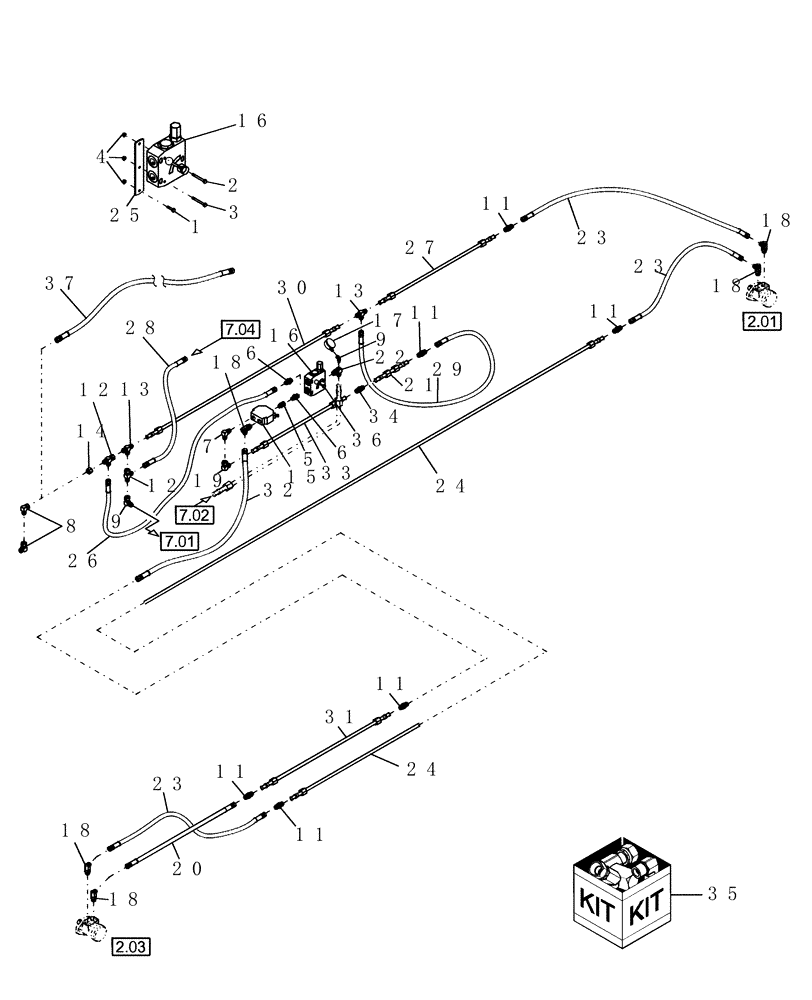

Схема запчастей Case IH DHX211 - (7.05) - HYDRAULICS, STANDARD, 18 FT & 21 FT (07) - HYDRAULICS
30
13
12
18
13
9
37
11
25
21
4
11
31
6
9
14
23
18
18
35
33
11
6
24
1
32
28
17
15
18
3
27
2
11
11
19
16
16
24
23
26
23
7
5
18
34
20
8
22
36
29
11
12

Артикул

Название

Примечание

Количество

1

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

1шт.

2

413-436

BOLT,Hex, 1/4" - 20 x 2-1/4", Gr 5

1шт.

3

413-440

BOLT,Hex, 1/4" - 20 x 2-1/2", Gr 5

1шт.

4

231-5344

FLANGE NUT,Flg, 1/4"-20

1шт.

5

86563540

ADAPTER

1шт.

6

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

2шт.

7

218-5123

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

Elbow, 90°, -12-10, 37-OR

1шт.

8

218-980

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree Fem Sw

18' Only

2шт.

9

218-5231

ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree Fem Sw

1шт.

10

217-1085

ELBOW,45 Degree, 1/4"-18 Female x 1/4"-18 Male

1шт.

11

86563542

HYD CONNECTOR

Nipple, 10MJO/12MJO

6шт.

12

218-5221

TEE,37 Degree, 1 1/16"-12 x 1 1/16"-12, Fem Sw Run

2шт.

13

218-596

TEE,1 1/16"-12 37 Degree

Connector, Tee-12, 37 Union

2шт.

14

86563543

ADAPTER

6MJ x 12FJ

1шт.

15

86563544

DIVIDER

Flow

1шт.

16

86563545

CONTROL UNIT

Flow

1шт.

17

86563546

GAUGE

Pressure

1шт.

18

218-5137

ELBOW,45 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

10MB x 10MJ

5шт.

19

86595627

ELBOW

90°, 12MJO-12FJ SW

1шт.

20

86578667

HYDRAULIC HOSE,0.50" ID x 48.00"

18 Ft

1шт.

Ref 20 runs from Ref 18 on motor to Ref 18 at the flow divider on 18 FT headers.

1шт.

20

86563549

HYDRAULIC HOSE,0.50" ID x 22.00"

1шт.

21

86624878

HYD TUBE,0.75" DIA x 10" L

1шт.

Prior To PIN E01 2003

1шт.

22

86563548

ELBOW

C/W, Hole for gauge

1шт.

23

86563549

HYDRAULIC HOSE,0.50" ID x 22.00"

1шт.

24

86593940

HYD TUBE

3/4" x 196", 18 Ft

1шт.

24

86563688

HYD TUBE,0.75" DIA x 236" L

3/4" x 236", 21 Ft

1шт.

25

86593486

MOUNTING PLATE

1шт.

26

86563552

HYDRAULIC HOSE,12.70 mm ID x 660.40 mm

1шт.

27

86593941

HYD TUBE

18 Ft

1шт.

27

86578668

HYD TUBE,0.75" DIA x 72.00" L

21 Ft

1шт.

28

86593478

HOSE

1шт.

29

86563686

HYDRAULIC HOSE,12.70 mm ID x 762.00 mm

1шт.

Prior To PIN E01 2003

1шт.

29

219606

CAP,1-1/16" - 12 JIC

3шт.

From PIN E01 2003

1шт.

30

86563690

HYD TUBE,0.75" DIA x 125" L

3/4" x 125"

1шт.

31

86563687

HYD TUBE,0.75" DIA x 26" L

21 Ft, 3/4" x 26"

1шт.

32

86563549

HYDRAULIC HOSE,0.50" ID x 22.00"

1шт.

33

86624876

HYD TUBE,0.75" DIA x 114" L

1шт.

Prior To PIN E01 2003

1шт.

34

86563521

HYD CONNECTOR

1шт.

35

86566363

SEAL KIT

For Ref.16

1шт.

36

86566364

HANDLE

w/ Knob

1шт.

37

87025540

HOSE,72.00"

1шт.

Выбрано товаров: 46
