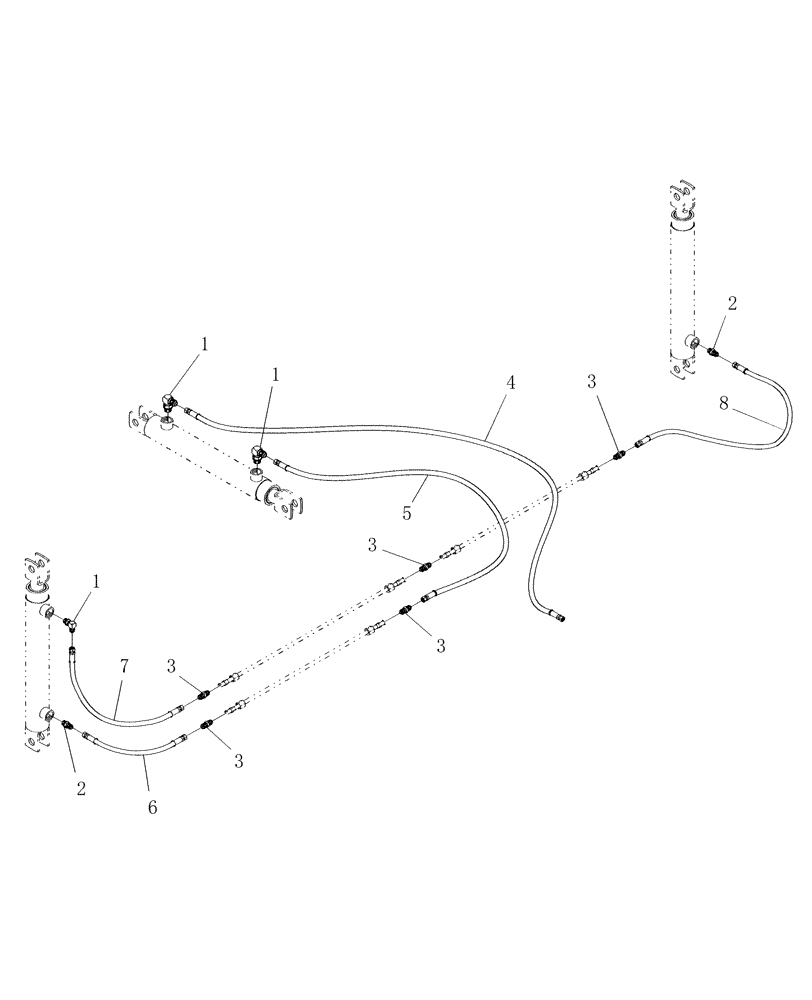

Запчасти Case IH DHX211 (7.03[2]) - HOSES, REEL LIFT, FROM PIN K01 2001 (07) - HYDRAULICS

1

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

90°, 37°, O-Ring, 3/8" Tube; Includes: O-Ring

3шт.

2

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

2шт.

3

86563528

HYD CONNECTOR

5шт.

4

86563824

HYDRAULIC HOSE,9.65 mm ID x 3911.60 mm

1шт.

5

86900178

HYDRAULIC HOSE,0.38" ID x 50.00"

1шт.

6

86599675

HYDRAULIC HOSE

1шт.

7

87015358

HYDRAULIC HOSE,6.35 mm ID x 1016.00 mm

1шт.

8

86566524

HYDRAULIC HOSE,0.75" ID x 30.00"

1шт.

1

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

3шт.

2

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

2шт.
