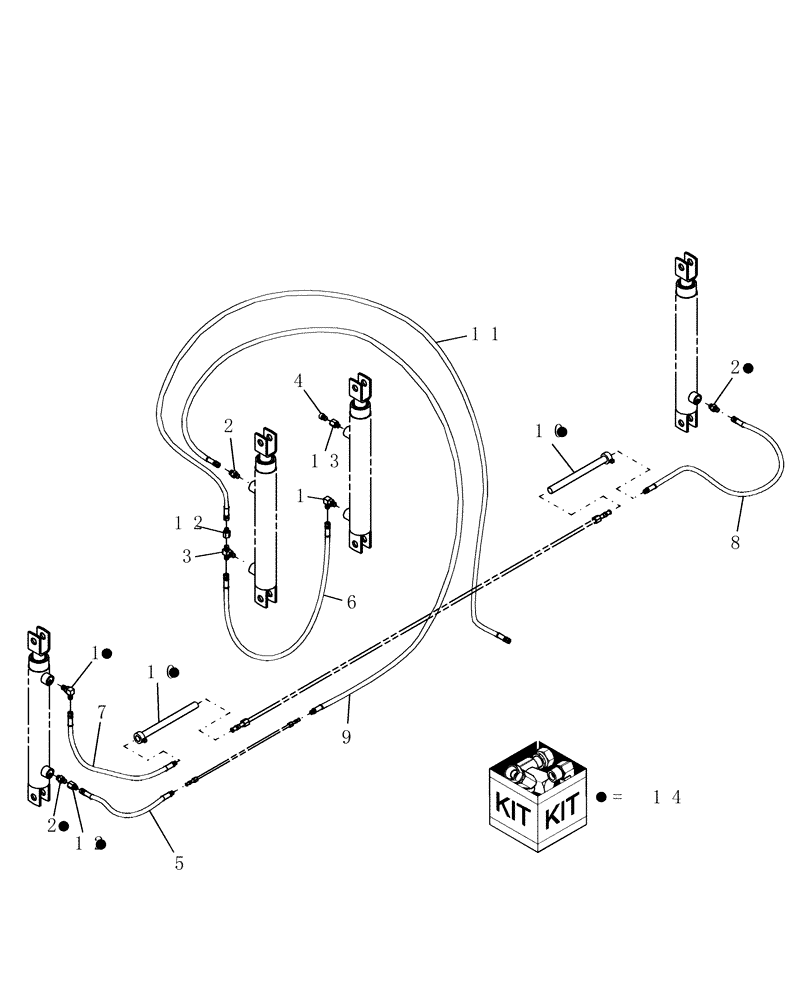

Запчасти Case IH DHX211 (7.03[1]) - HOSES, REEL LIFT, PRIOR TO PIN K01 2001 (07) - HYDRAULICS

1

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

90°, Male 37° FL - Male, w/O-Ring, 3/8" Tube

2шт.

2

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

3шт.

3

218-5182

TEE,9/16" - 18 Male JIC x 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

36 FT

1шт.

4

86563808

PLUG

Vent, Breather, 36 FT

1шт.

5

86563560

HYDRAULIC HOSE,9.65 mm ID x 762.00 mm

1шт.

BSN G05 2001

1шт.

5

86599675

HYDRAULIC HOSE

1шт.

ASN G06 2001

1шт.

6

86563810

HOSE

1шт.

7

86563561

HYDRAULIC HOSE,6.35 mm ID x 838.20 mm

1шт.

BSN G05 2001

1шт.

7

87015358

HYDRAULIC HOSE,6.35 mm ID x 1016.00 mm

1шт.

ASN G06 2001

1шт.

8

86563566

HYDRAULIC HOSE,6.35 mm ID x 609.60 mm

1шт.

BSN G05 2001

1шт.

8

86566524

HYDRAULIC HOSE,0.75" ID x 30.00"

1шт.

ASN G06 2001

1шт.

9

86563826

HYDRAULIC HOSE,9.65 mm ID x 1270.00 mm

1шт.

BSN G05 2001

1шт.

9

86900178

HYDRAULIC HOSE,0.38" ID x 50.00"

36 FT

1шт.

ASN G06 2001

1шт.

9

86563528

HYD CONNECTOR

1шт.

ASN G06 2001

1шт.

Not Shown

1шт.

10

86561085

ADAPTER

Bulkhead Assembly, Bundy Flex

2шт.

BSN G05 2001

1шт.

10

86563528

HYD CONNECTOR

1шт.

ASN G06 2001

1шт.

Not Shown

1шт.

11

86563824

HYDRAULIC HOSE,9.65 mm ID x 3911.60 mm

1шт.

12

86595672

ORIFICE

0.06", 18 to 36 FT

1шт.

13

86603172

ELEC CONNECTOR

6MB x 4FP, 36 FT

1шт.

14

86640873

KIT

Includes: Ref. 1 (1), Ref. 2 (2), Ref. 10, 86563528, (4), & Ref. 12 (1)

1шт.
