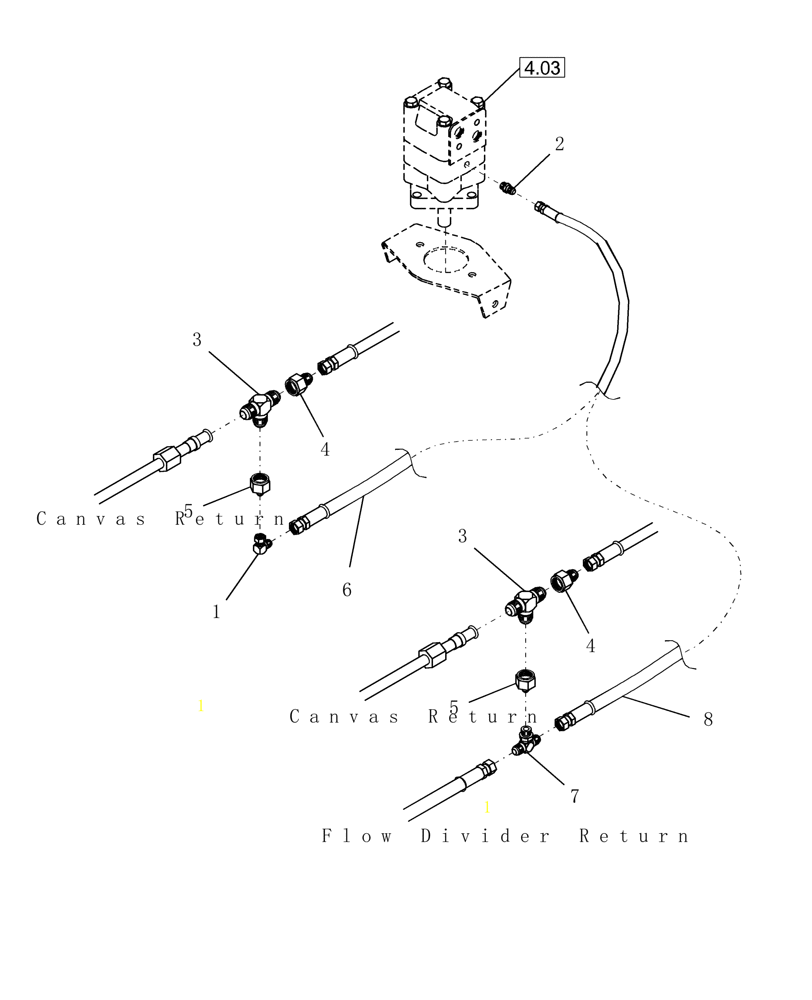

Запчасти Case IH DHX211 (7.02[2]) - DOUBLE KNIFE DRAIN (07) - HYDRAULICS

1

86629586

90 ELBOW,9/16" - 18 JIC x 9/16" - 18 Fem Sw

1шт.

2

218-5053

HYD CONNECTOR,7/16" - 20 JIC x 7/16" - 20 ORB

1шт.

3

218-596

TEE,1 1/16"-12 37 Degree

1шт.

4

84989617

HYD CONNECTOR,1"-14 ORFS x 1-3/16"-12 Fem ORFS

1шт.

5

86563543

ADAPTER

6MJ x 12FJ

1шт.

6

87052183

HOSE ASSY.

1/4" x 62"

1шт.

7

86513014

TEE,9/16" - 18 JIC x 9/16" - 18 JIC x 9/16" - 18 JIC

1шт.

Prior To PIN K01 2003

1шт.

7

129274

TEE,9/16" - 18 JIC x 9/16" - 18 JIC x 9/16" - 18 JIC

1шт.

From PIN K01 2003

1шт.

8

87025522

HOSE,120.00"

1шт.

8

87015362

HOSE,6.35 mm ID x 3759.20 mm

1шт.
