Запчасти Case IH DHX211 (7.02[1]) - HOSES, KNIFE DRIVE (07) - HYDRAULICS

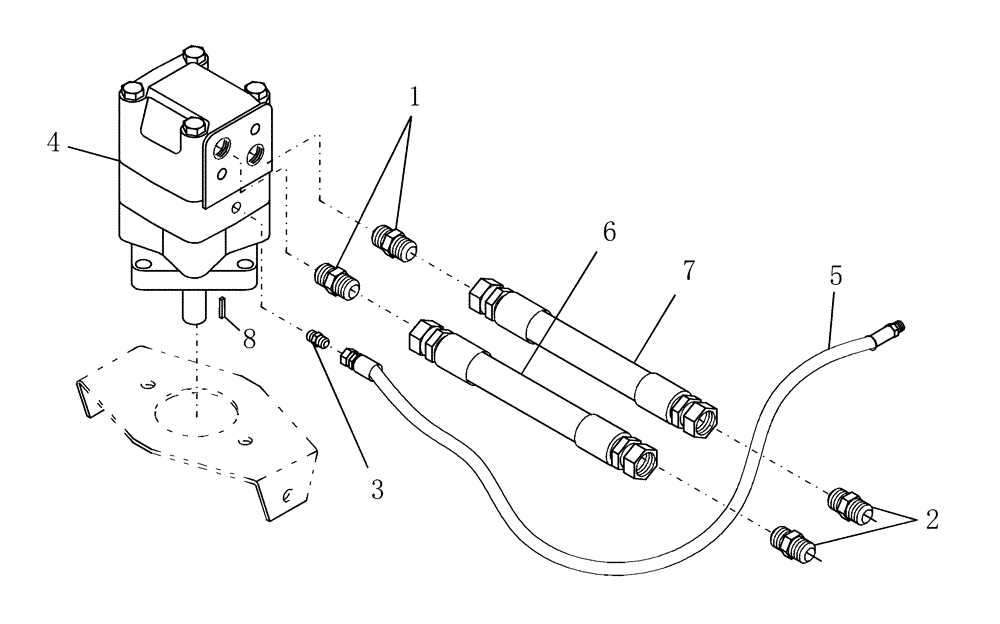

Схема запчастей Case IH DHX211 - (7.02[1]) - HOSES, KNIFE DRIVE (07) - HYDRAULICS
1
6
7
2
5
8
3
4

Артикул

Название

Примечание

Количество

1

218-5065

HYD CONNECTOR,1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

12-10 37-OR, Single Drive

2шт.

1

218-5065

HYD CONNECTOR,1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

12-10 37-OR, Double Drive

4шт.

2

86563521

HYD CONNECTOR

Nipple, Single Drive

2шт.

2

86563521

HYD CONNECTOR

Nipple, Double Drive

4шт.

3

218-5053

HYD CONNECTOR,7/16" - 20 JIC x 7/16" - 20 ORB

4

1шт.

4

86561040

HYDRAULIC MOTOR

100cc, Single Drive

1шт.

4

86561040

HYDRAULIC MOTOR

100cc, Double Drive

2шт.

4a

86566357

SEAL KIT

For Drive

1шт.

5

86563557

HYDRAULIC HOSE,6.35 mm ID x 1574.80 mm

1шт.

6

86563558

HYDRAULIC HOSE,19.05 mm ID x 482.60 mm

Single Drive

1шт.

6

86563558

HYDRAULIC HOSE,19.05 mm ID x 482.60 mm

Double Drive

2шт.

7

86563559

HYDRAULIC HOSE,0.75" ID x 19.00"

Single Drive

1шт.

7

86563559

HYDRAULIC HOSE,0.75" ID x 19.00"

Double Drive

2шт.

8

87482

KEY

Sq, 5/16" x 1-1/4"

1шт.

Выбрано товаров: 14
