Запчасти Case IH DHX211 (7.01[3.2]) - HYDRAULIC SUPPLY & RETURN, FROM PIN K01 2003, WDX1701 (07) - HYDRAULICS

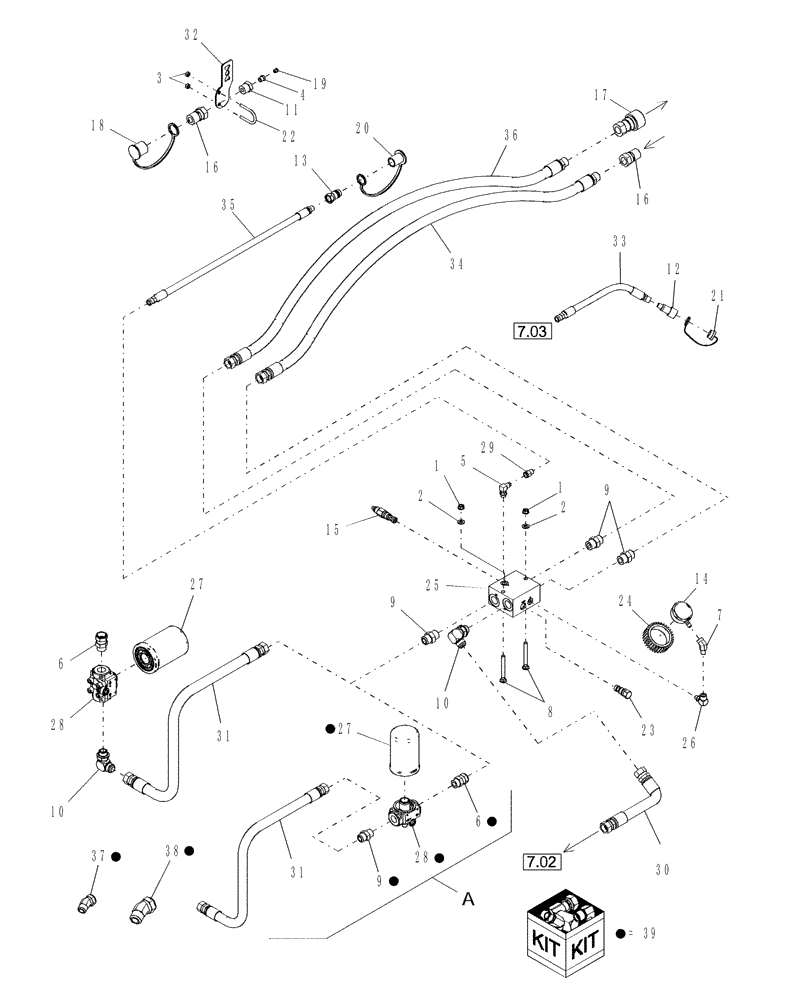

Схема запчастей Case IH DHX211 - (7.01[3.2]) - HYDRAULIC SUPPLY & RETURN, FROM PIN K01 2003, WDX1701 (07) - HYDRAULICS
36
33
13
30
9
5
31
8
31
1
22
27
9
37
15
12
17
25
10
6
16
27
2
32
29
16
18
3
2
6
34
24
10
7
28
28
4
23
11
26
9
21
38
14
35
19
20
1

Артикул

Название

Примечание

Количество

1

231-5346

FLANGE NUT,Flg, 3/8"-16

GF

2шт.

2

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

2шт.

3

232-4145

LOCK NUT,5/16"-18, GC

2шт.

4

126787

REDUCER

1шт.

5

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

90°, 37°, O-Ring, 3/8" Tube; Includes: O-Ring

1шт.

D Port

1шт.

5

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

6

86595712

ADAPTER

Swivel

1шт.

7

217-1085

ELBOW,45 Degree, 1/4"-18 Female x 1/4"-18 Male

1шт.

8

413-656

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5

Cap, HH, G5, 3/8"-16 x 3-1/2"

1шт.

9

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

1шт.

10

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

Incl. O-Ring

2шт.

M1 Port

1шт.

10

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

2шт.

11

686790

REDUCER

1шт.

12

173593

COUPLING

1шт.

13

86564905

COUPLING

Quick, 1/2"M

1шт.

14

86563546

GAUGE

Pressure, LF, 0 - 3000

1шт.

15

87050597

CARTRIDGE

Relief, 2800 PSI

1шт.

RDDA Port

1шт.

16

86595685

COUPLING

Quick, 3/4" Male

2шт.

17

86595686

COUPLING

Quick, 3/4" Female

1шт.

18

86595689

CAP

Quick, 3/4" Male, Cap

1шт.

19

86566120

PLUG

Vent, 1/8"

1шт.

20

86564910

DUST CAP

1шт.

21

86593463

COUPLING

1шт.

22

86639715

U-BOLT

1шт.

23

87033208

CHECK VALVE

1шт.

CXDA Port

1шт.

24

87033323

COVER

1шт.

25

87050599

MANIFOLD

Rlf/Chk

1шт.

26

87050594

ELBOW

1шт.

G Port

1шт.

27

87050598

HYDRAULIC OIL FILTER

Oil, 5" 10HMK

1шт.

28

87051949

HYDRAULIC OIL FILTER

Housing

1шт.

29

86595672

ORIFICE

.06"

1шт.

30

86565912

HYDRAULIC HOSE,0.75" ID x 34.00"

1шт.

30

87050656

HYDRAULIC HOSE,0.75" ID x 26.00"

1шт.

DHX181

1шт.

31

87050566

HYDRAULIC HOSE,0.75" ID x 44.00"

1шт.

32

86639710

MOUNTING PLATE

1шт.

33

87042442

HYDRAULIC HOSE,0.38" ID x 96.00"

1шт.

34

87038906

HYDRAULIC HOSE,0.75" ID x 106.00"

1шт.

35

87042445

HYDRAULIC HOSE,0.38" ID x 76.00"

1шт.

36

87042441

HYDRAULIC HOSE,0.75" ID x 106.00"

1шт.

37

86512959

45 ELBOW,45 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree Fem Sw

45°, 37° Flare x Swivel-06

1шт.

38

219605

ELBOW,45 Degree, 1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree Fem Sw

45°, 37° Flare x Swivel-12

1шт.

39

87624251

KIT

Filter Assembly WInstructions

1шт.

Выбрано товаров: 48
