Запчасти Case IH DHX211 (7.01[3.1]) - HYDRAULIC SUPPLY & RETURN, FROM PIN K01 2003, WDX901 & WDX1101 (07) - HYDRAULICS

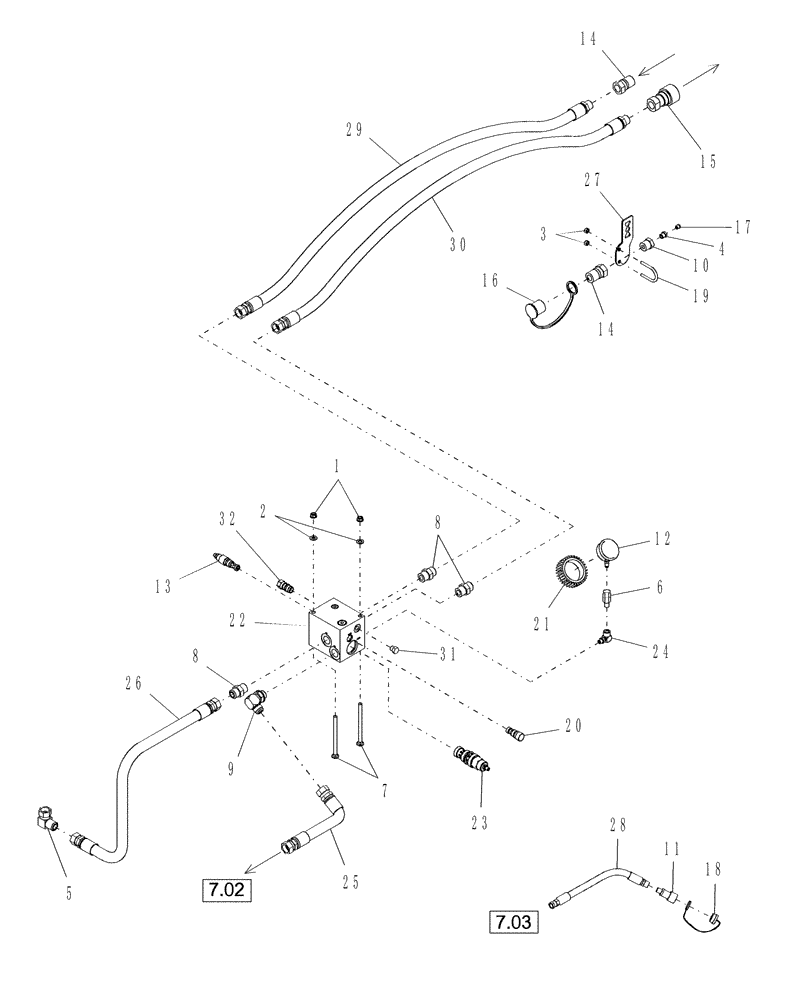

Схема запчастей Case IH DHX211 - (7.01[3.1]) - HYDRAULIC SUPPLY & RETURN, FROM PIN K01 2003, WDX901 & WDX1101 (07) - HYDRAULICS
10
12
28
5
14
9
21
3
11
32
4
22
13
8
25
23
16
7
2
6
1
17
20
18
30
27
14
24
19
26
31
29
8
15

Артикул

Название

Примечание

Количество

1

231-5346

FLANGE NUT,Flg, 3/8"-16

GF

2шт.

2

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

2шт.

3

232-4145

LOCK NUT,5/16"-18, GC

2шт.

4

126787

REDUCER

1шт.

5

219603

90 ELBOW,1-1/16" - 12 JIC x 1-1/16" - 12, 37 Degree Fem Sw

1шт.

Not used W/21FT Double Swath

1шт.

6

217-1085

ELBOW,45 Degree, 1/4"-18 Female x 1/4"-18 Male

1шт.

7

413-656

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5

Cap, HH, G5, 3/8"-16 x 3-1/2"

2шт.

8

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

3шт.

9

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

Incl. O-Ring

1шт.

M1 Port

1шт.

9

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

10

686790

REDUCER

1шт.

11

173593

COUPLING

1шт.

12

86563546

GAUGE

1шт.

13

87050597

CARTRIDGE

Relief, 2800 PSI

1шт.

RDDA Port

1шт.

14

86595685

COUPLING

2шт.

15

86595686

COUPLING

1шт.

16

86595689

CAP

1шт.

17

86566120

PLUG

1шт.

18

86593463

COUPLING

1шт.

19

86639715

U-BOLT

1шт.

20

87033208

CHECK VALVE

1шт.

CXDA Port

1шт.

21

87033323

COVER

1шт.

22

87393341

MANIFOLD

Manifold, Rlf/Chk/Flwcnt

1шт.

23

87050595

FLOW DIVIDER

Valve, Flow Control, 16.5 GPM

1шт.

HXBA Port

1шт.

24

87050594

ELBOW

1шт.

G Port

1шт.

25

86565912

HYDRAULIC HOSE,0.75" ID x 34.00"

1шт.

25

87050656

HYDRAULIC HOSE,0.75" ID x 26.00"

1шт.

18 FT

1шт.

26

87050566

HYDRAULIC HOSE,0.75" ID x 44.00"

1шт.

27

86639710

MOUNTING PLATE

1шт.

28

87042442

HYDRAULIC HOSE,0.38" ID x 96.00"

1шт.

29

87038906

HYDRAULIC HOSE,0.75" ID x 106.00"

1шт.

30

87042441

HYDRAULIC HOSE,0.75" ID x 106.00"

1шт.

31

9843614

PLUG

3/8"

1шт.

32

87056836

PLUG

1шт.
