Запчасти Case IH DHX211 (7.01[2.2]) - HYDRAULIC SUPPLY & RETURN, BTWN PIN K01 2002 & K01 2003, WDX1701 (07) - HYDRAULICS

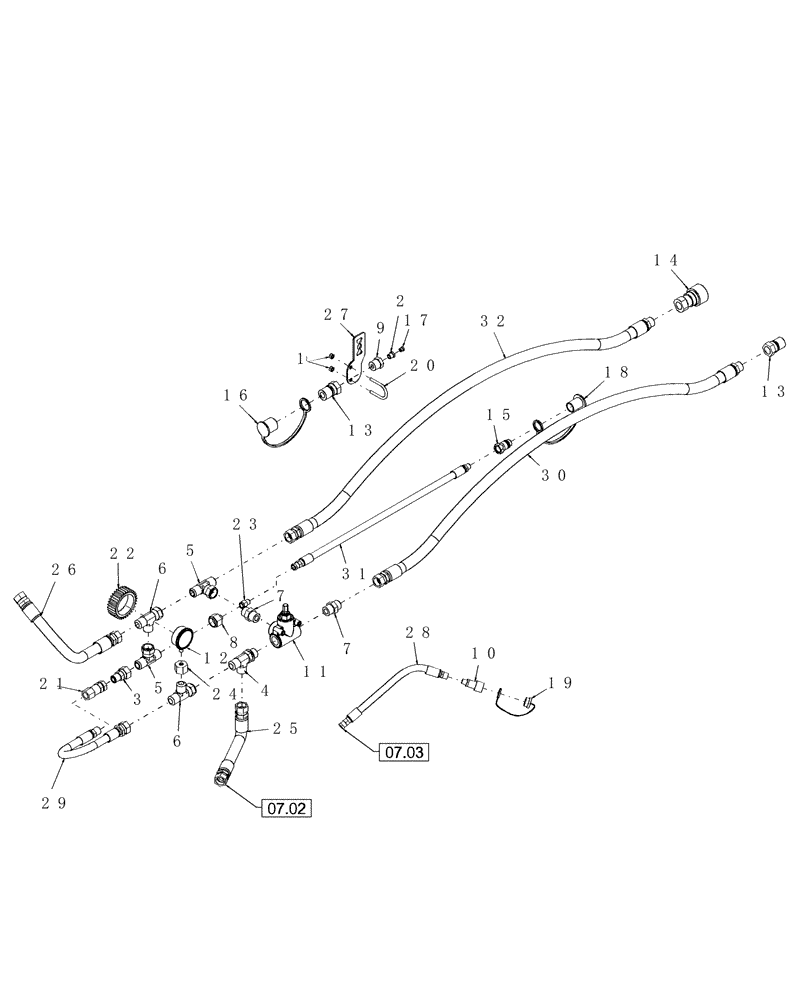

Схема запчастей Case IH DHX211 - (7.01[2.2]) - HYDRAULIC SUPPLY & RETURN, BTWN PIN K01 2002 & K01 2003, WDX1701 (07) - HYDRAULICS
14
13
2
6
12
1
5
19
29
10
7
16
7
9
5
8
1
27
21
20
22
25
31
23
4
17
26
18
6
13
32
28
3
30
24
15
11

Артикул

Название

Примечание

Количество

1

232-4145

LOCK NUT,5/16"-18, GC

2шт.

2

221-84

REDUCER,Hex, 1/4" x 1/8" NPT

1шт.

3

86620127

FITTING

1шт.

4

86641940

TEE

1шт.

5

86513017

TEE,37 Degree, 1 1/16"-12 x 1 1/16"-12, Fem Sw Br

2шт.

6

218-5221

TEE,37 Degree, 1 1/16"-12 x 1 1/16"-12, Fem Sw Run

2шт.

7

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

Incl. O-Ring

2шт.

7

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

2шт.

8

86563543

ADAPTER

6MJ x 12FJ

1шт.

9

686790

REDUCER

1шт.

10

173593

COUPLING

1шт.

11

86566113

VALVE PRESSURE RELIE

1шт.

12

86563546

GAUGE

1шт.

13

86595685

COUPLING

3/4" M

2шт.

14

86595686

COUPLING

3/4" F

1шт.

15

86564905

COUPLING

1/2" M

1шт.

16

86595689

CAP

Cap, 3/4" M

1шт.

17

86566120

PLUG

1шт.

18

86564910

DUST CAP

1/2" M

1шт.

19

86593463

COUPLING

1шт.

20

86639715

U-BOLT

1шт.

21

87042446

VALVE

Check

1шт.

22

87033323

COVER

Gauge

1шт.

23

86595672

ORIFICE

.06"

1шт.

24

86595710

COUPLING

Pressure Gauge Mount

1шт.

25

86565912

HYDRAULIC HOSE,0.75" ID x 34.00"

1шт.

26

87042443

HYDRAULIC HOSE,0.75" ID x 36.00"

1шт.

27

86639710

MOUNTING PLATE

RH

1шт.

28

87042442

HYDRAULIC HOSE,0.38" ID x 96.00"

1шт.

29

87038889

HYDRAULIC HOSE,0.50" ID x 14.00"

1шт.

30

87038906

HYDRAULIC HOSE,0.75" ID x 106.00"

1шт.

31

87042445

HYDRAULIC HOSE,0.38" ID x 76.00"

1шт.

32

87042441

HYDRAULIC HOSE,0.75" ID x 106.00"

1шт.

Выбрано товаров: 33
