Запчасти Case IH DHX211 (7.01[2.1]) - HYDRAULIC SUPPLY & RETURN, BTWN PIN K01 2002 & K01 2003 , WDX901 & WDX1101 (07) - HYDRAULICS

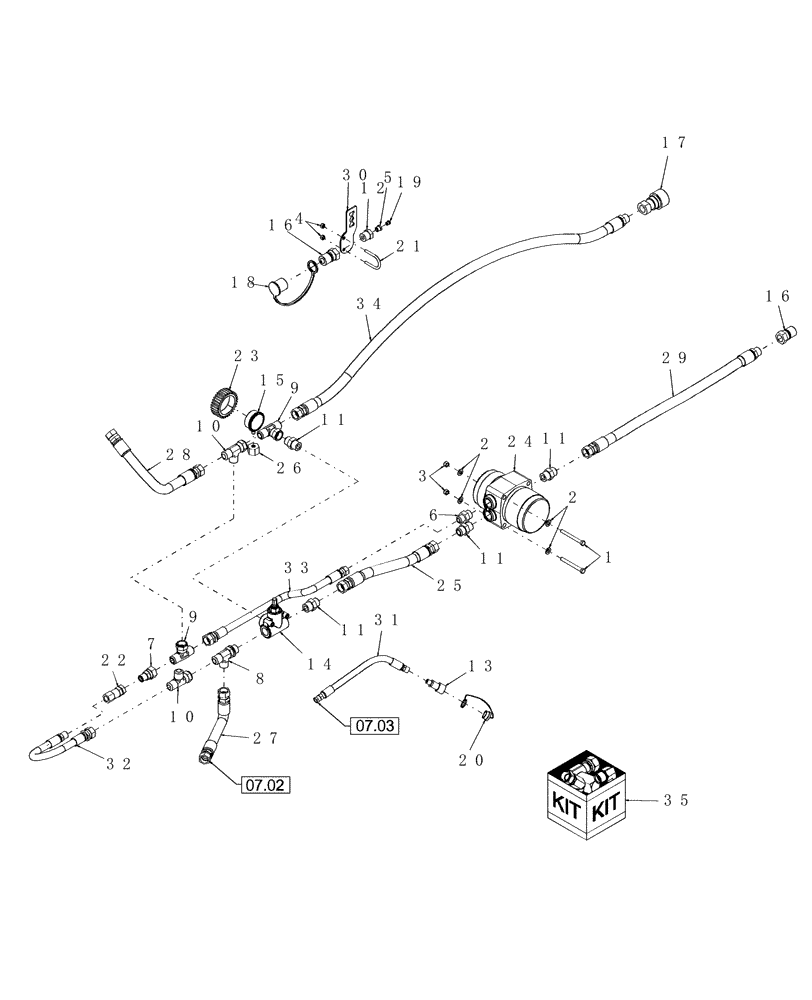

Схема запчастей Case IH DHX211 - (7.01[2.1]) - HYDRAULIC SUPPLY & RETURN, BTWN PIN K01 2002 & K01 2003 , WDX901 & WDX1101 (07) - HYDRAULICS
10
13
29
34
14
11
1
16
22
2
12
30
9
9
26
4
6
11
27
33
25
15
5
7
31
21
17
8
11
18
16
2
3
32
10
19
20
11
35
24
23
28

Артикул

Название

Примечание

Количество

1

413-656

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5

2шт.

2

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

4шт.

3

231-4146

NUT,3/8"-16, GB

2шт.

4

232-4145

LOCK NUT,5/16"-18, GC

2шт.

5

221-84

REDUCER,Hex, 1/4" x 1/8" NPT

1шт.

6

218-5063

HYD CONNECTOR,7/8" - 14 Male JIC x 1-1/16" - 12 Male ORB

Includes: O-Ring

1шт.

6

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

7

86620127

FITTING

1шт.

8

86641940

TEE

1шт.

9

218-837

TEE,37 Degree, 1 1/16"-12 x 1 1/16"-12, Fem Sw Br

2шт.

10

218-5221

TEE,37 Degree, 1 1/16"-12 x 1 1/16"-12, Fem Sw Run

2шт.

11

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

Incl. O-Ring

4шт.

11

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

4шт.

12

686790

REDUCER

1шт.

13

173593

COUPLING

1шт.

14

86566113

VALVE PRESSURE RELIE

1шт.

15

86563546

GAUGE

1шт.

16

86595685

COUPLING

3/4" Male

2шт.

17

86595686

COUPLING

3/4" Female

1шт.

18

86595689

CAP

Cap, 3/4" Male

1шт.

19

86566120

PLUG

1шт.

20

86593463

COUPLING

1шт.

21

86639715

U-BOLT

1шт.

22

87042446

VALVE

Check

1шт.

23

87033323

COVER

Gauge

1шт.

24

87038851

DIVIDER

Flow; See Also: Ref. 35

1шт.

25

87042444

HYDRAULIC HOSE,0.75" ID x 32.00"

1шт.

26

86595710

COUPLING

Pressure Gauge Mount

1шт.

27

86565912

HYDRAULIC HOSE,0.75" ID x 34.00"

1шт.

28

87042443

HYDRAULIC HOSE,0.75" ID x 36.00"

1шт.

29

86592562

HOSE

HH12

1шт.

30

86639710

MOUNTING PLATE

RH

1шт.

31

87042442

HYDRAULIC HOSE,0.38" ID x 96.00"

1шт.

32

87038889

HYDRAULIC HOSE,0.50" ID x 14.00"

1шт.

33

87038888

HYDRAULIC HOSE,0.50" ID x 38.00"

1шт.

34

87042441

HYDRAULIC HOSE,0.75" ID x 106.00"

1шт.

35

87038852

SEAL KIT

Kit; Services Ref. 24

1шт.

Выбрано товаров: 37
