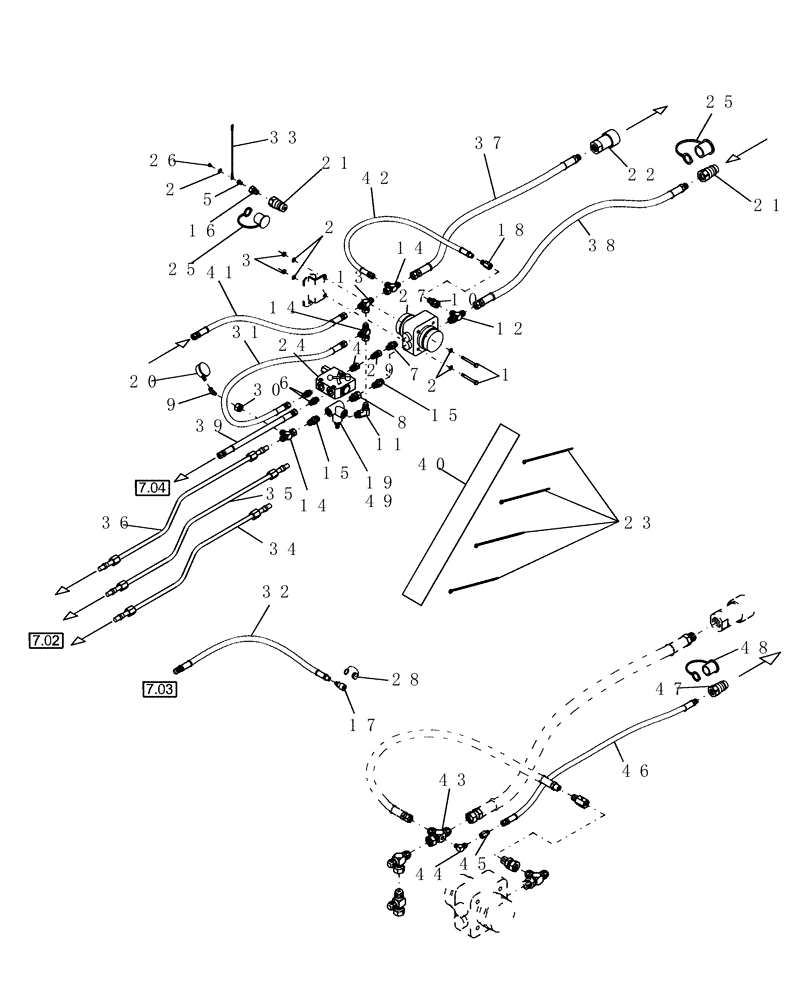

Запчасти Case IH DHX211 (7.01[1]) - HYDRAULIC SUPPLY & RETURN, PRIOR TO PIN K01 2002 (07) - HYDRAULICS

1

413-656

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5

Cap, HH, G5, 3/8"-16 x 3-1/2"

2шт.

2

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

5шт.

3

232-4146

NUT,3/8"-16, GC

2шт.

4

86563540

ADAPTER

1шт.

5

221-84

REDUCER,Hex, 1/4" x 1/8" NPT

Threaded, 1/4" x 1/8"

1шт.

6

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

2шт.

7

218-5063

HYD CONNECTOR,7/8" - 14 Male JIC x 1-1/16" - 12 Male ORB

10 x 12, 37° x OR

1шт.

8

86595712

ADAPTER

Swivel

1шт.

9

217-1085

ELBOW,45 Degree, 1/4"-18 Female x 1/4"-18 Male

1шт.

10

86620127

FITTING

1шт.

11

218-5138

ELBOW,45 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

Elbow

1шт.

12

86641940

TEE

12MB x12MJ x 12MJ

1шт.

13

218-837

TEE,37 Degree, 1 1/16"-12 x 1 1/16"-12, Fem Sw Br

Connector, 12, 37°, 37° Swivel

1шт.

14

218-5221

TEE,37 Degree, 1 1/16"-12 x 1 1/16"-12, Fem Sw Run

3шт.

15

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

Adapter

2шт.

16

686790

REDUCER

1шт.

17

173593

COUPLING

1шт.

18

86563642

HYDRAULIC VALVE

Check

1шт.

19

86566113

VALVE PRESSURE RELIE

1шт.

20

86563546

GAUGE

Pressure

1шт.

21

86595685

COUPLING

Quick, 3/4"M

2шт.

22

86595686

COUPLING

Quick, 3/4"F

1шт.

23

263117

CABLE TIE,292.1mm L, Nylon, Black

CABLE STRAP

4шт.

24

86595713

CONTROL VALVE

Flow

1шт.

25

86595689

CAP

Quick, 3/4"M, Cap

2шт.

26

86566120

PLUG

Vent, 1/8"

1шт.

27

86595708

DIVIDER

Flow

1шт.

28

86593463

COUPLING

Quick

1шт.

29

86595709

ADAPTER

Swivel

1шт.

30

86595710

COUPLING

Pressure Gauge Mount

1шт.

31

86594343

HOSE

HH08

1шт.

32

86593477

HOSE

1шт.

33

86566740

CABLE

1шт.

34

86640114

HYD TUBE,0.75" DIA x 51.00" L

1шт.

HDX181

1шт.

Prior To Pin K01 2001

1шт.

34

87046420

HYD TUBE,0.75" DIA x 52" L

Tube, Hyd

1шт.

HDX181

1шт.

Btwn PIN K01 2001 & K01 2002

1шт.

35

86640252

HYD TUBE

1шт.

HDX361

1шт.

Prior To Pin K01 2001

1шт.

35

87046415

HYD TUBE,0.75" DIA x 58" L

Tube, Hyd

1шт.

HDX361

1шт.

Btwn PIN K01 2001 & K01 2002

1шт.

36

86594705

HYD TUBE

1шт.

HDX211 Thru HDX301

1шт.

Prior To Pin K01 2001

1шт.

36

87046415

HYD TUBE,0.75" DIA x 58" L

Tube, Hyd

1шт.

HDX211 Thru HDX301

1шт.

Btwn PIN K01 2001 & K01 2002

1шт.

37

86592564

HOSE

HH12

1шт.

38

86592562

HOSE

HH12

1шт.

39

86592545

HOSE

HH08

1шт.

Prior To Pin K01 2001

1шт.

39

86592545

HOSE

HH08

1шт.

HDX211 Thru HDX301

1шт.

Btwn PIN K01 2001 & K01 2002

1шт.

39

86563552

HYDRAULIC HOSE,12.70 mm ID x 660.40 mm

See Also Ref. 50

1шт.

HDX181

1шт.

Btwn PIN K01 2001 & K01 2002

1шт.

40

86592561

SLEEVE

1шт.

41

86592600

HOSE

HH12

1шт.

42

86640253

FLEXIBLE HOSE

1шт.

43

86633249

3 WAY CONNECTION

With Gauge Hole, WDX1701

1шт.

44

218-483

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 1/4" - 18 Male NPTF

Elbow, 90°, 6, 37° x NP, WDX1701

1шт.

45

86595672

ORIFICE

0.06", WDX1701

1шт.

46

86619932

HOSE

To WDX1701 Drain Line

1шт.

47

86564905

COUPLING

Quick, 1/2", WDX1701

1шт.

48

86564910

DUST CAP

1/2"M, WDX1701

1шт.

49

86566840

CARTRIDGE

Relief, For Ref. 19

1шт.

50

219603

90 ELBOW,1-1/16" - 12 JIC x 1-1/16" - 12, 37 Degree Fem Sw

Used w/Ref. 39, 86563552 Only

2шт.

Not Shown

1шт.

HDX181

1шт.

Btwn PIN K01 2001 & K01 2002

1шт.
