Запчасти Case IH DHX211 (5.15) - REEL DRIVE FLOW CONTROL VALVE, FROM PIN K01 2002 (07) - HYDRAULICS

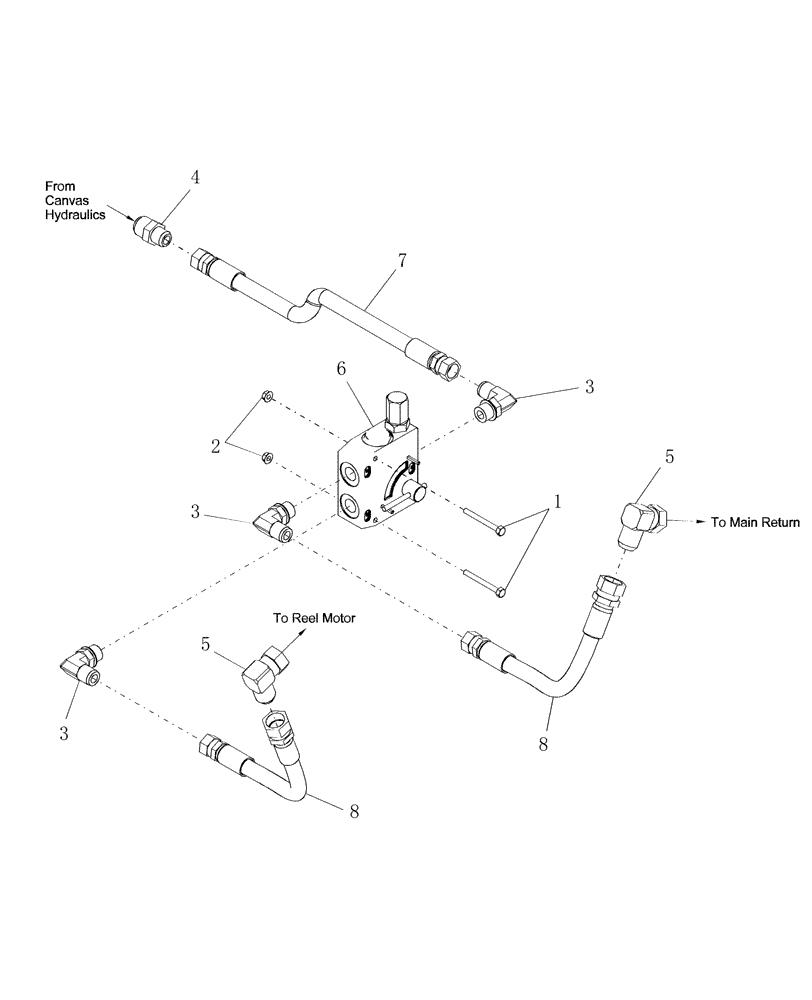

Схема запчастей Case IH DHX211 - (5.15) - REEL DRIVE FLOW CONTROL VALVE, FROM PIN K01 2002 (07) - HYDRAULICS
3
5
8
5
1
2
6
4
8
7
3
3

Артикул

Название

Примечание

Количество

1

413-440

BOLT,Hex, 1/4" - 20 x 2-1/2", Gr 5

2шт.

2

231-5344

FLANGE NUT,Flg, 1/4"-20

2шт.

3

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

5/8" Incl. O-Ring

3шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

3шт.

4

86563542

HYD CONNECTOR

10MJO/12MJO

1шт.

5

86595627

ELBOW

90°, 12MJO-12FJ SW

2шт.

6

87042501

CONTROL

Draper Flow, 20 GPM

1шт.

7

86593466

HOSE

1шт.

8

87045083

HYDRAULIC HOSE,14.00"

2шт.

Выбрано товаров: 9
